A Novel Air-Flow Electrospinning Setup for Controlling Fiber Distribution and Morphology

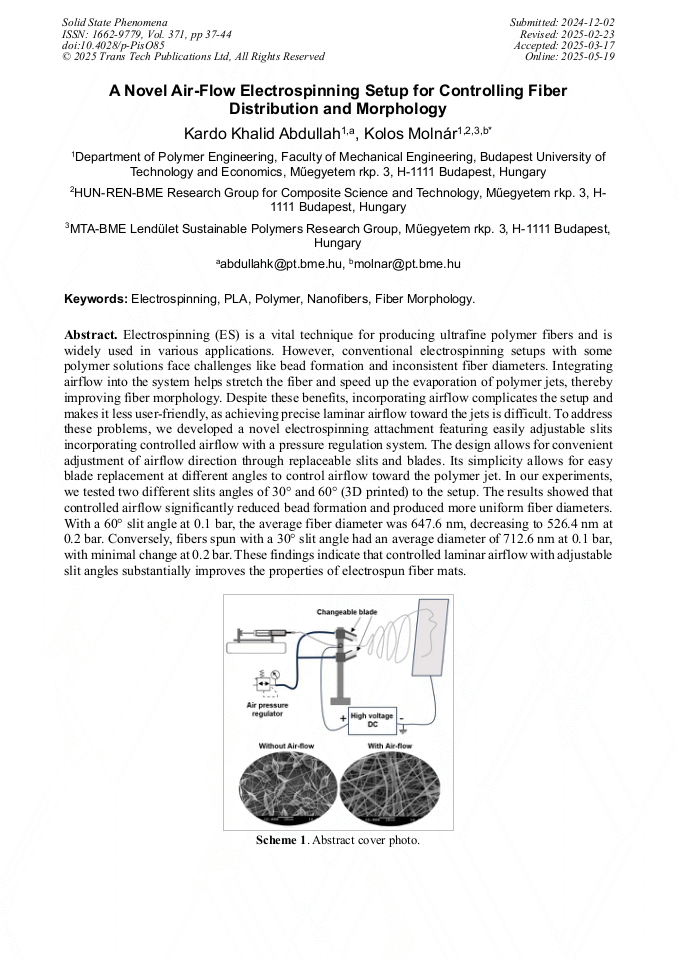

Article Preview

Abstract:

Electrospinning (ES) is a vital technique for producing ultrafine polymer fibers and is widely used in various applications. However, conventional electrospinning setups with some polymer solutions face challenges like bead formation and inconsistent fiber diameters. Integrating airflow into the system helps stretch the fiber and speed up the evaporation of polymer jets, thereby improving fiber morphology. Despite these benefits, incorporating airflow complicates the setup and makes it less user-friendly, as achieving precise laminar airflow toward the jets is difficult. To address these problems, we developed a novel electrospinning attachment featuring easily adjustable slits incorporating controlled airflow with a pressure regulation system. The design allows for convenient adjustment of airflow direction through replaceable slits and blades. Its simplicity allows for easy blade replacement at different angles to control airflow toward the polymer jet. In our experiments, we tested two different slits angles of 30° and 60° (3D printed) to the setup. The results showed that controlled airflow significantly reduced bead formation and produced more uniform fiber diameters. With a 60° slit angle at 0.1 bar, the average fiber diameter was 647.6 nm, decreasing to 526.4 nm at 0.2 bar. Conversely, fibers spun with a 30° slit angle had an average diameter of 712.6 nm at 0.1 bar, with minimal change at 0.2 bar. These findings indicate that controlled laminar airflow with adjustable slit angles substantially improves the properties of electrospun fiber mats.

You might also be interested in these eBooks
The 10th International Scientific Conference on Advances in Mechanical Engineering (ISCAME) View Preview
Solid Electrolytes, Polymers, Composites and Surface Treatments View Preview

Info:

Periodical:

Solid State Phenomena (Volume 371)

Pages:

37-44

DOI:

https://doi.org/10.4028/p-PisO85

Citation:

Cite this paper

Online since:

May 2025

Authors:

Kardo Khalid Abdullah, Kolos Molnár*

Keywords:

Electrospinning, Fiber Morphology, Nanofibers, PLA, Polymer

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2025 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author
