Enhancing Cryogenic Strength of Austenitic Stainless Steels through Thermo-Mechanical Controlled Processing and Nitrogen Alloying

Article Preview

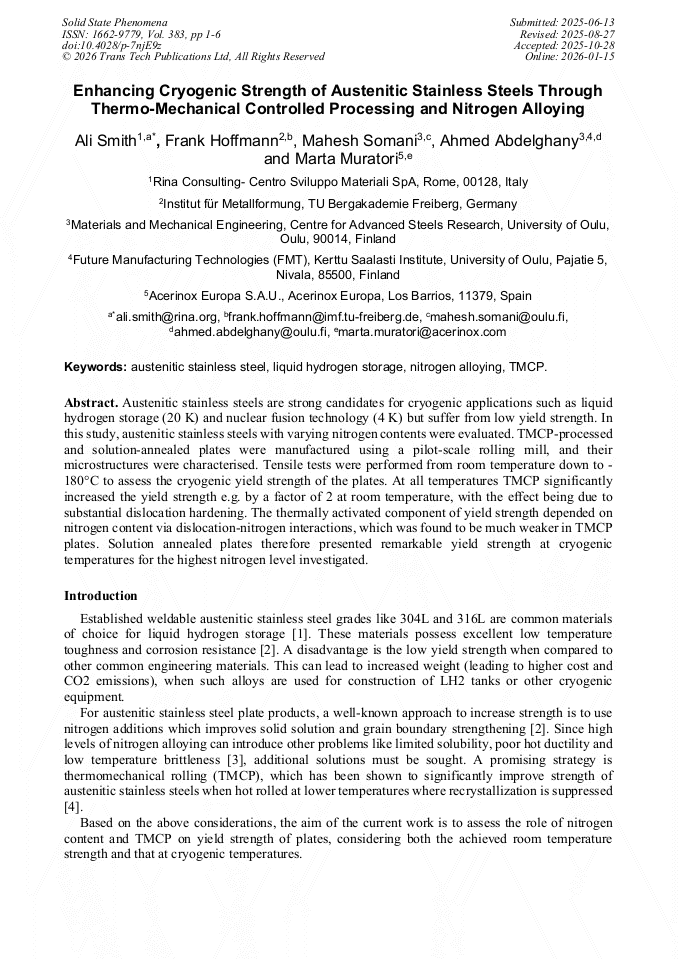

Abstract:

Austenitic stainless steels are strong candidates for cryogenic applications such as liquid hydrogen storage (20 K) and nuclear fusion technology (4 K) but suffer from low yield strength. In this study, austenitic stainless steels with varying nitrogen contents were evaluated. TMCP-processed and solution-annealed plates were manufactured using a pilot-scale rolling mill, and their microstructures were characterised. Tensile tests were performed from room temperature down to-180°C to assess the cryogenic yield strength of the plates. At all temperatures TMCP significantly increased the yield strength e.g. by a factor of 2 at room temperature, with the effect being mainly due to substantial dislocation hardening. The thermally activated component of yield strength depended mainly on nitrogen content via dislocation-nitrogen interactions, which was found to be much weaker in TMCP plates. Solution annealed plates therefore presented remarkable yield strength at cryogenic temperatures for the highest nitrogen level investigated.

You might also be interested in these eBooks

Info:

Periodical:

Solid State Phenomena (Volume 383)

Pages:

1-6

Citation:

Online since:

January 2026

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] NASA Standard NSS 1740.16, Safety Standard for Hydrogen and Hydrogen Systems, National Aeronautics and Space Administration, Washington DC, 1997.

Google Scholar

[2] T. Maki, Stainless Steel: Progress in Thermomechanical Treatment, Curr. Opin. Solid State Mater. Sci. 2 (1997) 290-295.

Google Scholar

[3] K. Lo, C.H. Shek, J.K.L. Lai, Recent Developments in Stainless Steels, Mater. Sci. Eng. R 65 (2009) 39-104.

Google Scholar

[4] S. Yamamoto, H. Yokoyama, T. Abe, and Y. Kobayashi, Strengthening of Austenitic Stainless Steels by Thermo-Mechanical Control Process, Tetsu-to-Hagane 79 (1993) 524-530.

DOI: 10.2355/tetsutohagane1955.79.4_524

Google Scholar

[5] P. Guiraldenq, O.H. Duparc, The Genesis of the Schaeffler Diagram in the History of Stainless Steel, Metall. Res. Technol. 114 613 (2017).

DOI: 10.1051/metal/2017059

Google Scholar

[6] R.L. Tobler, R.P. Reed, D.S. Burkhalter, Temperature Dependence of Yielding in Austenitic Stainless Steels, in A.F. Clark, R.P. Reed (Eds.), Advances in Cryogenic Engineering Materials, Plenum Press, New York, 1980, pp.107-119.

DOI: 10.1007/978-1-4613-9859-2_11

Google Scholar

[7] M.L.G. Byrnes, M. Grujicic, W.S. Owen, Nitrogen Strengthening of a Stable Austenitic Stainless Steel, Acta. Metall. 35 (1987) 1853-1862.

DOI: 10.1016/0001-6160(87)90131-3

Google Scholar

[8] J. Rawers, M. Grujicic, Effects of Metal Composition and Temperature on the Yield Strength of Nitrogen Strengthened Stainless Steels, Mater. Sci. Eng. A 207 (1996) 188-194.

DOI: 10.1016/0921-5093(95)10031-8

Google Scholar

[9] V.G. Gavriljuk, H. Berns, C. Escher, N.I. Glavatskaya, A. Sozinov, Yu.N. Petrov, Grain Boundary Strengthening in Austenitic Nitrogen Steels, Mater. Sci. Eng. A 271 (1999) 14-21.

DOI: 10.1016/s0921-5093(99)00272-5

Google Scholar

[10] Y. Oka, A. Morimatsu, T. Masumura, T. Ohmura, T. Tsuchiyama, Dependence of Carbon and Nitrogen Content on Grain Refinement Strengthening in Austenitic Stainless Steel", Tetsu-to-Hagané 110 (2024) 302-310.

DOI: 10.2355/tetsutohagane.tetsu-2023-072

Google Scholar
