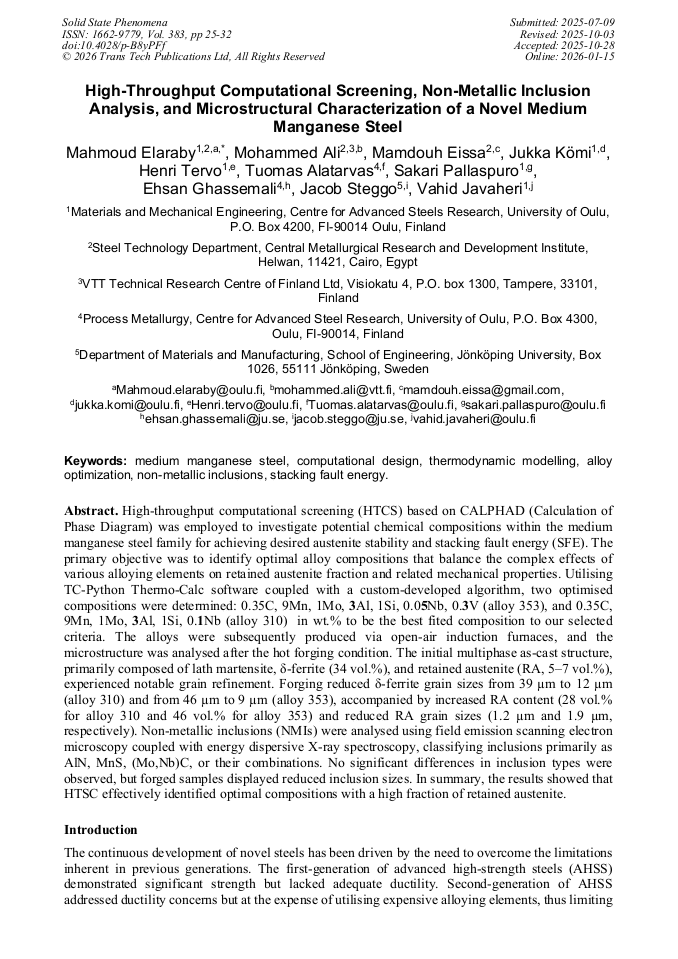

High-Throughput Computational Screening, Non-Metallic Inclusion Analysis, and Microstructural Characterization of a Novel Medium Manganese Steel

Abstract:

High-throughput computational screening (HTCS) based on CALPHAD (Calculation of Phase Diagram) was employed to investigate potential chemical compositions within the medium manganese steel family for achieving desired austenite stability and stacking fault energy (SFE). The primary objective was to identify optimal alloy compositions that balance the complex effects of various alloying elements on retained austenite fraction and related mechanical properties. Utilising TC-Python Thermo-Calc software coupled with a custom-developed algorithm, two optimised compositions were determined: 0.35C, 9Mn, 1Mo, 3Al, 1Si, 0.05Nb, 0.3V (alloy 353), and 0.35C, 9Mn, 1Mo, 3Al, 1Si, 0.1Nb (alloy 310) in wt.% to be the best fited composition to our selected criteria. The alloys were subsequently produced via open-air induction furnaces, and the microstructure was analysed after the hot forging condition. The initial multiphase as-cast structure, primarily composed of lath martensite, δ-ferrite (34 vol.%), and retained austenite (RA, 5–7 vol.%), experienced notable grain refinement. Forging reduced δ-ferrite grain sizes from 39 µm to 12 µm (alloy 310) and from 46 µm to 9 µm (alloy 353), accompanied by increased RA content (28 vol.% for alloy 310 and 46 vol.% for alloy 353) and reduced RA grain sizes (1.2 µm and 1.9 µm, respectively). Non-metallic inclusions (NMIs) were analysed using field emission scanning electron microscopy coupled with energy dispersive X-ray spectroscopy, classifying inclusions primarily as AlN, MnS, (Mo,Nb)C, or their combinations. No significant differences in inclusion types were observed, but forged samples displayed reduced inclusion sizes. In summary, the results showed that HTSC effectively identified optimal compositions with a high fraction of retained austenite.

• Periodical: Solid State Phenomena (Volume 383)
• Pages: 25-32
• DOI: https://doi.org/10.4028/p-B8yPFf
• Online since: January 2026
• Authors: Mahmoud Elaraby*, Mohammed Ali, Mamdouh Eissa, Jukka I. Kömi, Henri Tervo, Tuomas Alatarvas, Sakari Pallaspuro, Ehsan Ghassemali, Jacob Steggo, Vahid Javaheri
• Keywords: Alloy Optimization, Computational Design, Medium Manganese Steel, Non-Metallic Inclusions, Stacking Fault Energy, Thermodynamic Modelling

References

[1] B. Sun, A. Kwiatkowski da Silva, Y. Wu, Y. Ma, H. Chen, C. Scott, D. Ponge, D. Raabe, Physical metallurgy of medium-Mn advanced high-strength steels, Int. Mater. Rev. 68 (2023).

DOI: 10.1080/09506608.2022.2153220

[2] C. Zhao, R. Song, L. Zhang, F. Yang, T. Kang, Effect of annealing temperature on the microstructure and tensile properties of Fe–10Mn–10Al–0.7C low-density steel, Mater. Des. 91 (2016) 348–360.

DOI: 10.1016/j.matdes.2015.11.115

[3] B.C. De Cooman, Y. Estrin, S.K. Kim, Twinning-induced plasticity (TWIP) steels, Acta Mater. 142 (2018) 283–362.

DOI: 10.1016/j.actamat.2017.06.046

[4] M. Koyama, E. Akiyama, Y.K. Lee, D. Raabe, K. Tsuzaki, Overview of hydrogen embrittlement in high-Mn steels, Int. J. of Hydrogen Energy 42 (2017) 12706–12723.

DOI: 10.1016/j.ijhydene.2017.02.214

[5] Y. Luo, H. Lu, N. Min, W. Li, X. Jin, Effect of Mo and Nb on mechanical properties and hydrogen embrittlement of hot-rolled medium-Mn steels, Mater. Sci. Eng. A 844 (2022).

DOI: 10.1016/j.msea.2022.143108

[6] E. Ghassemali, P.L.J. Conway, High-throughput CALPHAD: a powerful tool towards accelerated metallurgy, Front. Mater. 9 (2022) 889771.

DOI: 10.3389/fmats.2022.889771

[7] H. Tervo, A. Kaijalainen, S. Pallaspuro, S. Anttila, S. Mehtonen, D. Porter, J. Kömi, Low-temperature toughness properties of 500 MPa offshore steels and their simulated coarse-grained heat-affected zones, Mater. Sci. Eng. A 773 (2020) 138719.

DOI: 10.1016/j.msea.2019.138719

[8] G.B. Olson, M. Cohen, A general mechanism of martensitic nucleation: Part I. General concepts and the FCC→HCP transformation, Metall. Mater. Trans. A 7 (1976) 1897–1904.

DOI: 10.1007/bf02659822

[9] T. Alatarvas, Evolution of inclusion population in calcium treated ultra-high strength steels: novel applications of sample data treatment, Dissertation, University of Oulu, 2018.

[10] M. Elaraby, M. Ali, M. Eissa, J. Kömi, P. Karjalainen, V. Javaheri, Computational designing approach for medium manganese steels with potential better hydrogen embrittlement resistance, Scand. Simul. Soc. (2025) 228–235.

DOI: 10.3384/ecp212.032

[11] Y.H. Fan, H.L. Zhao, K.R. Weng, C. Ma, H.X. Yang, X.L. Dong, C.W. Guo, Y.G. Li, The role of delta ferrite in hydrogen embrittlement fracture of 17-4 PH stainless steel, Int. J. of Hydrogen Energy 47 (2022) 33883–33890.

DOI: 10.1016/j.ijhydene.2022.07.257

[12] Z. Wang, J. Xu, J. Li, Influence of microstructure on hydrogen embrittlement in hot-rolled medium Mn steels, Mater. Sci. and Eng. A 780 (2020) 139147.

DOI: 10.1016/j.msea.2020.139147

[13] M.Y. Panchenko, E. V. Melnikov, A.S. Mikhno, G.G. Maier, S. V. Astafurov, V.A. Moskvina, K.A. Reunova, N.K. Galchenko, E.G. Astafurova, The influence of intergranular and interphase boundaries and δ-ferrite volume fraction on hydrogen embrittlement of high-nitrogen steel, Int. J. of Hydrogen Energy 46 (2021) 30510–30522.

DOI: 10.1016/j.ijhydene.2021.06.183

[14] Y. Zhang, W. Hui, J. Wang, M. Lei, X. Zhao, Enhancing the resistance to hydrogen embrittlement of Al-containing medium-Mn steel through heavy warm rolling, Scr. Mater. 165 (2019) 15–19.

DOI: 10.1016/j.scriptamat.2019.02.009

[15] F. Nunziata, F.S. Romolo, B. Burnett, L. Manna, S. Orsenigo, M. Donghi, Molybdenum in Gunshot Residue: Experimental Evidences and Detection Challenges in the Presence of Lead and Sulfur, Microsc Microanal 27 (2021) 666–677.

DOI: 10.1017/s1431927621000453

[16] J. Zhang, Z. Zhao, W. Wang, Y. Wang, Comparison of the microstructure of M2 steel fabricated by continuous casting and with a sand mould, Metals (Basel) 9 (2019) 560.

DOI: 10.3390/met9050560

[17] F.G. Wei, K. Tsuzaki, Hydrogen trapping phenomena in martensitic steels, in: Gaseous HE of Materials in Energy Technologies, Woodhead Publishing, 2012: p.493–525.

DOI: 10.1533/9780857093899.3.493

[18] F.S. Pan, W.Q. Wang, A.T. Tang, L.Z. Wu, T.T. Liu, R.J. Cheng, Phase transformation refinement of coarse primary carbides in M2 high speed steel, Prog. Nat. Sci. Mater. Int. 21 (2011) 180–186.

DOI: 10.1016/s1002-0071(12)60053-7
