Multivariate Analysis of Scrap Web Sheared Surface Roughness for Punch Wear Indicators in Sheet-Metal Forming

Article Preview
View Pdf By email

Abstract:

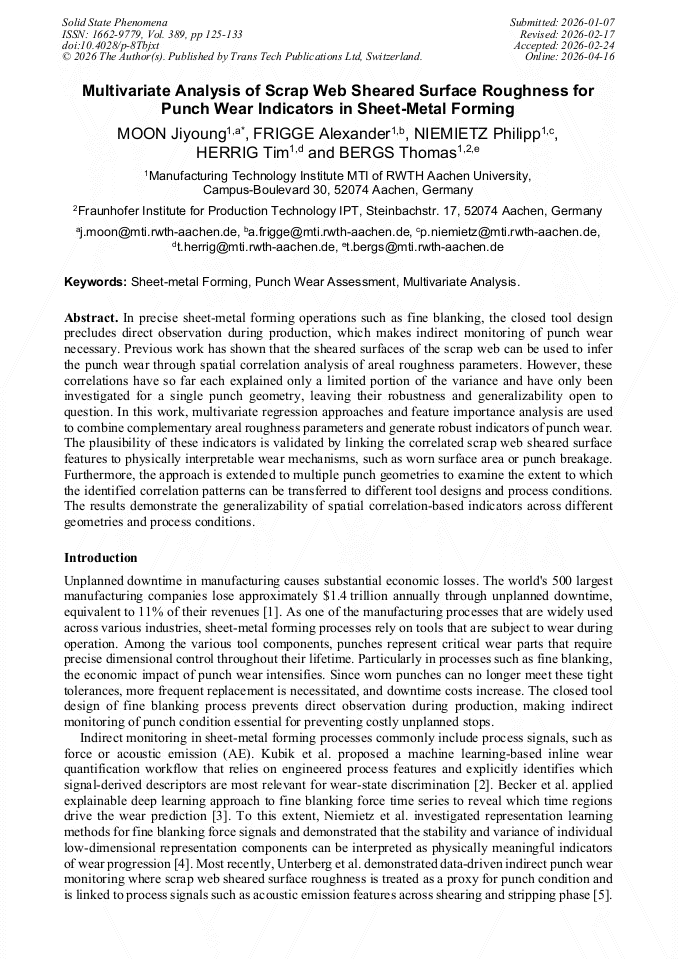

In precise sheet-metal forming operations such as fine blanking, the closed tool design precludes direct observation during production, which makes indirect monitoring of punch wear necessary. Previous work has shown that the sheared surfaces of the scrap web can be used to infer the punch wear through spatial correlation analysis of areal roughness parameters. However, these correlations have so far each explained only a limited portion of the variance and have only been investigated for a single punch geometry, leaving their robustness and generalizability open to question. In this work, multivariate regression approaches and feature importance analysis are used to combine complementary areal roughness parameters and generate robust indicators of punch wear. The plausibility of these indicators is validated by linking the correlated scrap web sheared surface features to physically interpretable wear mechanisms, such as worn surface area or punch breakage. Furthermore, the approach is extended to multiple punch geometries to examine the extent to which the identified correlation patterns can be transferred to different tool designs and process conditions. The results demonstrate the generalizability of spatial correlation-based indicators across different geometries and process conditions.

You have full access to the following eBook
Incremental and Sheet Metal Forming Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 389)

Pages:

125-133

DOI:

https://doi.org/10.4028/p-8Tbjxt

Citation:

Cite this paper

Online since:

April 2026

Authors:

Jiyoung Moon*, Alexander Frigge, Philipp Niemietz, Tim Herrig, Thomas Bergs

Keywords:

Multivariate Analysis, Punch Wear Assessment, Sheet-Metal Forming

Funder:

The publication of this article was funded by the RWTH Aachen University 10.13039/501100007210

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0
