Numerical Investigation and Optimization of Blank-Holder and Magnetorheological Actuators Configurations for Deep Drawing Objectives

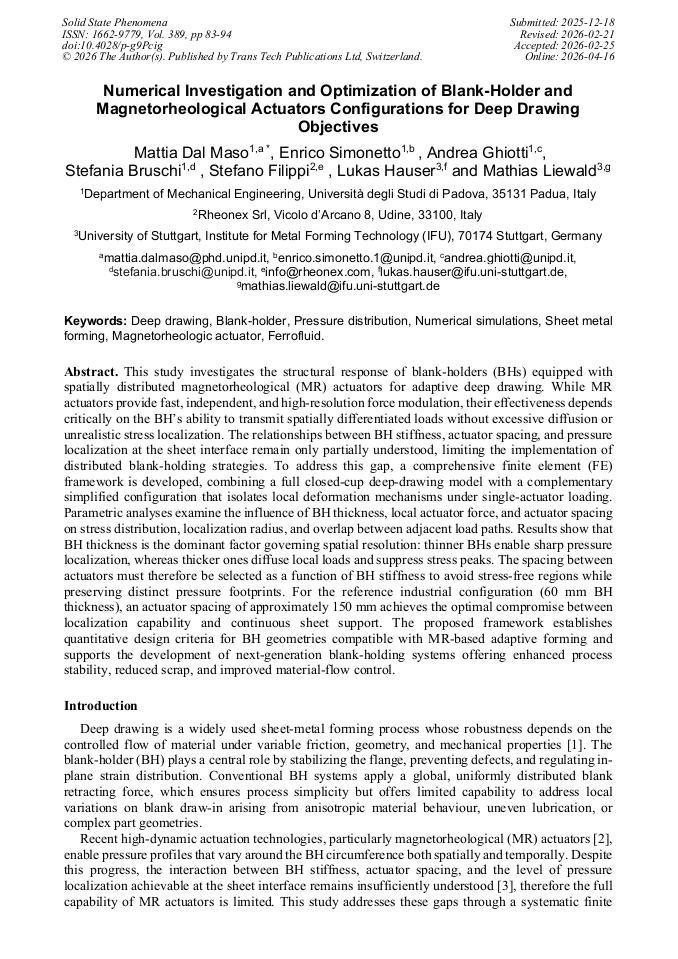

Abstract:

This study investigates the structural response of blank-holders (BHs) equipped with spatially distributed magnetorheological (MR) actuators for adaptive deep drawing. While MR actuators provide fast, independent, and high-resolution force modulation, their effectiveness depends critically on the BH’s ability to transmit spatially differentiated loads without excessive diffusion or unrealistic stress localization. The relationships between BH stiffness, actuator spacing, and pressure localization at the sheet interface remain only partially understood, limiting the implementation of distributed blank-holding strategies. To address this gap, a comprehensive finite element (FE) framework is developed, combining a full closed-cup deep-drawing model with a complementary simplified configuration that isolates local deformation mechanisms under single-actuator loading. Parametric analyses examine the influence of BH thickness, local actuator force, and actuator spacing on stress distribution, localization radius, and overlap between adjacent load paths. Results show that BH thickness is the dominant factor governing spatial resolution: thinner BHs enable sharp pressure localization, whereas thicker ones diffuse local loads and suppress stress peaks. The spacing between actuators must therefore be selected as a function of BH stiffness to avoid stress-free regions while preserving distinct pressure footprints. For the reference industrial configuration (60 mm BH thickness), an actuator spacing of approximately 150 mm achieves the optimal compromise between localization capability and continuous sheet support. The proposed framework establishes quantitative design criteria for BH geometries compatible with MR-based adaptive forming and supports the development of next-generation blank-holding systems offering enhanced process stability, reduced scrap, and improved material-flow control.

• Periodical: Solid State Phenomena (Volume 389)
• Pages: 83-94
• DOI: https://doi.org/10.4028/p-g9Pcig
• Online since: April 2026
• Authors: Mattia Dal Maso*, Enrico Simonetto, Andrea Ghiotti, Stefania Bruschi, Stefano Filippi, Lukas Hauser, Mathias Liewald
• Keywords: Blank-Holder, Deep Drawing, Ferrofluid, Magnetorheologic Actuator, Numerical Simulation, Pressure Distribution, Sheet Metal Forming

References

[1] Singh, C. P., & Agnihotri, G. (2015). Study of deep drawing process parameters: a review. International Journal of Scientific and Research Publications, 5(2), 1-15.

[2] Simonetto, E., Ghiotti, A., Brun, M., Bruschi, S., & Filippi, S. (2023). Adaptive metal flow control in stamping through ferrofluidic actuators. CIRP Annals, 72(1), 209-212.

DOI: 10.1016/j.cirp.2023.03.030

[3] Siegert, K. Hohnhaus, J. Wagner, S. Combination of Hydraulic Multipoint Cushion System and Segment-Elastic Blankholders, SAE-Paper 980077 (1998), pp.31-40.

DOI: 10.4271/980077

[4] Sheng, Z. Q., Jirathearanat, S., & Altan, T. (2004). Adaptive FEM simulation for prediction of variable blank holder force in conical cup drawing. International Journal of Machine Tools and Manufacture, 44(5), 487-494.

DOI: 10.1016/j.ijmachtools.2003.11.001

[5] Shulkin, L. Jansen, S.W., Ahmetoglu, M.A. Kinzel, G.L. Altan, T. Elastic deflections of the blankholder in deep drawing of sheet metal. Journal of Materials Processing Technology 59 (1996), pp.34-40.

DOI: 10.1016/0924-0136(96)02284-4

[6] Huang, H., Lv, Q., Li, L., Xu, Y., Liu, C., Zhang, T., & Liu, Z. (2023). Individually segmented blank holding system driven by electromagnetics for stamping: modeling, validation, and prototype. Journal of Materials Processing Technology, 313, 117883.

DOI: 10.1016/j.jmatprotec.2023.117883

[7] Zhang, H., Qin, S., Cao, L., Meng, L., Zhang, Q., & Li, C. (2020). Research on deep drawing process using radial segmental blank holder based on electro-permanent magnet technology. Journal of Manufacturing Processes, 59, 636-648.

DOI: 10.1016/j.jmapro.2020.09.071

[8] Kitayama, S., Koyama, H., Kawamoto, K., Miyasaka, T., Yamamichi, K., & Noda, T. (2017). Optimization of blank shape and segmented variable blank holder force trajectories in deep drawing using sequential approximate optimization. The International Journal of Advanced Manufacturing Technology, 91(5), 1809-1821.

DOI: 10.1007/s00170-016-9877-5

[9] Rossi, F., Castellani, B., & Nicolini, A. (2015). Benefits and challenges of mechanical spring systems for energy storage applications. Energy Procedia, 82, 805-810.

DOI: 10.1016/j.egypro.2015.11.816

[10] Gunnarsson, L., Asnafi, N., & Schedin, E. (1998). In-process control of blank holder force in axi-symmetric deep drawing with degressive gas springs. Journal of materials processing technology, 73(1-3), 89-96.

DOI: 10.1016/s0924-0136(97)00217-3

[11] Atul S, T., & Babu, M. L. (2019). A review on effect of thinning, wrinkling and spring-back on deep drawing process. Proceedings of the Institution of Mechanical Engineers, Part B: Journal of Engineering Manufacture, 233(4), 1011-1036.

DOI: 10.1177/0954405417752509

[12] Pahl, K.-J. New developments in multi-point die-cushion technology. Journal of material processing Technology 71 (1997) 1, pp.168-173.

DOI: 10.1016/s0924-0136(97)00164-7

[13] Hishida, Y. Wagoner, R.H. Analysis of Blank Holding Force Control Forming Using Hydraulic Forming Simulator; Advanced Technology of Plasticity (1993), pp.1740-1745

[14] Brun, M., Ghiotti, A., Bruschi, S., & Filippi, S. (2021). Active control of blankholder in sheet metal stamping. Procedia CIRP, 100, 151-156.

DOI: 10.1016/j.procir.2021.05.079

[15] De Vicente, J., Klingenberg, D. J., & Hidalgo-Alvarez, R. (2011). Magnetorheological fluids: A review. Soft matter, 7(8), 3701-3710.

DOI: 10.1039/c0sm01221a

[16] Goncalves, F. D., Koo, J. H., & Ahmadian, M. (2006). A review of the state of the art in magnetorheological fluid technologies--Part I: MR fluid and MR fluid models. The Shock and Vibration Digest, 38(3), 203-220.

DOI: 10.1177/0583102406065099

[17] Liu, Y., Li, M., & Ju, F. (2017). Research on the process of flexible blank holder in multi-point forming for spherical surface parts. The International Journal of Advanced Manufacturing Technology, 89(5), 2315-2322.

DOI: 10.1007/s00170-016-9198-8
