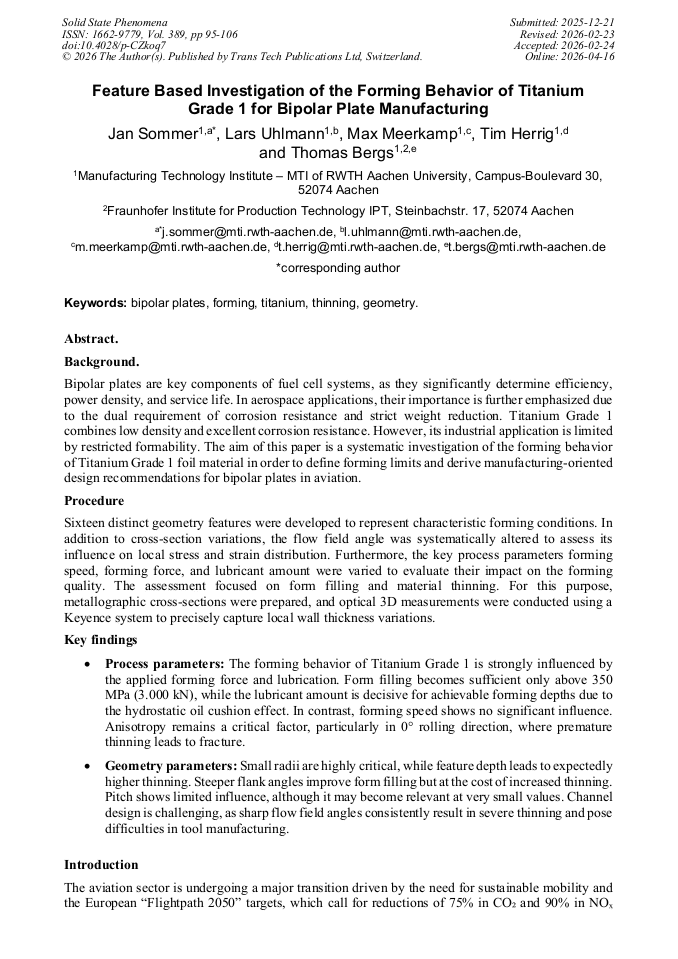

Feature Based Investigation of the Forming Behavior of Titanium Grade 1 for Bipolar Plate Manufacturing

Abstract:

Bipolar plates are key components of fuel cell systems, as they significantly determine efficiency, power density, and service life. In aerospace applications, their importance is further emphasized due to the dual requirement of corrosion resistance and strict weight reduction. Titanium Grade 1 combines low density and excellent corrosion resistance. However, its industrial application is limited by restricted formability. The aim of this paper is a systematic investigation of the forming behavior of Titanium Grade 1 foil material in order to define forming limits and derive manufacturing-oriented design recommendations for bipolar plates in aviation. Procedure. Sixteen distinct geometry features were developed to represent characteristic forming conditions. In addition to cross-section variations, the flow field angle was systematically altered to assess its influence on local stress and strain distribution. Furthermore, the key process parameters forming speed, forming force, and lubricant amount were varied to evaluate their impact on the forming quality. The assessment focused on form filling and material thinning. For this purpose, metallographic cross-sections were prepared, and optical 3D measurements were conducted using a Keyence system to precisely capture local wall thickness variations. Key findings Process parameters: The forming behavior of Titanium Grade 1 is strongly influenced by the applied forming force and lubrication. Form filling becomes sufficient only above 350 MPa (3.000 kN), while the lubricant amount is decisive for achievable forming depths due to the hydrostatic oil cushion effect. In contrast, forming speed shows no significant influence. Anisotropy remains a critical factor, particularly in 0° rolling direction, where premature thinning leads to fracture. Geometry parameters: Small radii are highly critical, while feature depth leads to expectedly higher thinning. Steeper flank angles improve form filling but at the cost of increased thinning. Pitch shows limited influence, although it may become relevant at very small values. Channel design is challenging, as sharp flow field angles consistently result in severe thinning and pose difficulties in tool manufacturing.

• Periodical: Solid State Phenomena (Volume 389)
• Pages: 95-106
• DOI: https://doi.org/10.4028/p-CZkoq7
• Online since: April 2026
• Authors: Jan Sommer*, Lars Uhlmann, Max Meerkamp, Tim Herrig, Thomas Bergs
• Keywords: Bipolar Plates, Forming, Geometry, Thinning, Titanium

References

[1] European Commission, 2011. Flightplan 2050: Europe's vision for aviation; maintaining global leadership and serving society's needs; report of the high-level group on aviation research. Publ. Off. of the Europ. Union, Luxembourg.

[2] Barbir, F., 2006. PEM Fuel Cells, in Fuel Cell Technology, Springer London.

[3] Sperling, P, Horstkotte, R, Sommer, J, Gierlings, S, Janssen, H, Herrig, T, Bergs, T, & Brecher, C. "Challenges in the Production of Fuel Cells for Aviation." Proceedings of the ASME Turbo Expo 2024: Turbomachinery Technical Conference and Exposition. London, United Kingdom. June 24–28, 2024. V009T17A012. ASME.

DOI: 10.1115/gt2024-125888

[4] Liu, Q., Lan, F., Zeng, C., Chen, J. et al., 2022. A review of proton exchange membrane fuel cell's bipolar plate design and fabrication process 538, p.231543.

DOI: 10.1016/j.jpowsour.2022.231543

[5] NOW GmbH Nationale Organisation Wasserstoff- und Brennstoffzellentechnologie, 2022. Wertschöpfungskette Brennstoffzelle: Metastudie.

[6] Jayakumar, K., Pandiyan, S., Rajalakshmi, N., Dhathathreyan, K.S., 2006. Cost-benefit analysis of commercial bipolar plates for PEMFC's 161, p.454.

DOI: 10.1016/j.jpowsour.2006.04.128

[7] Hwang, W., Sung, Y.-E., 2023. Recent Developments of Polymer Electrolyte Membrane Fuel Cell Design 14, p.120.

[8] Leng, Y., Ming, P., Yang, D., Zhang, C., 2020. Stainless steel bipolar plates for proton exchange membrane fuel cells: Materials, flow channel design and forming processes 451, p.227783.

DOI: 10.1016/j.jpowsour.2020.227783

[9] Alo, O.A., Otunniyi, I.O., Pienaar, H., Iyuke, S.E., 2017. Materials for Bipolar Plates in Polymer Electrolyte Membrane Fuel Cell: Performance Criteria and Current Benchmarks 7, p.395.

DOI: 10.1016/j.promfg.2016.12.011

[10] Xu, Z., Li, Z., Zhang, R., Jiang, T. et al., 2021. Fabrication of micro channels for titanium PEMFC bipolar plates by multistage forming process 46, p.11092.

DOI: 10.1016/j.ijhydene.2020.07.230

[11] METALCOR GmbH, 2023. Datenblatt: 1.4404 (AISI 316 L), S31603 | METALCOR.

[12] METALCOR GmbH, 2023. Datenblatt: Titan-Grade 1 (3.7025), R50250 | METALCOR.

[13] Gottstein, G., 2014. Materialwissenschaft und Werkstofftechnik: Physikalische Grundlagen, 4th edn. Springer Berlin Heidelberg, Berlin, Heidelberg.

[14] Beck, M., Riedmüller, K.R., Liewald, M., Bertz, A., Aslan, M.J., Carl, D. (2023). Investigation on the Influence of Geometric Parameters on the Dimensional Accuracy of High-Precision Embossed Metallic Bipolar Plates. In: Liewald, M., Verl, A., Bauernhansl, T., Möhring, HC. (eds) Production at the Leading Edge of Technology. WGP 2022. Lecture Notes in Production Engineering. Springer, Cham.

DOI: 10.1007/978-3-031-18318-8_44
