Numerical Study of Process-Specific Disturbances in Hollow Embossing Rolling

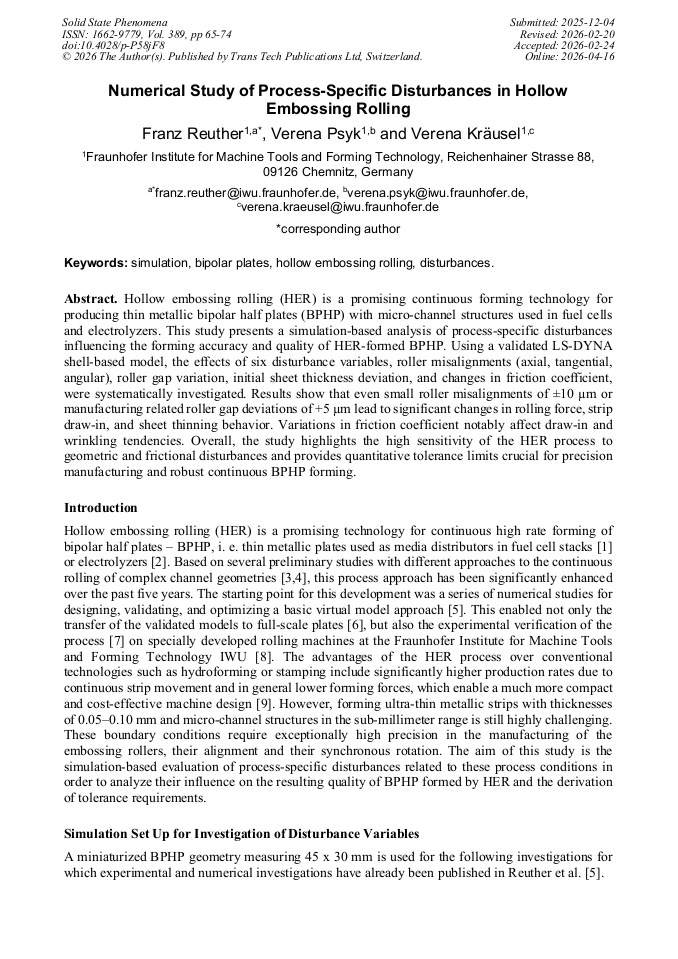

Article Preview
View Pdf By email

Abstract:

Hollow embossing rolling (HER) is a promising continuous forming technology for producing thin metallic bipolar half plates (BPHP) with micro-channel structures used in fuel cells and electrolyzers. This study presents a simulation-based analysis of process-specific disturbances influencing the forming accuracy and quality of HER-formed BPHP. Using a validated LS-DYNA shell-based model, the effects of six disturbance variables, roller misalignments (axial, tangential, angular), roller gap variation, initial sheet thickness deviation, and changes in friction coefficient, were systematically investigated. Results show that even small roller misalignments of ±10 µm or manufacturing related roller gap deviations of +5 µm lead to significant changes in rolling force, strip draw-in, and sheet thinning behavior. Variations in friction coefficient notably affect draw-in and wrinkling tendencies. Overall, the study highlights the high sensitivity of the HER process to geometric and frictional disturbances and provides quantitative tolerance limits crucial for precision manufacturing and robust continuous BPHP forming.

You have full access to the following eBook
Incremental and Sheet Metal Forming Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 389)

Pages:

65-74

DOI:

https://doi.org/10.4028/p-P58jF8

Citation:

Cite this paper

Online since:

April 2026

Authors:

Franz Reuther*, Verena Psyk, Verena Kräusel

Keywords:

Bipolar Plates, Disturbances, Hollow Embossing Rolling, Simulation

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] Porstmann, S., Wannemacher, T., Drossel, W.-G., 2020. A comprehensive comparison of state-of-the-art manufacturing methods for fuel cell bipolar plates including anticipated future industry trends. J. Manuf. Process. 60, 366–383.

DOI: 10.1016/j.jmapro.2020.10.041

Google Scholar

[2] Reuther, F., Melzer, S., Geist, A., Polster, S., Psyk, V., 2024. Iterativer Designprozess für hohlprägegewalzte Elektrolyseurplatten am Beispiel von "HyVentus". FC³ FUEL CELL CONFERENCE 2024, 12 November 2024, Chemnitz.

Google Scholar

[3] Abeyrathna, B., Zhang, P., Pereira, M.P., Wilkosz, D., Weiss, M., 2019. Micro-roll forming of stainless steel bipolar plates for fuel cells. Int. J. Hydrogen Energy 44 (7), 3861–3875.

DOI: 10.1016/j.ijhydene.2018.12.013

Google Scholar

[4] Bauer, A., Härtel, S., Awiszus, B., 2019. Manufacturing of Metallic Bipolar Plate Channels by Rolling. JMMP 3 (2), 48.

DOI: 10.3390/jmmp3020048

Google Scholar

[5] Reuther, F., Dix, M., Kräusel, V., Psyk, V., Porstmann, S., 2024. Model validation of hollow embossing rolling for bipolar plate forming. Int J Mater Form 17 (2).

DOI: 10.1007/s12289-023-01804-w

Google Scholar

[6] Reuther, F., 2025. Simulation of hollow embossing rolling for full-scale bipolar plates, in: Material Forming: ESAFORM 2025. Material Forming. 05/07/2025. Materials Research Forum LLC, p.1972–1981.

DOI: 10.21741/9781644903599-212

Google Scholar

[7] Heidrich, S., Wagner, M., Kurth, R., Reuther, F., Ihlenfeldt, S., 2025. Key Parameters in Hollow Embossing Rolling of Metallic Bipolar Plates, in: International Rolling Conference (IRC 2025) Conference Proceedings. International Rolling Conference 2025. 2025. Association for Iron & Steel Technology.

DOI: 10.33313/450/007

Google Scholar

[8] Wagner, M., Alaluss, M., Langheinrich, J., Reuther, F., Kurth, R., Ihlenfeldt, S., 2024. Prozessüberwachung mittels maschineninhärenter Sensoren/Transparency improvement in hollow embossing rolling of metallic bipolar plates – Process monitoring by using machine-inherent sensors. wt 114 (01-02), 15–20.

DOI: 10.37544/1436-4980-2024-01-02-17

Google Scholar

[9] Porstmann, S., Polster, S., Reuther, F., Melzer, S., Nagel, M., Psyk, V., Dix, M., 2021. Objectives and fields of tension in the comparison of manufacturing processes for metallic bipolar plates. Fuel Cell Conference FC³, 2021, Chemnitz.

Google Scholar

[10] Reuther, F., Psyk, V., Kräusel, V., Dix, M., 2023. Simulation of Hollow Embossing Rolling for Bipolar Plate Forming using LS-DYNA©. 14th European LS-DYNA Conference, 2023, Baden-Baden.

DOI: 10.1007/s12289-023-01804-w

Google Scholar
