Design and Development of a Hydrostatic Support Device for Hot Incremental Sheet Forming of PMMA

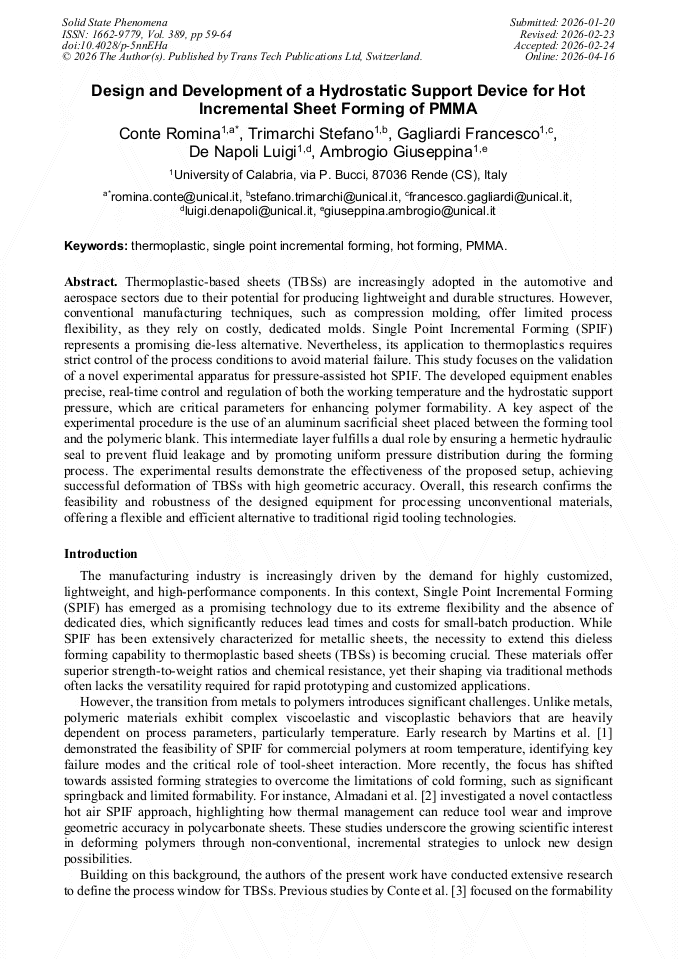

Article Preview
View Pdf By email

Abstract:

Thermoplastic-based sheets (TBSs) are increasingly adopted in the automotive and aerospace sectors due to their potential for producing lightweight and durable structures. However, conventional manufacturing techniques, such as compression molding, offer limited process flexibility, as they rely on costly, dedicated molds. Single Point Incremental Forming (SPIF) represents a promising die-less alternative. Nevertheless, its application to thermoplastics requires strict control of the process conditions to avoid material failure. This study focuses on the validation of a novel experimental apparatus for pressure-assisted hot SPIF. The developed equipment enables precise, real-time control and regulation of both the working temperature and the hydrostatic support pressure, which are critical parameters for enhancing polymer formability. A key aspect of the experimental procedure is the use of an aluminum sacrificial sheet placed between the forming tool and the polymeric blank. This intermediate layer fulfills a dual role by ensuring a hermetic hydraulic seal to prevent fluid leakage and by promoting uniform pressure distribution during the forming process. The experimental results demonstrate the effectiveness of the proposed setup, achieving successful deformation of TBSs with high geometric accuracy. Overall, this research confirms the feasibility and robustness of the designed equipment for processing unconventional materials, offering a flexible and efficient alternative to traditional rigid tooling technologies.

You have full access to the following eBook
Incremental and Sheet Metal Forming Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 389)

Pages:

59-64

DOI:

https://doi.org/10.4028/p-5nnEHa

Citation:

Cite this paper

Online since:

April 2026

Authors:

Romina Conte*, Stefano Trimarchi, Francesco Gagliardi, Luigi De Napoli, Giuseppina Ambrogio

Keywords:

Hot Forming, PMMA, Single Point Incremental Forming, Thermoplastic

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] P.A.F. Martins, L. Kwiatkowski, V. Franzen, A.E. Tekkaya, M. Kleiner, Single point incremental forming of polymers, CIRP Ann., 58 (2009) 229–232.

DOI: 10.1016/j.cirp.2009.03.095

Google Scholar

[2] M. Almadani, A. Guner, H. Hassanin, K. Essa, Optimisation of a novel hot air contactless single incremental point forming of polymers, J. Manuf. Process., 117 (2024) 302–314.

DOI: 10.1016/j.jmapro.2024.02.042

Google Scholar

[3] R. Conte, G. Ambrogio, F. Gagliardi, P. Russo, L. Filice, Preliminary Experimental Analysis on Incremental Forming of Fiberglass Reinforced Polyamide 6, in: AITeM 2017, 2017.

Google Scholar

[4] R. Conte, G. Ambrogio, D. Pulice, F. Gagliardi, L. Filice, Incremental Sheet Forming of a Composite Made of Thermoplastic Matrix and Glass-Fiber Reinforcement, Procedia Eng., 207 (2017) 819–824.

DOI: 10.1016/j.proeng.2017.10.835

Google Scholar

[5] G. Ambrogio, R. Conte, F. Gagliardi, L. De Napoli, L. Filice, P. Russo, A new approach for forming polymeric composite structures, Compos. Struct., 204 (2018) 445–453.

DOI: 10.1016/j.compstruct.2018.07.106

Google Scholar

[6] G. Ambrogio, F. Borda, R. Conte, L. Filice, F. Gagliardi, Processing of sheets made of long fibers reinforced plastics by SPIF, Mater. Res. Proc., 41 (2024) 1536–1543.

DOI: 10.21741/9781644903131-170

Google Scholar

[7] G. Ambrogio, F. Gagliardi, R. Conte, P. Russo, Feasibility analysis of hot incremental sheet forming process on thermoplastics, Int. J. Adv. Manuf. Technol., 102 (2019) 937–947.

DOI: 10.1007/s00170-018-3180-6

Google Scholar

[8] International Organization for Standardization, ISO 11357-1:2016 Plastics - Differential scanning calorimetry (DSC) — Part 1: General principles, (2023).

Google Scholar
