Numerical Modeling of Controlled Multi-Step Expansion in Plasma Arc Welded AISI 316 Stainless-Steel Tubes

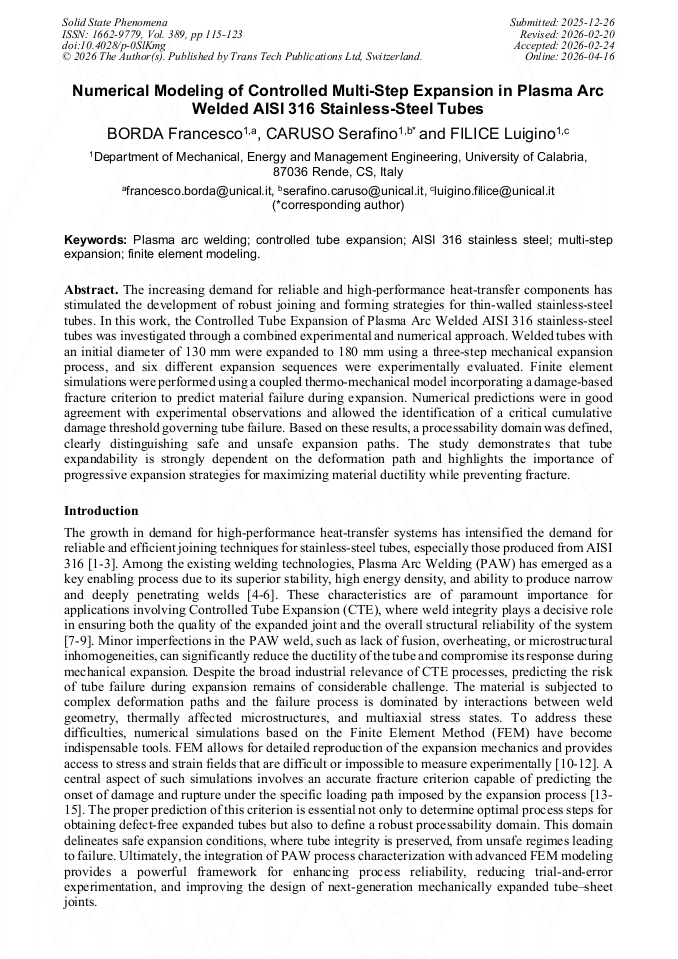

Article Preview
View Pdf By email

Abstract:

The increasing demand for reliable and high-performance heat-transfer components has stimulated the development of robust joining and forming strategies for thin-walled stainless-steel tubes. In this work, the Controlled Tube Expansion of Plasma Arc Welded AISI 316 stainless-steel tubes was investigated through a combined experimental and numerical approach. Welded tubes with an initial diameter of 130 mm were expanded to 180 mm using a three-step mechanical expansion process, and six different expansion sequences were experimentally evaluated. Finite element simulations were performed using a coupled thermo-mechanical model incorporating a damage-based fracture criterion to predict material failure during expansion. Numerical predictions were in good agreement with experimental observations and allowed the identification of a critical cumulative damage threshold governing tube failure. Based on these results, a processability domain was defined, clearly distinguishing safe and unsafe expansion paths. The study demonstrates that tube expandability is strongly dependent on the deformation path and highlights the importance of progressive expansion strategies for maximizing material ductility while preventing fracture.

You have full access to the following eBook
Incremental and Sheet Metal Forming Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 389)

Pages:

115-123

DOI:

https://doi.org/10.4028/p-0SlKmg

Citation:

Cite this paper

Online since:

April 2026

Authors:

Francesco Borda*, Serafino Caruso, Luigino Filice

Keywords:

AISI 316 Stainless Steel, Controlled Tube Expansion, Digital Twin, Finite Element Modelling, Multi-Step Expansion, Plasma Arc Welding (PAW)

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] M. Radha Raman, T. Visnu, S. Rajesha, A Study of Tensile Strength of MIG and TIG Welded Dissimilar Joints of Mild Steel and Stainless Steel, IJASME. 3 (2014) 23-32.

DOI: 10.14810/ijamse.2014.3203

Google Scholar

[2] S. Manabendra, S. Dhami, Effect of TIG Welding Parameter of Welded Joint of Stainless Steel SS304 by TIG Welding, SSRN. (2020).

DOI: 10.2139/ssrn.3643709

Google Scholar

[3] H. Vinoth Kumar, M. Balakrishnan, K. Gulanthaivel, R. Logeshwaran, R. Mohanraj, Investigation on effects of flux assisted GTAW welding process on mechanical, metallurgical characteristics of dissimilar metals SS 304 and SS 316 L, Mater. Today Proc. 33 (2020) 3191-3196.

DOI: 10.1016/j.matpr.2020.04.143

Google Scholar

[4] M. Samiuddin, J. Li, M. Taimoor, M.N. Siddiqui, S.U. Siddiqui, J. Xiong, Investigation on the process parameters of TIG-welded aluminum alloy through mechanical and microstructural characterization, Def. Technol. 17 (2021) 1234-1248.

DOI: 10.1016/j.dt.2020.06.012

Google Scholar

[5] G. Rotella, M.Sanguedolce, M.R. Saffioti, L. Filice, F. Testa, Strategies for Shaping of Different Ceramic Foams, Proc. Manuf. 47 (2020) 493-497.

DOI: 10.1016/j.promfg.2020.04.345

Google Scholar

[6] A. Del Prete, L. Filice, D. Umbrello, Numerical Simulation of Machining Nickel-Based Alloys. Proc. CIRP. 8 (2013) 540-545, https://.

DOI: 10.1016/j.procir.2013.06.147

Google Scholar

[7] F. Borda, A.M.I. Cosma, L. Filice, Enabling Industry 4.0 Transformation in Calabria region: Framework, Machine Interconnection and ERP Synergy, Procedia Comput. Sci. 232 (2024) 1151-1163.

DOI: 10.1016/j.procs.2024.01.113

Google Scholar

[8] F. Borda, A.D. La Rosa, L. Filice, F. Gagliardi, Environmental comparison of opposing manufacturing strategies at changing of energy sources, EoL approaches and shape peculiarity for an automotive component, Adv. Mater. Process. Technol. (2024) 1-21.

DOI: 10.1080/2374068X.2024.2432724

Google Scholar

[9] M. Sanguedolce, G. Rotella, M.R. Saffioti, L. Filice, Burnishing of AM materials to obtain high performance part surfaces, JIEM. 15 (2022) 73-89.

DOI: 10.3926/jiem.3608

Google Scholar

[10] A.A. Deshpande, L. Xu, W. Sun, D.G. McCartney, T.H. Hyde, Finite-element-based parametric study on welding-induced distortion of TIG-welded stainless steel 304 sheets. J. Strain Anal. Eng. Des. 46 (2011) 267-279.

DOI: 10.1177/0309324711398763

Google Scholar

[11] S. Caruso, E. Sgambitterra, S. Rinaldi, A. Gallone, L. Viscido, L. Filice, D. Umbrello, Experimental comparison of the MIG, friction stir welding, cold metal transfer and hybrid laser-MIG processes for AA 6005-T6 aluminium alloy, AIP Conf. Proc. 1769 (2016) 100004.

DOI: 10.1063/1.4963498

Google Scholar

[12] M. Seyyedian, M. Haghpanah, M. Sedighi, Investigation of the effect of clamping on residual stresses and distortions in butt welded plates, Sci. Iranica Trans. B. Mech. Eng. 17 (2010) 387-394.

Google Scholar

[13] D.R. Behera, P.S. Lin Prakash, P. Kundu, R.R. Kumar, S.V.S.N. Murty, S.K. Kar, S.K. Panda, Microstructure Characterization and Formability Assessment of Electron Beam Welded Nb-10Hf-1Ti (Wt.%) Refractory Alloy Sheets. Int. J. Refract. Met. Hard Mater. 125 (2024) 106912.

DOI: 10.1016/j.ijrmhm.2024.106912

Google Scholar

[14] J. Xie, A. Kar, Laser welding of thin sheet steel with surface oxidation, Weld J. 78 (1999).

Google Scholar

[15] K.H. tseng, Y.C. Chen, Micro Plasma Arc Welding of AM 350 Precipitation Hardening Alloys, Appl. Mech. Mater. (2011) 121-126.

DOI: 10.4028/www.scientific.net/AMM.121-126.2681

Google Scholar

[16] X. Li, J. Liang, T. Shi, D. Yang, X. Chen, C. Zhang, Z. Liu, D. Liu, Q. Zhang, Tribological Behaviors of Vacuum Hot-Pressed Ceramic Composites with Enhanced Cyclic Oxidation and Corrosion Resistance. Ceram. Int. 46 (2020) 12911–12920.

DOI: 10.1016/j.ceramint.2020.02.057

Google Scholar

[17] S. Caruso, D. Umbrello, Numerical and experimental validation of gas metal arc welding on AISI 441 ferritic stainless steel through mechanical and microstructural analysis. Int. J. Adv. Manuf. Technol. 120 (2022) 7433–7444.

DOI: 10.1007/s00170-022-09208-x

Google Scholar

[18] F. Rubino, F. Tucci, S. Caruso, D. Umbrello, P. Carlone, An integrated numerical approach to simulate the filler deposition and the shape distortions in gas metal arc welding, CIRP J. Manuf. Sci.Technol. 45 (2023) 26-34, ISSN 1755-5817.

DOI: 10.1016/j.cirpj.2023.05.010

Google Scholar

[19] Y. Rong, G. Mi, J. Xu, Y. Huang, C. Wang, Laser penetration welding of ship steel EH36: a new heat source and application to predict residual stress considering martensite phase transformation. Mar. Struct. 61 (2018) 256–267.

DOI: 10.1016/j.marstruc.2018.06.003

Google Scholar

[20] Y.C. Huang, C.H. Su, S.K. Wu, C. Lin, A Study on the Hall–Petch Relationship and Grain Growth Kinetics in FCC-Structured High/Medium Entropy Alloys. Entropy. 21 (2019) 297.

DOI: 10.3390/e21030297

Google Scholar

[21] J. Moravec, I. Novakova, J. Sobotka, H. Neumann, Determination of Grain Growth Kinetics and Assessment of Welding Effect on Properties of S700MC Steel in the HAZ of Welded Joints. Metals 9 (2019) 707.

DOI: 10.3390/met9060707

Google Scholar

[22] R.M. German, Grain Growth in Austenitic Stainless Steels. Metallography 11(1978) 235–239.

DOI: 10.1016/0026-0800(78)90043-5

Google Scholar
