Hybrid Hot Forming of High-Strength Aluminum Alloys: Influence of Local Deformation on Post-Aging Mechanical Properties

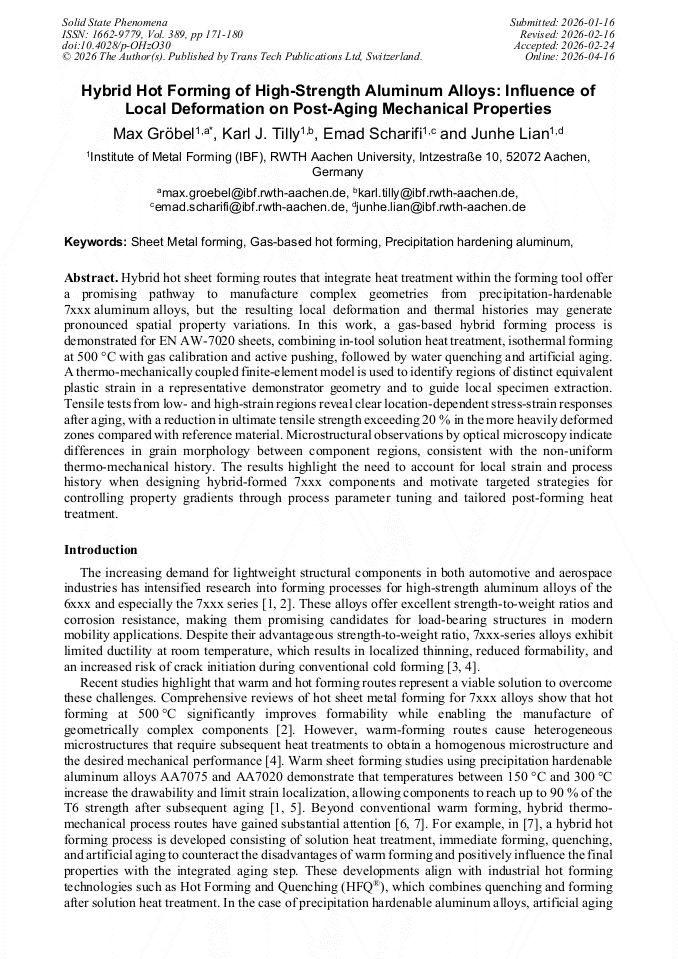

Article Preview
View Pdf By email

Abstract:

Hybrid hot sheet forming routes that integrate heat treatment within the forming tool offer a promising pathway to manufacture complex geometries from precipitation‑hardenable 7xxx aluminum alloys, but the resulting local deformation and thermal histories may generate pronounced spatial property variations. In this work, a gas-based hybrid forming process is demonstrated for EN AW‑7020 sheets, combining in‑tool solution heat treatment, isothermal forming at 500 °C with gas calibration and active pushing, followed by water quenching and artificial aging. A thermo‑mechanically coupled finite‑element model is used to identify regions of distinct equivalent plastic strain in a representative demonstrator geometry and to guide local specimen extraction. Tensile tests from low‑ and high‑strain regions reveal clear location-dependent stress‑strain responses after aging, with a reduction in ultimate tensile strength exceeding 20 % in the more heavily deformed zones compared with reference material. Microstructural observations by optical microscopy indicate differences in grain morphology between component regions, consistent with the non‑uniform thermo‑mechanical history. The results highlight the need to account for local strain and process history when designing hybrid‑formed 7xxx components and motivate targeted strategies for controlling property gradients through process parameter tuning and tailored post-forming heat treatment.

You have full access to the following eBook
Incremental and Sheet Metal Forming Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 389)

Pages:

171-180

DOI:

https://doi.org/10.4028/p-OHzO30

Citation:

Cite this paper

Online since:

April 2026

Authors:

Max Gröbel*, Karl J. Tilly, Emad Scharifi, Junhe Lian

Keywords:

Gas-Based Hot Forming, Precipitation Hardening Aluminum, Sheet Metal Forming

Funder:

The publication of this article was funded by the RWTH Aachen University 10.13039/501100007210

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] W.-L. Chen and R.-S. Lee, Novel Aging Warm-Forming Process of Al-Zn-Mg Aluminum Alloy Sheets and Influence of Precipitate Characteristics on Warm Formability. Metals, 8 (2024) 844.

DOI: 10.3390/met14080844

Google Scholar

[2] M. Skwarski, A review of sheet warm forming methods for high-strength 7xxx aluminum alloys. Materials Science-Poland, 3 (2025) 64–84.

DOI: 10.2478/msp-2025-0031

Google Scholar

[3] M. Kumar, N. Sotirov, and C. M. Chimani, Investigations on warm forming of AW-7020-T6 alloy sheet. Journal of Materials Processing Technology, 8 (2014) 1769–1776.

DOI: 10.1016/j.jmatprotec.2014.03.024

Google Scholar

[4] K. Zheng, D. J. Politis, L. Wang, and J. Lin, A review on forming techniques for manufacturing lightweight complex—shaped aluminium panel components. International Journal of Lightweight Materials and Manufacture, 2 (2018) 55–80.

DOI: 10.1016/j.ijlmm.2018.03.006

Google Scholar

[5] J. A. Österreicher, M. A. Tunes, F. Grabner, A. Arnoldt, T. Kremmer, S. Pogatscher, and C. M. Schlögl, Warm-forming of pre-aged Al-Zn-Mg-Cu alloy sheet. Materials & Design (2020) 108837.

DOI: 10.1016/j.matdes.2020.108837

Google Scholar

[6] S. Lotz, E. Scharifi, U. Weidig, and K. Steinhoff, Effect of Combined Forming and Aging Processes on the Mechanical Properties of the Precipitation-Hardenable High-Strength Aluminum Alloys AA6082 and AA7075. Metals, 8 (2022) 1250.

DOI: 10.3390/met12081250

Google Scholar

[7] N. K. Baru, T. Teeuwen, D. Bailly, and E. Scharifi, A novel hybrid hot forming process concept for high strength aluminum alloys. Materials Research Proceedings, 52 (2025) 134–141.

DOI: 10.21741/9781644903551-17

Google Scholar

[8] R. Wu, W. Dai, J. Luo, M. Li, Y. Liu, and H. Li, Aluminum Alloy Hot Stamping and Forming Technology: A Review. Materials (Basel, Switzerland), 8 (2025).

DOI: 10.3390/ma18081694

Google Scholar

[9] E. Scharifi, V. A. Yardley, U. Weidig, D. Szegda, J. Lin, and K. Steinhoff, Hot Sheet Metal Forming Strategies for High‐Strength Aluminum Alloys: A Review—Fundamentals and Applications. Adv Eng Mater, 16 (2023).

DOI: 10.1002/adem.202300141

Google Scholar

[10] M. C. Paulisch, N. Wanderka, M. Haupt, S. Selve, I. Driehorst, and W. Reimers, The influence of heat treatments on the microstructure and the mechanical properties in commercial 7020 alloys. Materials Science and Engineering: A (2015) 254–262.

DOI: 10.1016/j.msea.2014.12.040

Google Scholar

[11] A. Deschamps, F. Livet, and Y. Bréchet, Influence of predeformation on ageing in an Al–Zn–Mg alloy—I. Microstructure evolution and mechanical properties. Acta Materialia, 1 (1998) 281–292.

DOI: 10.1016/s1359-6454(98)00293-6

Google Scholar
