Resistance Heating in an Atmosphere Suitable for XHV with Thin Aluminium Film Coating

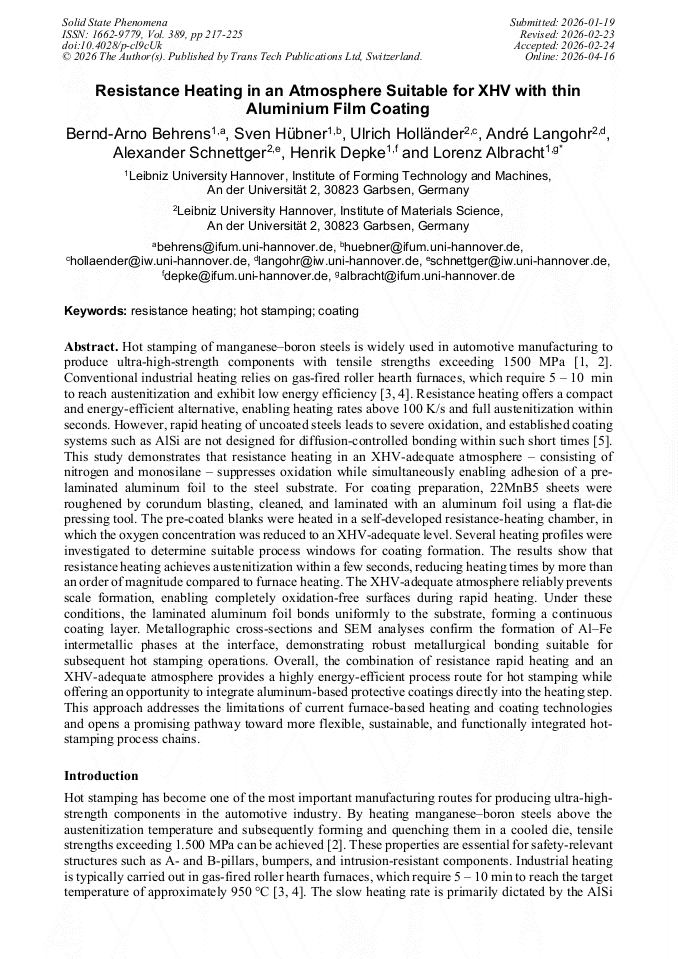

Article Preview
View Pdf By email

Abstract:

Hot stamping of manganese–boron steels is widely used in automotive manufacturing to produce ultra-high-strength components with tensile strengths exceeding 1500 MPa . Conventional industrial heating relies on gas-fired roller hearth furnaces, which require 5 – 10 min to reach austenitization and exhibit low energy efficiency . Resistance heating offers a compact and energy-efficient alternative, enabling heating rates above 100 K/s and full austenitization within seconds. However, rapid heating of uncoated steels leads to severe oxidation, and established coating systems such as AlSi are not designed for diffusion-controlled bonding within such short times . This study demonstrates that resistance heating in an XHV-adequate atmosphere – consisting of nitrogen and monosilane – suppresses oxidation while simultaneously enabling adhesion of a pre-laminated aluminum foil to the steel substrate. For coating preparation, 22MnB5 sheets were roughened by corundum blasting, cleaned, and laminated with an aluminum foil using a flat-die pressing tool. The pre-coated blanks were heated in a self-developed resistance-heating chamber, in which the oxygen concentration was reduced to an XHV-adequate level. Several heating profiles were investigated to determine suitable process windows for coating formation. The results show that resistance heating achieves austenitization within a few seconds, reducing heating times by more than an order of magnitude compared to furnace heating. The XHV-adequate atmosphere reliably prevents scale formation, enabling completely oxidation-free surfaces during rapid heating. Under these conditions, the laminated aluminum foil bonds uniformly to the substrate, forming a continuous coating layer. Metallographic cross-sections and SEM analyses confirm the formation of Al–Fe intermetallic phases at the interface, demonstrating robust metallurgical bonding suitable for subsequent hot stamping operations. Overall, the combination of resistance rapid heating and an XHV-adequate atmosphere provides a highly energy-efficient process route for hot stamping while offering an opportunity to integrate aluminum-based protective coatings directly into the heating step. This approach addresses the limitations of current furnace-based heating and coating technologies and opens a promising pathway toward more flexible, sustainable, and functionally integrated hot-stamping process chains.

You have full access to the following eBook
Incremental and Sheet Metal Forming Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 389)

Pages:

217-225

DOI:

https://doi.org/10.4028/p-cl9cUk

Citation:

Cite this paper

Online since:

April 2026

Authors:

Bernd Arno Behrens, Sven Hübner, Ulrich Holländer, André Langohr, Alexander Schnettger, Henrik Depke, Lorenz Albracht*

Keywords:

Coating, Hot Stamping, Resistance Heating

Funder:

The publication of this article was funded by the Leibniz Universität Hannover (LUH) / Technische Informationsbibliothek (TIB)

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author
