Reducing the Uncertainty in Flow Forming of Metastable Austenites

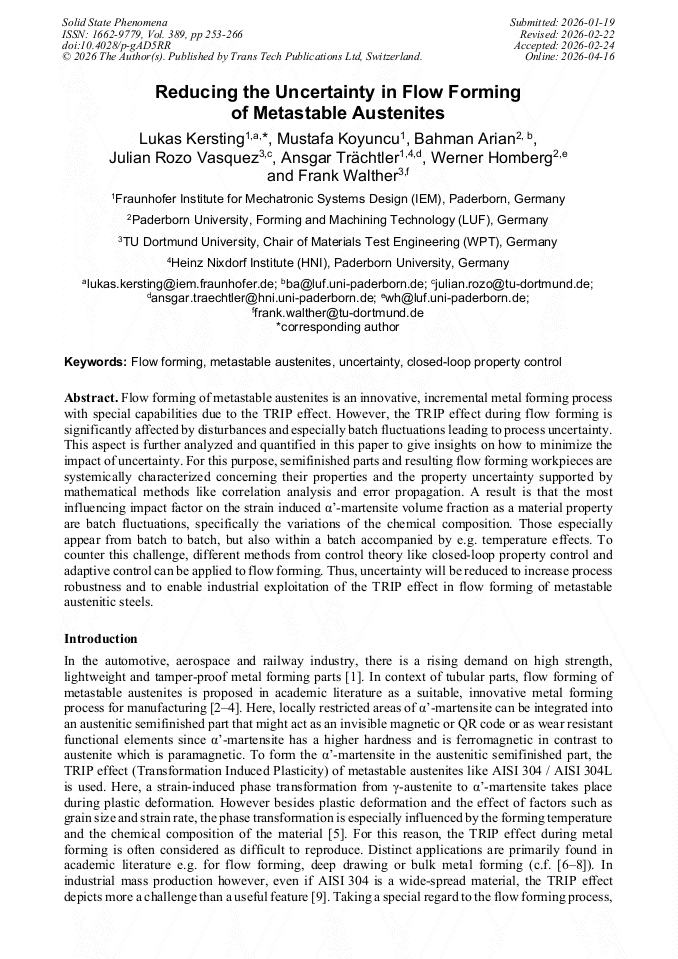

Article Preview
View Pdf By email

Abstract:

Flow forming of metastable austenites is an innovative, incremental metal forming process with special capabilities due to the TRIP effect. However, the TRIP effect during flow forming is significantly affected by disturbances and especially batch fluctuations leading to process uncertainty. This aspect is further analyzed and quantified in this paper to give insights on how to minimize the impact of uncertainty. For this purpose, semifinished parts and resulting flow forming workpieces are systemically characterized concerning their properties and the property uncertainty supported by mathematical methods like correlation analysis and error propagation. A result is that the most influencing impact factor on the strain induced α’-martensite volume fraction as a material property are batch fluctuations, specifically the variations of the chemical composition. Those especially appear from batch to batch, but also within a batch accompanied by e.g. temperature effects. To counter this challenge, different methods from control theory like closed-loop property control and adaptive control can be applied to flow forming. Thus, uncertainty will be reduced to increase process robustness and to enable industrial exploitation of the TRIP effect in flow forming of metastable austenitic steels.

You have full access to the following eBook
Incremental and Sheet Metal Forming Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 389)

Pages:

253-266

DOI:

https://doi.org/10.4028/p-gAD5RR

Citation:

Cite this paper

Online since:

April 2026

Authors:

Lukas Kersting*, Mustafa Koyuncu, Bahman Arian, Julian Rozo Vasquez, Ansgar Trächtler, Werner Homberg, Frank Walther

Keywords:

Closed-Loop Property Control, Flow Forming, Metastable Austenites, Uncertainty

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] A.E. Tekkaya, N. Ben Khalifa, G. Grzancic, R. Hölker, Forming of lightweight metal components: Need for new technologies, Procedia Engineering 81 (2014) 28–37.

DOI: 10.1016/j.proeng.2014.09.125

Google Scholar

[2] B. Arian, W. Homberg, L. Kersting, A. Trächtler, J. Rozo Vasquez, F. Walther, α'-martensite grading techniques in reverse flow forming of AISI 304L, Materials Research Proceedings (2024) 708–717.

DOI: 10.21741/9781644903254-76

Google Scholar

[3] B. Arian, W. Homberg, L. Kersting, A. Trächtler, J. Rozo Vasquez, F. Walther, Advanced thermomechanical flow forming: A novel approach to α' martensite control for enhanced material properties, Materials Research Proceedings (2025) 1167–1173.

DOI: 10.21741/9781644903599-127

Google Scholar

[4] B. Arian, W. Homberg, L. Kersting, A. Trächtler, J. Rozo Vasquez, F. Walther, Produktkennzeichnung durch lokal definierte Einstellung von ferromagnetischen Eigenschaften beim Drückwalzen von metastabilen Stahlwerkstoffen, in: G. Hirt (Ed.), 36. Aachener Stahlkolloquium – Umformtechnik "Ideen Form geben": 26.-27. October 2022, Eurogress Aachen, Tagungsband, Verlagshaus Mainz, Aachen, 2022, p.333–347.

DOI: 10.1515/auto-2024-0127

Google Scholar

[5] A. Weidner, Deformation processes in TRIP/TWIP steels, Springer, Cham, (2020).

Google Scholar

[6] B.-A. Behrens, E. Doege, B. Springub, Transformation induced martensite evolution in metal forming processes of stainless steels, Steel Research International 75 (2004) 475–482.

DOI: 10.1002/srin.200405799

Google Scholar

[7] E. Wiens, W. Homberg, B. Arian, K. Möhring, F. Walther, Forming of parts with locally defined mechanical and ferromagnetic properties by flow-forming, in: G. Daehn, J. Cao, B. Kinsey, A.E. Tekkaya, A. Vivek, Y. Yoshida (Eds.), Forming the Future, Springer, Cham, 2021, p.1913–(1924).

DOI: 10.1007/978-3-030-75381-8_160

Google Scholar

[8] B.-A. Behrens, K. Brunotte, H. Wester, J. Peddinghausen, M. Till, Functionalisation of the boundary layer by deformation-induced martensite on bearing rings by means of bulk metal forming processes, in: METAL 2022 Conference proceedings 2022, p.250–255.

DOI: 10.37904/metal.2022.4394

Google Scholar

[9] A. Weiß, W. Lehnert, H. Gutte, P.R. Scheller, Verbesserung der Kaltumformbarkeit austenitischer CrNi-Stähle durch Nutzung des Trip-Effektes, ATZ - Automobiltechnische Zeitschrift 107 (2005) 68–72.

DOI: 10.1007/BF03221690

Google Scholar

[10] M. Runge, Drücken und Drückwalzen: Umformtechnik, Werkstückgestaltung, Maschinen, Steuerungskonzepte, Verl. Moderne Industrie, Landsberg/Lech, (1993).

Google Scholar

[11] P.F. Pelz, P. Groche, M.E. Pfetsch, M. Schaeffner, Mastering uncertainty in mechanical engineering, Springer, Cham, (2021).

DOI: 10.1007/978-3-030-78354-9

Google Scholar

[12] Deutsches Institut für Normung, Seamless steel tubes for pressure purposes - Technical delivery conditions - Part 5: Stainless steel tubes: German version EN 10216-5:2021, DIN Media, Berlin.

DOI: 10.3403/30347099

Google Scholar

[13] J. Talonen, P. Nenonen, G. Pape, H. Hänninen, Effect of strain tate on the strain-induced γ → α'-martensite transformation and mechanical properties of austenititc stainless steel, Metallurgical and Materials Transactions A (2005) 421–431.

DOI: 10.1007/s11661-005-0313-y

Google Scholar

[14] L. Kersting, B. Arian, J. Rozo Vasquez, A. Trächtler, W. Homberg, F. Walther, Innovative online measurement and modelling approach for property-controlled flow forming processes, Key Engineering Materials 926 (2022) 862–874.

DOI: 10.4028/p-yp2hj3

Google Scholar

[15] L. Kersting, S.R. Sander, B. Arian, J. Rozo Vasquez, A. Trächtler, W. Homberg, F. Walther, Improving the flow forming process by a novel closed-loop control, Materials Research Proceedings (2024) 1426–1435.

DOI: 10.21741/9781644903131-158

Google Scholar

[16] B. Podder, P. Banerjee, K.R. Kumar, N.B. Hui, Forward and reverse modelling of flow forming of solution annealed H30 aluminium tubes, Neural Computing and Applications 32 (2020) 2081–2093.

DOI: 10.1007/s00521-018-3749-x

Google Scholar

[17] J. Rozo Vasquez, L. Kersting, B. Arian, W. Homberg, A. Trächtler, F. Walther, Softsensor model of phase transformation during flow forming of metastable austenitic steel AISI 304L, in: J. Kusiak, Ł. Rauch, K. Regulski (Eds.), Numerical Methods in Industrial Forming Processes: Numiform 2023, Springer, Cham, (2024).

DOI: 10.1007/978-3-031-58006-2_10

Google Scholar

[18] B. Arian, W. Homberg, J. Rozo Vasquez, F. Walther, M. Riepold, A. Trächtler, Forming of metastable austenitic stainless steel tubes with axially graded martensite content by flow-forming, ESAFORM 2021 (2021).

DOI: 10.25518/esaform21.2759

Google Scholar

[19] T. Angel, Formation of martensite in austenitic stainless steels: Effects of deformation, temperature, and composition, Journal of the Iron and Steel Institute 177 (1954) 165–174.

Google Scholar

[20] G.B. Olson, M. Cohen, Kinetics of strain-induced martensitic nucleation, Metallurgical and Materials Transactions A 6A (1975) 791–795.

DOI: 10.1007/bf02672301

Google Scholar

[21] M. Riepold, B. Arian, J. Rozo Vasquez, W. Homberg, F. Walther, A. Trächtler, Model approaches for closed-loop property control for flow forming, Advances in Industrial and Manufacturing Engineering 3 (2021).

DOI: 10.1016/j.aime.2021.100057

Google Scholar

[22] M. Smaga, F. Walther, D. Eifler, Investigation and modelling of the plasticity-induced martensite formation in metastable austenites, International Journal of Materials Research 97 (2006) 1648–1655.

DOI: 10.3139/146.101396

Google Scholar

[23] F.A. Seiler, Error propagation for large errors, Risk Analysis 7 (1987) 509-518.

DOI: 10.1111/j.1539-6924.1987.tb00487.x

Google Scholar

[24] J.M. Allwood, S.R. Duncan, J. Cao, P. Groche, G. Hirt, B. Kinsey, T. Kuboki, M. Liewald, A. Sterzing, A.E. Tekkaya, Closed-loop control of product properties in metal forming, CIRP Annals 65 (2016) 573–596.

DOI: 10.1016/j.cirp.2016.06.002

Google Scholar

[25] L. Kersting, B. Arian, J. Rozo Vasquez, A. Trächtler, W. Homberg, F. Walther, Modellbasierter Entwurf und Validierung einer Eigenschaftsregelung für das Drückwalzen metastabiler Austenite, at - Automatisierungstechnik 73 (2025) 527–540.

DOI: 10.1515/auto-2024-0127

Google Scholar

[26] L. Kersting, B. Arian, J. Rozo Vasquez, A. Trächtler, W. Homberg, F. Walther, Echtzeitfähige Modellierung eines innovativen Drückwalzprozesses für die eigenschaftsgeregelte Bauteilfertigung, at - Automatisierungstechnik 71 (2023) 68–81.

DOI: 10.1515/auto-2022-0106

Google Scholar

[27] L. Kersting, B. Arian, J. Rozo Vasquez, A. Trächtler, W. Homberg, F. Walther, State-space modelling approach for control and observer design in property-controlled reverse flow forming, IFAC-PapersOnLine 59 (2025) 109–114.

DOI: 10.1016/j.ifacol.2025.03.020

Google Scholar

[28] C. Schulte, X. Li, D. Abel, G. Hirt, Model-based control of the strip roughness in cold rolling, IFAC-PapersOnLine 54 (2021) 109–114.

DOI: 10.1016/j.ifacol.2021.10.059

Google Scholar

[29] Y. Lim, R. Venugopal, A. Galip Ulsoy, Auto-tuning and adaptive control of sheet metal forming, Control Engineering Practice 20 (2012) 156–164.

DOI: 10.1016/j.conengprac.2011.10.006

Google Scholar

[30] K.J. Åström, T. Hägglund, C.C. Hang, W.K. Ho, Automatic tuning and adaptation for PID controllers - a survey, Control Engineering Practice 1 (1993) 699-714.

DOI: 10.1016/0967-0661(93)91394-C

Google Scholar

[31] A. Alessandri, M. Cuneo, S. Pagnan, M. Sanguineti, A recursive algorithm for nonlinear least-squares problems, Computational Optimization and Applications 38 (2007) 195–216.

DOI: 10.1007/s10589-007-9047-7

Google Scholar
