Local Reinforcement of SPIF-Formed Mg-Zn-Zr Alloy Thin Sheets by TIG Welding

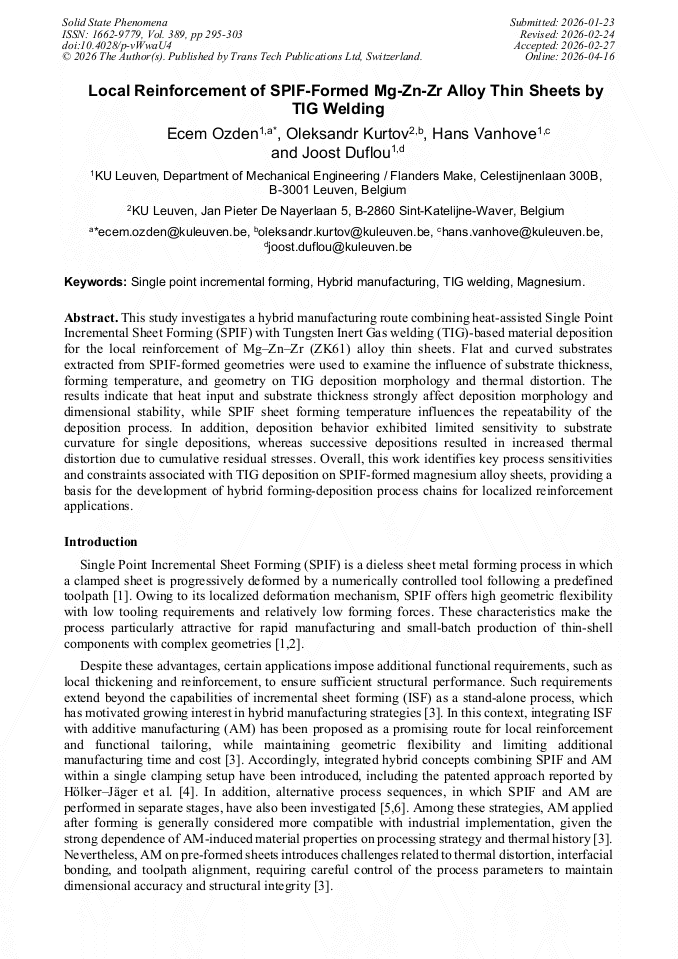

Article Preview
View Pdf By email

Abstract:

This study investigates a hybrid manufacturing route combining heat-assisted Single Point Incremental Sheet Forming (SPIF) with Tungsten Inert Gas welding (TIG)-based material deposition for the local reinforcement of Mg–Zn–Zr (ZK61) alloy thin sheets. Flat and curved substrates extracted from SPIF-formed geometries were used to examine the influence of substrate thickness, forming temperature, and geometry on TIG deposition morphology and thermal distortion. The results indicate that heat input and substrate thickness strongly affect deposition morphology and dimensional stability, while SPIF sheet forming temperature influences the repeatability of the deposition process. In addition, deposition behavior exhibited limited sensitivity to substrate curvature for single depositions, whereas successive depositions resulted in increased thermal distortion due to cumulative residual stresses. Overall, this work identifies key process sensitivities and constraints associated with TIG deposition on SPIF-formed magnesium alloy sheets, providing a basis for the development of hybrid forming-deposition process chains for localized reinforcement applications.

You have full access to the following eBook
Incremental and Sheet Metal Forming Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 389)

Pages:

295-303

DOI:

https://doi.org/10.4028/p-vWwaU4

Citation:

Cite this paper

Online since:

April 2026

Authors:

Ecem Ozden*, Oleksandr Kurtov, Hans Vanhove, Joost R. Duflou

Keywords:

Hybrid Manufacturing, Magnesium, Single Point Incremental Forming, TIG Welding

Funder:

The publication of this article was funded by the KU Leuven 10.13039/501100004040

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] J.R. Duflou, A.M. Habraken, J. Cao, R. Malhotra, M. Bambach, D. Adams, H. Vanhove, A. Mohammadi, J. Jeswiet, Single point incremental forming: state-of-the-art and prospects, Int. J. Mater. Form. 11 (2018) 743–773.

DOI: 10.1007/s12289-017-1387-y

Google Scholar

[2] A. Leonhardt, G. Kurz, J. Victoria-Hernández, V. Kräusel, D. Landgrebe, D. Letzig, Experimental study on incremental sheet forming of magnesium alloy AZ31 with hot air heating, Procedia Manuf. 15 (2018) 676–683.

DOI: 10.1016/j.promfg.2018.07.369

Google Scholar

[3] J. Hafenecker, D. Bartels, C.M. Kuball, M. Kreß, R. Rothfelder, M. Schmidt, M. Merklein, Hybrid process chains combining metal additive manufacturing and forming – A review, CIRP J. Manuf. Sci. Technol. 46 (2023) 238–259.

DOI: 10.1016/j.cirpj.2023.08.002

Google Scholar

[4] R. Hölker-Jäger, N.A. Ben Khalifa, E. Tekkaya, Method and device for the combined production of components by means of incremental sheet forming and additive methods in one clamping setup, EP Patent 3197633 A1 (2017).

Google Scholar

[5] G. Ambrogio, F. Gagliardi, M. Muzzupappa, L. Filice, Additive-incremental forming hybrid manufacturing technique to improve customised part performance, J. Manuf. Process. 37 (2019) 401–411.

DOI: 10.1016/j.jmapro.2018.12.008

Google Scholar

[6] C. López, A. Elías-Zúñiga, I. Jiménez, O. Martínez-Romero, H.R. Siller, J.M. Diabb, Experimental determination of residual stresses generated by single point incremental forming of AlSi10Mg sheets produced using SLM additive manufacturing process, Materials 11 (2018) 12.

DOI: 10.3390/ma11122542

Google Scholar

[7] D.E.P. Klenam, G.S. Ogunwande, T. Omotosho, B. Ozah, N.B. Maledi, S.I. Hango, A.A. Fabuyide, L. Mohlala, J.W. Van der Merwe, M.O. Bodunrin, Welding of magnesium and its alloys: An overview of methods and process parameters and their effects on mechanical behaviour and structural integrity of the welds, Manuf. Rev. 8 (2021) 1–24.

DOI: 10.1051/mfreview/2021028

Google Scholar

[8] S. Kou, Welding Metallurgy, 3rd ed., Wiley, Hoboken, NJ, 2021.

Google Scholar

[9] E. Ozden, H. Vanhove, A. Braem, J.R. Duflou, Heat-assisted single point incremental forming of Mg-Zn-Zr alloy, Mater. Res. Proc. 41 (2024) 1217–1224.

DOI: 10.21741/9781644903131-175

Google Scholar

[10] E. Ozden, O. Kurtov, H. Vanhove, J.R. Duflou, Effect of process parameters on local thickening of Mg-Zn-Zr alloy sheets in TIG welding, Mater. Res. Proc. 52 (2025) 281–288.

DOI: 10.21741/9781644903551-44

Google Scholar

[11] T. Zhang, C. Xu, J. Cheng, Y. Huang, Y. Peng, L. Wang, K. Wang, Study on droplet transfer behavior and spattering mechanism in Mg–Gd–Y–Zr alloy regulated short circuit (Fronius CMT) welding, J. Manuf. Process. 126 (2024) 35–47.

DOI: 10.1016/j.jmapro.2024.07.075

Google Scholar
