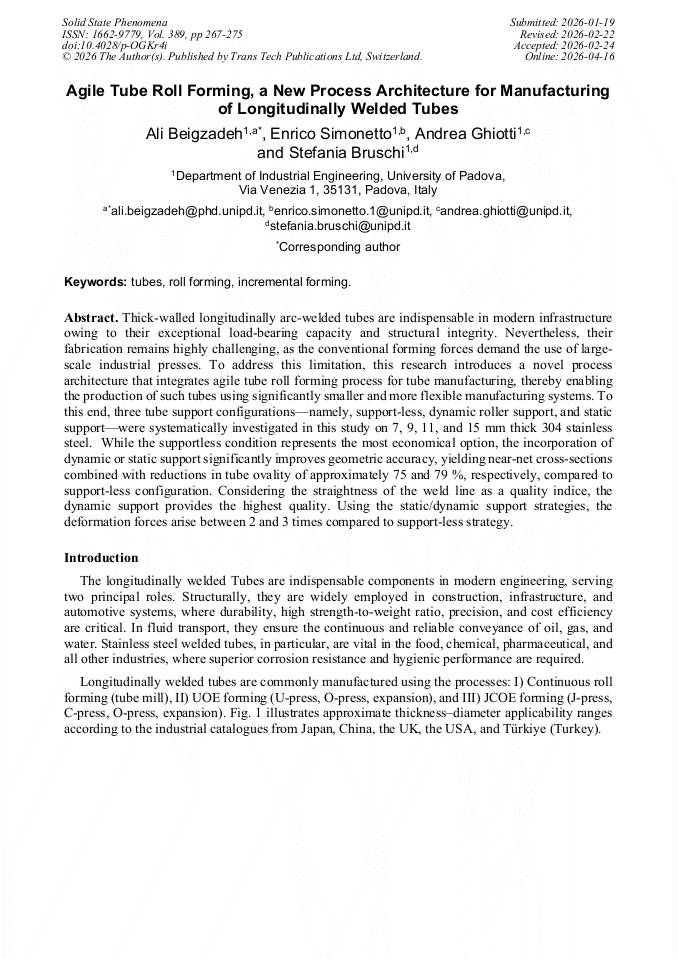

Agile Tube Roll Forming, a New Process Architecture for Manufacturing of Longitudinally Welded Tubes

Thick-walled longitudinally arc-welded tubes are indispensable in modern infrastructure owing to their exceptional load-bearing capacity and structural integrity. Nevertheless, their fabrication remains highly challenging, as the conventional forming forces demand the use of large-scale industrial presses. To address this limitation, this research introduces a novel process architecture that integrates agile tube roll forming process for tube manufacturing, thereby enabling the production of such tubes using significantly smaller and more flexible manufacturing systems. To this end, three tube support configurations—namely, support-less, dynamic roller support, and static support—were systematically investigated in this study on 7, 9, 11, and 15 mm thick 304 stainless steel. While the supportless condition represents the most economical option, the incorporation of dynamic or static support significantly improves geometric accuracy, yielding near-net cross-sections combined with reductions in tube ovality of approximately 75 and 79 %, respectively, compared to support-less configuration. Considering the straightness of the weld line as a quality indice, the dynamic support provides the highest quality. Using the static/dynamic support strategies, the deformation forces arise between 2 and 3 times compared to support-less strategy.

You have full access to the following eBook

Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 389)

Pages:

267-275

DOI:

https://doi.org/10.4028/p-OGKr4i

Citation:

Cite this paper

Online since:

April 2026

Authors:

Ali Beigzadeh*, Enrico Simonetto, Andrea Ghiotti, Stefania Bruschi

Keywords:

Incremental Forming, Roll Forming, Tubes

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Citation:

* - Corresponding Author

References

[1] Hofmann J, Becker M, Kubik C, Groche P. Machine learning based operator assistance in roll forming. Production Engineering 2025;19:283-94.

DOI: 10.1007/s11740-024-01311-0

Google Scholar

[2] Suckow T, Schroeder J, Groche P. Roll forming of a high strength AA7075 aluminum tube. Production Engineering 2021;15:573–86.

DOI: 10.1007/s11740-021-01046-2

Google Scholar

[3] Simonetto E, Ghiotti A, Bruschi S. Agile manufacturing of complex shaped bent profiles by incremental deformation. Manuf Lett 2023;36:40–3.

DOI: 10.1016/J.MFGLET.2023.01.004

Google Scholar

[4] Simonetto E, Beigzadeh A, Ghiotti A, Bruschi S. Manufacturing Letters Evaluation of the effect of forming strategy in newly introduced flexible roll forming process. vol. 41. 2024.

DOI: 10.1016/j.mfglet.2024.09.058

Google Scholar

[5] Beigzadeh A, Simonetto E, Ghiotti A, Bruschi S. Tool path effects on wrinkling in metal sheet incremental roll profiling. Materials Research Proceedings, vol. 41, Association of American Publishers; 2024, p.1446–55.

DOI: 10.21741/9781644903131-160

Google Scholar

[6] Essa A, Abeyrathna B, Rolfe B, Weiss M. Incremental shape rolling of a variable depth profile. J Mater Process Technol 2023;316.

DOI: 10.1016/j.jmatprotec.2023.117964

Google Scholar

[7] Simonetto E, Wang Q, Ghiotti A, Bruschi S. Forming Quality Indices for Tube Roll Forming: Definition and Modelling. Lecture Notes in Mechanical Engineering, Springer Science and Business Media Deutschland GmbH; 2024, p.569–76.

DOI: 10.1007/978-3-031-41023-9_57

Google Scholar

[8] Emami Satellou AA, Sedighi M. Effect of different roll-forming flower patterns on coiled tubing ovality and pressure performance. Geoenergy Science and Engineering 2023;225.

DOI: 10.1016/j.geoen.2023.211687

Google Scholar
