Finite Element Analysis of Flexible Roll Forming of Height Variable Profiles Made of Advanced High Strength DP980 Steel

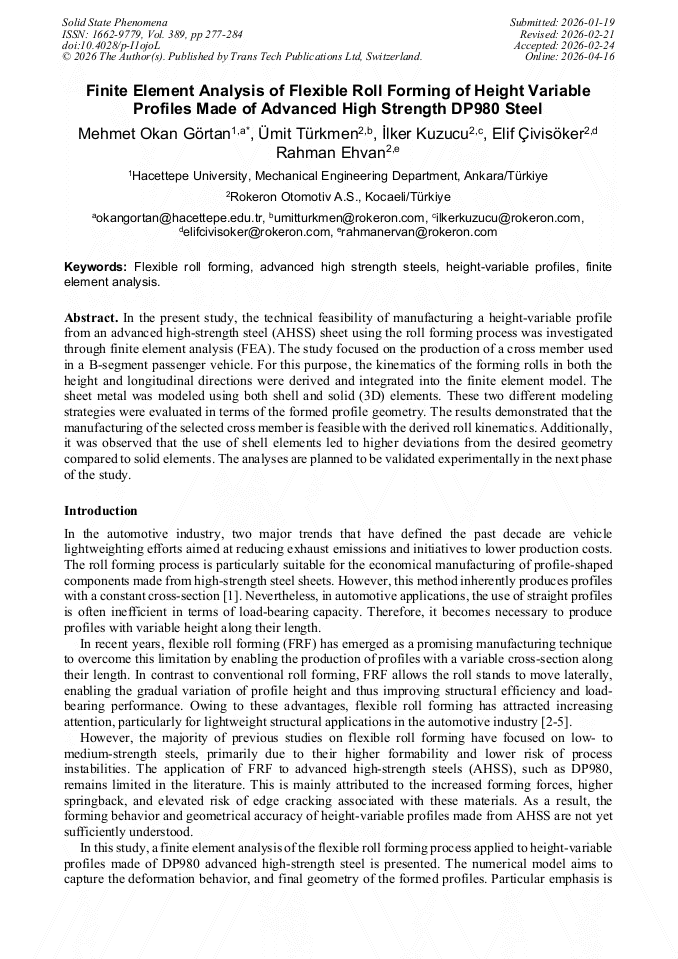

Article Preview
View Pdf By email

Abstract:

In the present study, the technical feasibility of manufacturing a height-variable profile from an advanced high-strength steel (AHSS) sheet using the roll forming process was investigated through finite element analysis (FEA). The study focused on the production of a cross member used in a B-segment passenger vehicle. For this purpose, the kinematics of the forming rolls in both the height and longitudinal directions were derived and integrated into the finite element model. The sheet metal was modeled using both shell and solid (3D) elements. These two different modeling strategies were evaluated in terms of the formed profile geometry. The results demonstrated that the manufacturing of the selected cross member is feasible with the derived roll kinematics. Additionally, it was observed that the use of shell elements led to higher deviations from the desired geometry compared to solid elements. The analyses are planned to be validated experimentally in the next phase of the study.

You have full access to the following eBook
Incremental and Sheet Metal Forming Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 389)

Pages:

277-284

DOI:

https://doi.org/10.4028/p-I1ojoL

Citation:

Cite this paper

Online since:

April 2026

Authors:

Mehmet Okan Görtan*, Ümit Türkmen, İlker Kuzucu, Elif Çivisöker, Rahman Ervan

Keywords:

Advanced High-Strength Steel, Finite Element Analysis, Flexible Roll Forming, Height-Variable Profiles

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] G.T. Halmos, (Ed.). Roll Forming Handbook, first ed., CRC Press, Boca Raton, 2005.

DOI: 10.1201/9781420030693

Google Scholar

[2] A.-O. Zettler, Grundlagen und Auslegungsmethoden für flexible Profilierprozesse, Dissertation TU Darmstadt, (2007).

Google Scholar

[3] T. Wang, P. Groche, Sheet Metal Profiles with Variable Height: Numerical Analyses on Flexible Roller Beading, J. Manuf. Mater. Process. 3 (2019) 19.

DOI: 10.3390/jmmp3010019

Google Scholar

[4] P. Groche, M. Storbeck, T. Wang, Continuous forming of height-variable beads by flexible roller beading. J. Adv. Manuf. Technol. 11 (2018) 5–8.

DOI: 10.1007/s00170-019-03670-w

Google Scholar

[5] H. Ona, R. Sho, T. Nagamachi, K Hoshi, Development of Flexible Cold Roll Forming Machine Controlled by PLC. Steel Res. Int. 81-9 (2010) 182–185.

Google Scholar

[6] A. Abvabi, B. Rolfe, P.D. Hodgson, M. Weiss, The influence of residual stress on a roll forming process, Int. J. Mech. Sci. 101-102 (2015) 124-136.

DOI: 10.1016/j.ijmecsci.2015.08.004

Google Scholar

[7] J. Cheng, J. Cao, Z. Wei, X. Wang, H. Zhu, R. Zhao, The precise control of end flare with residual stresses of UHSS thin-walled component in roll forming process, Ironmak. Steelmak. 50-9 (2023) 1372-1384.

DOI: 10.1080/03019233.2023.2212933

Google Scholar

[8] M. Moneke, P. Groche, The origin of end flare in roll formed profiles, Int. J. Mater. Form.14 (2021) 1439–1461.

DOI: 10.1007/s12289-021-01640-w

Google Scholar

[9] T. Traub, X. Chen, P. Groche, Experimental and numerical investigation of the bending zone in roll forming, Int. J. Mech. Sci. 131–132 (2017) 956–970.

DOI: 10.1016/j.ijmecsci.2017.07.056

Google Scholar

[10] T. Wang, P. Groche, An analytical model for designing defect‑free sheet metal profiles with height‑variable cross sections manufactured by Flexible Roller Beading, Int. J. Mater. Form. 15 (2022) 49.

DOI: 10.1007/s12289-022-01698-0

Google Scholar

[11] H. Wen, X. Liu, H. Li, Y. Cui, B. Yan, S. Huang, G. Wang, Research on cutting end flaring of C-shaped steel roll forming process, J. Mech. Sci. Technol. 39 (3) 2025 1365-1376.

DOI: 10.1007/s12206-024-1233-3

Google Scholar

[12] A. Gehring, Beurteilung der Eignung von metallischem Band und Blech zum Walzprofilieren. Dissertation, Karlsruhe, 2006.

Google Scholar

[13] J. L. Amilibia, Geometrical accuracy improvement in flexible roll forming process by means of local heating, Tesis Doctoral, Arrasate-Mondrago´n Unibertsitatea 2011.

Google Scholar
