Multi-Stage Roller Embossing of Bipolar Plate Microchannels Using 3D-Printed Tooling

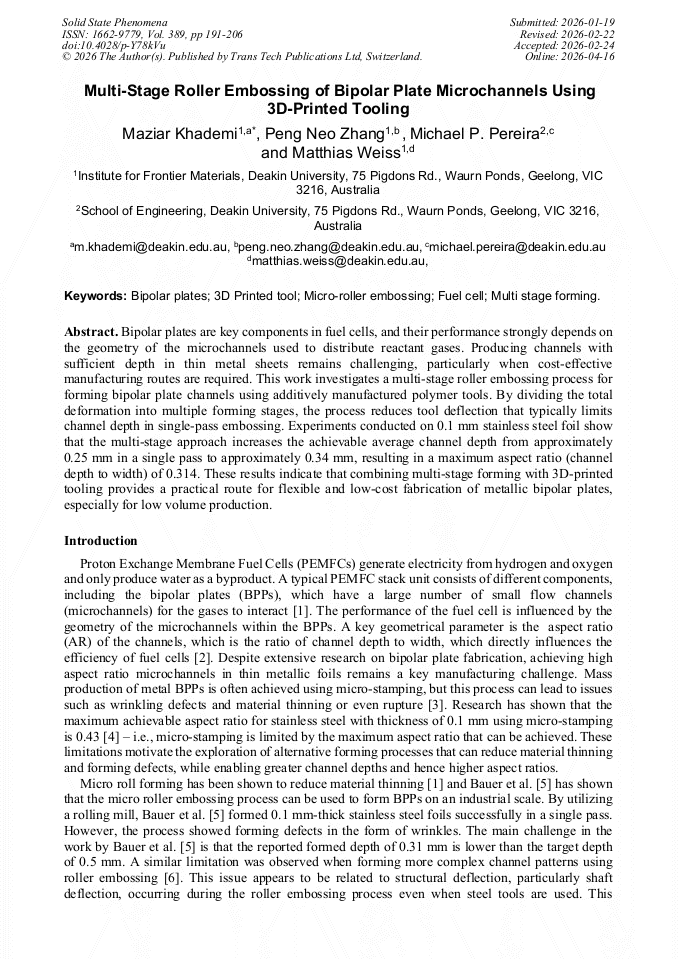

Article Preview
View Pdf By email

Abstract:

Bipolar plates are key components in fuel cells, and their performance strongly depends on the geometry of the microchannels used to distribute reactant gases. Producing channels with sufficient depth in thin metal sheets remains challenging, particularly when cost-effective manufacturing routes are required. This work investigates a multi-stage roller embossing process for forming bipolar plate channels using additively manufactured polymer tools. By dividing the total deformation into multiple forming stages, the process reduces tool deflection that typically limits channel depth in single-pass embossing. Experiments conducted on 0.1 mm stainless steel foil show that the multi-stage approach increases the achievable average channel depth from approximately 0.25 mm in a single pass to approximately 0.34 mm, resulting in a maximum aspect ratio (channel depth to width) of 0.314. These results indicate that combining multi-stage forming with 3D-printed tooling provides a practical route for flexible and low-cost fabrication of metallic bipolar plates, especially for low volume production.

You have full access to the following eBook
Incremental and Sheet Metal Forming Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 389)

Pages:

191-206

DOI:

https://doi.org/10.4028/p-Y78kVu

Citation:

Cite this paper

Online since:

April 2026

Authors:

Maziar Khademi*, Peng Neo Zhang, Michael P. Pereira, Matthias Weiss

Keywords:

3D Printed Tool, Bipolar Plates, Fuel Cell, Micro-Roller Embossing, Multi Stage Forming

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] P. Zhang, M. Pereira, B. Rolfe, W. Daniel, M. Weiss, Deformation in micro roll forming of bipolar plate, J. Phys.: Conf. Ser. 896 (2017) 012115.

DOI: 10.1088/1742-6596/896/1/012115

Google Scholar

[2] Yang, H., Jiang, T., Xu, Z., & Peng, L., A robust design of the forming process parameters of the metallic bipolar plate for proton exchange membrane fuel cells, Int. J. Hydrogen Energy 47 (2022) 41154–41169.

DOI: 10.1016/j.ijhydene.2022.09.186

Google Scholar

[3] M. Khademi, P. Zhang, M. Pereira, A. Sreenivas, M. Weiss, Finite element model for micro-stamping titanium bipolar plate, Mater. Res. Proc. 28 (2023) 1531–1540.

DOI: 10.21741/9781644902479-165

Google Scholar

[4] J.-Y. Koo, Y.-P. Jeon, C.-G. Kang, Effect of stamping load variation on deformation behaviour of stainless steel thin plate with microchannel, Proc. Inst. Mech. Eng. Part B: J. Eng. Manuf. 227 (2013) 1121–1128.

DOI: 10.1177/0954405412462673

Google Scholar

[5] A. Bauer, S. Härtel, B. Awiszus, Manufacturing of metallic bipolar plate channels by rolling, J. Manuf. Mater. Process. 3 (2019) 48.

DOI: 10.3390/jmmp3020048

Google Scholar

[6] Reuther, F., Dix, M., Kräusel, V., Psyk, V., & Porstmann, S., Model validation of hollow embossing rolling for bipolar plate forming, Int. J. Mater. Form. 17 (2024) 17.

DOI: 10.1007/s12289-023-01804-w

Google Scholar

[7] Z. Xu, Z. Li, R. Zhang, T. Jiang, L. Peng, Fabrication of micro channels for titanium PEMFC bipolar plates by multistage forming process, Int. J. Hydrogen Energy 46 (2021) 11092–11103.

DOI: 10.1016/j.ijhydene.2020.07.230

Google Scholar

[8] Q. Zhong, R. Hua, C. Wang, L. Cheng, Z. Ma, H. He, F. Chen, Investigation on three-stage stamping of micro-channels with titanium ultra-thin sheet used for PEM fuel cell bipolar plates, Int. J. Adv. Manuf. Technol. 127 (2023) 1377–1389.

DOI: 10.1007/s00170-023-11618-4

Google Scholar

[9] T. D. Ngo, A. Kashani, G. Imbalzano, K. T. Nguyen, D. Hui, Additive manufacturing (3D printing): a review of materials, methods, applications and challenges, Compos. Part B Eng. 143 (2018) 172–196.

DOI: 10.1016/j.compositesb.2018.02.012

Google Scholar

[10] I. Durgun, Sheet metal forming using FDM rapid prototype tool, Rapid Prototyp. J. 21 (2015) 412–422.

DOI: 10.1108/rpj-01-2014-0003

Google Scholar

[11] G. Schuh, G. Bergweiler, P. Bickendorf, F. Fiedler, C. Colag, Sheet metal forming using additively manufactured polymer tools, Procedia CIRP 93 (2020) 20–25.

DOI: 10.1016/j.procir.2020.04.013

Google Scholar

[12] P. Cyron, M. Beck, C. Karadogan, N. Nezic, M. Liewald, Prototype tooling for bipolar plates challenges additive manufacturing, Proc. TMS Annu. Meet. Exhib. (2024) Springer.

DOI: 10.1007/978-3-031-50349-8_18

Google Scholar

[13] P. Zhang, M. P. Pereira, B. F. Rolfe, D. E. Wilkosz, P. Hodgson, M. Weiss, Investigation of material failure in micro-stamping of metallic bipolar plates, J. Manuf. Process. 73(2022)54-66.

DOI: 10.1016/j.jmapro.2021.10.044

Google Scholar

[14] Information on https://formlabs.com/materials/.

Google Scholar

[15] Information on https://www.stratasys.com/en/materials/materials-catalog/fdm-materials/.

Google Scholar

[16] International, A., Annual Book of ASTM Standards, in ASTM D1621-16. 2016.

Google Scholar

[17] R. Zou, Y. Xia, S. Liu, P. Hu, W. Hou, Q. Hu, C. Shan, Isotropic and anisotropic elasticity and yielding of 3D printed material, Compos. Part B Eng. 99 (2016) 506–513.

DOI: 10.1016/j.compositesb.2016.06.009

Google Scholar

[18] A. Bhattacharjee, T. Loghmani, S. Anwar, Finite element simulation and analysis of drop tests to improve the mechanical design of a handheld QSTM medical device, Proc. ASME Int. Mech. Eng. Congr. Expo. (2022) ASME.

DOI: 10.1115/imece2022-95786

Google Scholar

[19] Y. Xu, L. Peng, P. Yi, X. Lai, Analysis of the flow distribution for thin stamped bipolar plates with tapered channel shape, Int. J. Hydrogen Energy 41 (2016) 5084–5095.

DOI: 10.1016/j.ijhydene.2016.01.073

Google Scholar

[20] A. Essa, B. Abeyrathna, B. Rolfe, M. Weiss, Incremental shape rolling of a variable depth profile, J. Mater. Process. Technol. 316 (2023) 117964.

DOI: 10.1016/j.jmatprotec.2023.117964

Google Scholar

[21] Z., Mehdiyev, C. Felhő, M. B. Maros, Investigation on production parameters of additively manufactured ABS polymer gears. Cut. Tools Technol. Syst., 97(2022) 91-102.

Google Scholar

[22] H. J. Bong, J. Lee, J. H. Kim, F. Barlat, M. G. Lee, Two-stage forming approach for manufacturing ferritic stainless steel bipolar plates in PEM fuel cell: Experiments and numerical simulations, Int. J. Hydrogen Energy 42 (2017) 6965–6977.

DOI: 10.1016/j.ijhydene.2016.12.094

Google Scholar

[23] M. T. Tran, D. H. Lee, H. W. Lee, D. K. Kim, Formability improvement in multi-stage stamping of ultra-thin metallic bipolar plate for proton exchange membrane fuel cell, Int. J. Hydrogen Energy 47 (2022) 40008–40025.

DOI: 10.1016/j.ijhydene.2022.09.163

Google Scholar
