Enhancement of Surface Plasmon Resonance in Bimetallic Thin Films

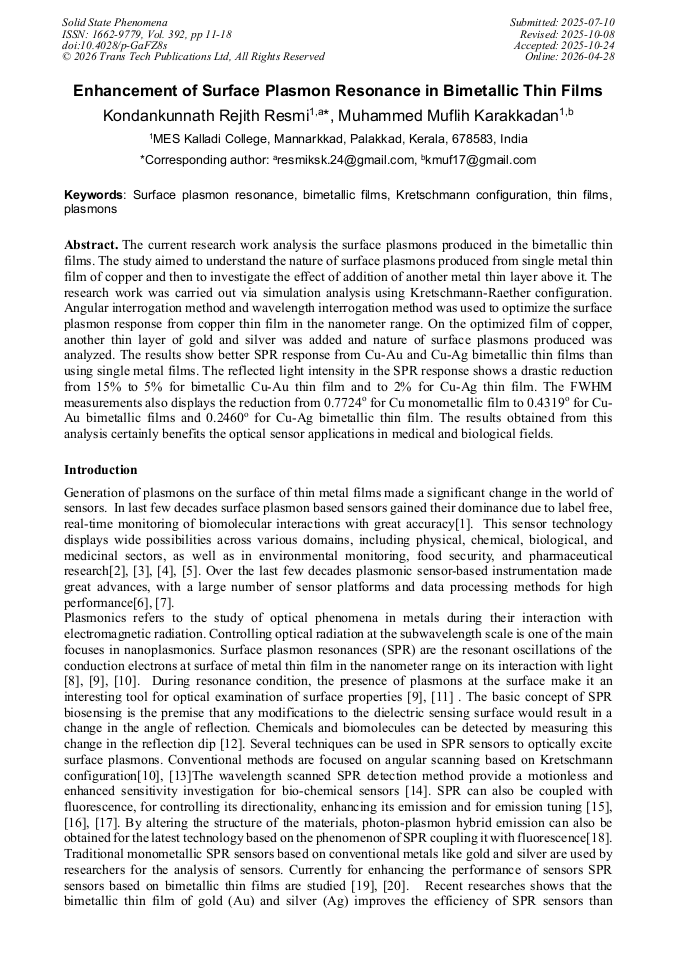

Article Preview

Abstract:

The current research work analysis the surface plasmons produced in the bimetallic thin films. The study aimed to understand the nature of surface plasmons produced from single metal thin film of copper and then to investigate the effect of addition of another metal thin layer above it. The research work was carried out via simulation analysis using Kretschmann-Raether configuration. Angular interrogation method and wavelength interrogation method was used to optimize the surface plasmon response from copper thin film in the nanometer range. On the optimized film of copper, another thin layer of gold and silver was added and nature of surface plasmons produced was analyzed. The results show better SPR response from Cu-Au and Cu-Ag bimetallic thin films than using single metal films. The reflected light intensity in the SPR response shows a drastic reduction from 15% to 5% for bimetallic Cu-Au thin film and to 2% for Cu-Ag thin film. The FWHM measurements also displays the reduction from 0.7724o for Cu monometallic film to 0.4319o for Cu-Au bimetallic films and 0.2460o for Cu-Ag bimetallic thin film. The results obtained from this analysis certainly benefits the optical sensor applications in medical and biological fields.

You might also be interested in these eBooks
Composites, Thin Films and Coatings View Preview

Info:

Periodical:

Solid State Phenomena (Volume 392)

Pages:

11-18

DOI:

https://doi.org/10.4028/p-GaFZ8s

Citation:

Cite this paper

Online since:

April 2026

Authors:

Kondankunnath Rejith Resmi*, Muhammed Muflih Karakkadan

Keywords:

Bimetallic Films, Kretschmann Configuration, Plasmons, Surface Plasmon Resonance, Thin Films

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] C. Boozer, G. Kim, S. Cong, H. Guan, and T. Londergan, "Looking towards label-free biomolecular interaction analysis in a high-throughput format: a review of new surface plasmon resonance technologies," Curr Opin Biotechnol, vol. 17, no. 4, p.400–405, 2006.

DOI: 10.1016/j.copbio.2006.06.012

Google Scholar

[2] C. Chen and J. Wang, "Optical biosensors: An exhaustive and comprehensive review," Analyst, vol. 145, no. 5, p.1605–1628, 2020.

DOI: 10.1039/c9an01998g

Google Scholar

[3] E. Mauriz, A. Calle, J. J. Manclus, A. Montoya, and L. M. Lechuga, "Multi-analyte SPR immunoassays for environmental biosensing of pesticides," Anal Bioanal Chem, vol. 387, no. 4, p.1449–1458, 2007.

DOI: 10.1007/s00216-006-0800-z

Google Scholar

[4] M. Pan, J. Yang, S. Li, G. Wang, J. Wang, and S. Wang, "Indirect competitive ELISA and colloidal gold-based immunochromatographic strip for amantadine detection in animal-derived foods," Analytical Methods, vol. 11, no. 15, p.2027–2032, 2019.

DOI: 10.1039/c8ay02806k

Google Scholar

[5] Y. Fang, "Ligand–receptor interaction platforms and their applications for drug discovery," Expert Opin Drug Discov, vol. 7, no. 10, p.969–988, 2012.

DOI: 10.1517/17460441.2012.715631

Google Scholar

[6] J. Homola, Surface plasmon resonance based sensors, vol. 4. Springer Science & Business Media, 2006.

Google Scholar

[7] G.G. Nenninger, M. Piliarik, and J. Homola, "Data analysis for optical sensors based on spectroscopy of surface plasmons," Meas Sci Technol, vol. 13, no. 12, p.2038, 2002.

DOI: 10.1088/0957-0233/13/12/332

Google Scholar

[8] S. G. Nelson, K. S. Johnston, and S. S. Yee, "High sensitivity surface plasmon resonace sensor based on phase detection," Sens Actuators B Chem, vol. 35, no. 1–3, p.187–191, 1996.

DOI: 10.1016/s0925-4005(97)80052-4

Google Scholar

[9] H. Raether, "Surface plasma oscillations as a tool for surface examinations," Surf Sci, vol. 8, no. 1–2, p.233–246, 1967.

DOI: 10.1016/0039-6028(67)90085-4

Google Scholar

[10] E. Kretschmann and H. Raether, "Radiative decay of non radiative surface plasmons excited by light," Zeitschrift für Naturforschung A, vol. 23, no. 12, p.2135–2136, 1968.

DOI: 10.1515/zna-1968-1247

Google Scholar

[11] E. N. Economou, "Surface plasmons in thin films," Physical review, vol. 182, no. 2, p.539, 1969.

Google Scholar

[12] Resmi Kondankunnath Rejith and Neerittilingal Anagha, "SENSITIVITY STUDIES OF COPPER THIN FILM-BASED BIOCHEMICAL SURFACE PLASMON RESONANCE SENSORS," International journal of creative research thoughts, vol. 13, no. 4, p.25–30, Apr. 2025.

Google Scholar

[13] E. Kretschmann and H. Raether, "Notizen: Radiative Decay of Non Radiative Surface Plasmons Excited by Light," Zeitschrift für Naturforschung A, vol. 23, no. 12, p.2135–2136, Dec. 1968.

DOI: 10.1515/zna-1968-1247

Google Scholar

[14] R.K. Rejith, A.P. Vijayan, and P. Kannan, "Investigation on the enhanced sensitivity of motionless wavelength scanned surface plasmon resonance for bio-chemical sensors," in AIP Conference Proceedings, 2023.

DOI: 10.1063/5.0179372

Google Scholar

[15] K.R. Resmi, V. Geetha, and P. Kannan, "Plasmon Coupled Emission Directionality and Emission Enhancement for Optical Biosensing," in Novel Optical Materials and Applications, 2020, pp. JTu4C–2.

DOI: 10.1364/noma.2020.jtu4c.2

Google Scholar

[16] K.R. Resmi, V. Geetha, and P. Kannan, "Plasmon-coupled emission tuning and emission enhancement for biosensor applications," Applied Physics Express, vol. 13, no. 7, p.72005, 2020.

DOI: 10.35848/1882-0786/ab9ba2

Google Scholar

[17] K.R. Resmi and P. Kannan, "Power dependent surface plasmon coupled emission studies of metal-dielectric-metal planar structure," Mater Today Proc, 2022.

DOI: 10.1016/j.matpr.2022.05.561

Google Scholar

[18] K.R. Resmi and P. Kannan, "Photon–plasmon hybrid emission and its emission tuning in metal–dielectric–metal planar microcavity," J Appl Phys, vol. 137, no. 21, 2025.

DOI: 10.1063/5.0252217

Google Scholar

[19] T. Srivastava, R. Jha, and R. Das, "High-performance bimetallic SPR sensor based on periodic-multilayer-waveguides," IEEE Photonics Technology Letters, vol. 23, no. 20, p.1448–1450, 2011.

DOI: 10.1109/lpt.2011.2162828

Google Scholar

[20] R. Kashyap et al., "Enhanced biosensing activity of bimetallic surface plasmon resonance sensor," in Photonics, 2019, p.108.

DOI: 10.3390/photonics6040108

Google Scholar

[21] R.S. Babu, H.R. Colenso, G.J. Gouws, B. Auguié, and C.P. Moore, "Performance enhancement of an Ag–Au bimetallic SPR sensor: a theoretical and experimental study," IEEE Sens J, vol. 23, no. 10, p.10420–10428, 2023.

DOI: 10.1109/jsen.2023.3265896

Google Scholar

[22] J. Zhu, "Surface plasmon resonance from bimetallic interface in Au–Ag core–shell structure nanowires," Nanoscale Res Lett, vol. 4, p.977–981, 2009.

DOI: 10.1007/s11671-009-9344-4

Google Scholar

[23] A. K. Sharma and B. D. Gupta, "On the performance of different bimetallic combinations in surface plasmon resonance based fiber optic sensors," J Appl Phys, vol. 101, no. 9, 2007.

DOI: 10.1063/1.2721779

Google Scholar

[24] H. Raether, "Excitation of Plasmons and Interband Transitions by Electrons, Springer," 1980.

Google Scholar

[25] G. R. Fowles, Introduction to modern optics. Courier Corporation, 1989.

Google Scholar

[26] D. Barchiesi et al., "Performance of surface plasmon resonance sensors using copper/copper oxide films: influence of thicknesses and optical properties," in Photonics, 2022, p.104.

DOI: 10.3390/photonics9020104

Google Scholar

[27] E. P. Rodrigues, L. C. Oliveira, M. L. F. Silva, C. S. Moreira, and A. M. N. Lima, "Surface plasmon resonance sensing characteristics of thin copper and gold films in aqueous and gaseous interfaces," IEEE Sens J, vol. 20, no. 14, p.7701–7710, 2020.

DOI: 10.1109/jsen.2020.2980388

Google Scholar

[28] S.-A. Jung et al., "Thickness dependence of surface plasmon resonance sensor response for metal ion detection," J Phys D Appl Phys, vol. 46, no. 31, p.315104, 2013.

DOI: 10.1088/0022-3727/46/31/315104

Google Scholar

[29] W. M. Mukhtar et al., "Effect of Noble Metal Thin Film Thicknesses on Surface Plasmon Resonance (SPR) Signal Amplification Surface Plasmon Resonance Sensor View project Tapered Optical Fiber Sensor View project Effect of Noble Metal Thin Film Thicknesses on Surface Plasmon Resonance (SPR) Signal Amplification," Journal of Advanced Research in Materials Science, vol. 49, p.1–9, 2018, [Online]. Available: www.akademiabaru.com/arms.html

DOI: 10.1007/springerreference_33044

Google Scholar
