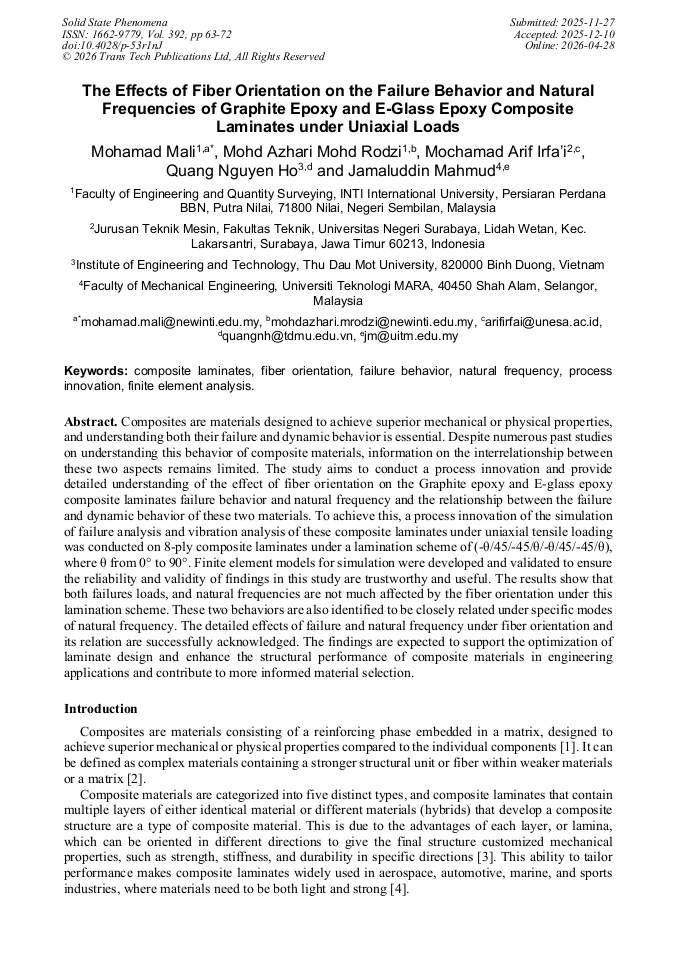

The Effects of Fiber Orientation on the Failure Behavior and Natural Frequencies of Graphite Epoxy and E-Glass Epoxy Composite Laminates under Uniaxial Loads

Abstract:

Composites are materials designed to achieve superior mechanical or physical properties, and understanding both their failure and dynamic behavior is essential. Despite numerous past studies on understanding this behavior of composite materials, information on the interrelationship between these two aspects remains limited. The study aims to conduct a process innovation and provide detailed understanding of the effect of fiber orientation on the Graphite epoxy and E-glass epoxy composite laminates failure behavior and natural frequency and the relationship between the failure and dynamic behavior of these two materials. To achieve this, a process innovation of the simulation of failure analysis and vibration analysis of these composite laminates under uniaxial tensile loading was conducted on 8-ply composite laminates under a lamination scheme of (-θ/45/-45/θ/-θ/45/-45/θ), where θ from 0° to 90°. Finite element models for simulation were developed and validated to ensure the reliability and validity of findings in this study are trustworthy and useful. The results show that both failures loads, and natural frequencies are not much affected by the fiber orientation under this lamination scheme. These two behaviors are also identified to be closely related under specific modes of natural frequency. The detailed effects of failure and natural frequency under fiber orientation and its relation are successfully acknowledged. The findings are expected to support the optimization of laminate design and enhance the structural performance of composite materials in engineering applications and contribute to more informed material selection.

• Periodical: Solid State Phenomena (Volume 392)
• Pages: 63-72
• DOI: https://doi.org/10.4028/p-53r1nJ
• Online since: April 2026
• Authors: Mohamad Bin Mali*, Mohd Azhari Mohd Rodzi, Mochamad Arif Irfa'i, Nguyen Ho Quang, Jamaluddin Mahmud
• Keywords: Composite Laminates, Failure Behavior, Fiber Orientation, Finite Element Analysis, Natural Frequency, Process Innovation

References

[1] W. D. Callister and D. G. Rethwisch, Materials science and engineering: An introduction (10th ed.), Wiley. (2018).

[2] O. M. Ikumapayi, O. T. Laseinde, T. S. Ogedengbe, A. O. Akinwumi, J. R. Oluwafemi, S. A. Akinlabi and E. T. Akinlabi, An overview of composites materials and their machinability in transport industries, E35 Web Conf., 391, 01090. (2023).

DOI: 10.1051/e3sconf/202339101090

[3] M. Mali, A. H. Samsudin, J. Mahmud and A. K. Hussain, Failure analysis of composite laminates under biaxial tensile load due to variations in lamination scheme, Journal of Mechanical Engineering, SI 4(5), 167-182. (2017).

[4] O. David-West, The Effect of Hybridisation on Carbon and Glass Fibres Reinforced Composites Under Quasi-Static Loading, Journal of Mechanical Engineering, 19(3), 1-17. (2022).

DOI: 10.24191/jmeche.v19i3.19793

[5] S. R. Nalaeram, S. M. K. Thiagamani, A. Khan and N. Ayrilmis, Isolation and characterization of Banyan tree root filler for polymer composites in lightweight application, Mater. Res. Express 11, 065301. (2024).

DOI: 10.1088/2053-1591/ad5141

[6] I. A. Ja'e, Z. C. Muda, A. Syamsir, C. V. Amechi, H. Almujibah, A. E. A. Elshekh, M. O. Bahsir and A. H. Almaliki, Structural performance of lightweight fibre-reinforced oil palm shell concrete subjected to impact loading under varying boundary conditions, Case Studies in Construction Materials, 22, e04240. (2025).

DOI: 10.1016/j.cscm.2025.e04240

[7] A. H. Samsudin and J. Mahmud, The effect of lamination scheme and angle variations to the displacements and failure behaviour of composite laminate, Jurnal Teknologi (Sciences & Engineering), 76(11), 113-121. (2015).

DOI: 10.11113/jt.v76.5921

[8] A. Muc, Natural frequencies of rectangular laminated plates-Introduction to optimal design in aeroelastic problems, Aerospace 5(3), 95. (2018).

DOI: 10.3390/aerospace5030095

[9] F. Tornabene, N. Fantuzzi, M. Bacciocchi and E. Viola, Higher-order theories for the free vibrations of doubly-curved laminated panels with curvilinear reinforcing fibers by means of a local version of the GDQ method. Compos. Part B Eng., 81, 196–230. (2015).

DOI: 10.1016/j.compositesb.2015.07.012

[10] F. Tornabene, N. Fantuzzi and M. Bacciocchi, Foam core composite sandwich plates and shells with variable stiffness: Effect of the curvilinear fiber path on the modal response. Journal of Sandwich Structures & Materials. 21(1), 320-365. (2017).

DOI: 10.1177/1099636217693623

[11] A. A. A. Taredi, M. N. A. A. Patar, and J. Mahmud, The Effects of Fibre Angle Orientation to the Failure Behaviour and Natural Frequencies of Graphite/Epoxy Laminates Under Uniaxial Tension. Proceeding of 6th International Conference on Advances in Manufacturing and Materials Engineering. ICAMME 2024. Lecture Notes in Mechanical Engineering, 197–203. (2024).

DOI: 10.1007/978-981-96-3814-7_27

[12] S.A Suhaime, M.N.A.A. Patar, Y. Zhu, Y., A.P.P.A. Majeed and J. Mahmud. (2025). The Effects of Fibre Angle Orientation on the Failure Behaviour and Natural Frequencies of Kevlar Epoxy and Glass Epoxy Composite Laminates Under Uniaxial Tension. Lecture Notes in Networks and Systems, 1316, 739–749. (2025).

DOI: 10.1007/978-981-96-3949-6_61

[13] N. N. Noh, A. H. Samsudin, J. Mahmud, Failure analysis of glass/epoxy and graphite/epoxy laminates due to the effect of variation in lamination scheme and angle of fibre orientation, Material Science Forum 889, 36-44, (2017).

DOI: 10.4028/www.scientific.net/msf.889.36

[14] P. Pingulkar, B. Suresha, Free vibration analysis of laminated composite plates using finite element method, Polym. Compos. 24 (7) 529-538. (2016).

DOI: 10.1177/096739111602400712
