Impact of Embedded System-Based Automatic Spin Coating Machine in the Growth of Pure Zinc Oxide and Magnesium Doped Zinc Oxide Thin Films for LPG Gas Sensing Application

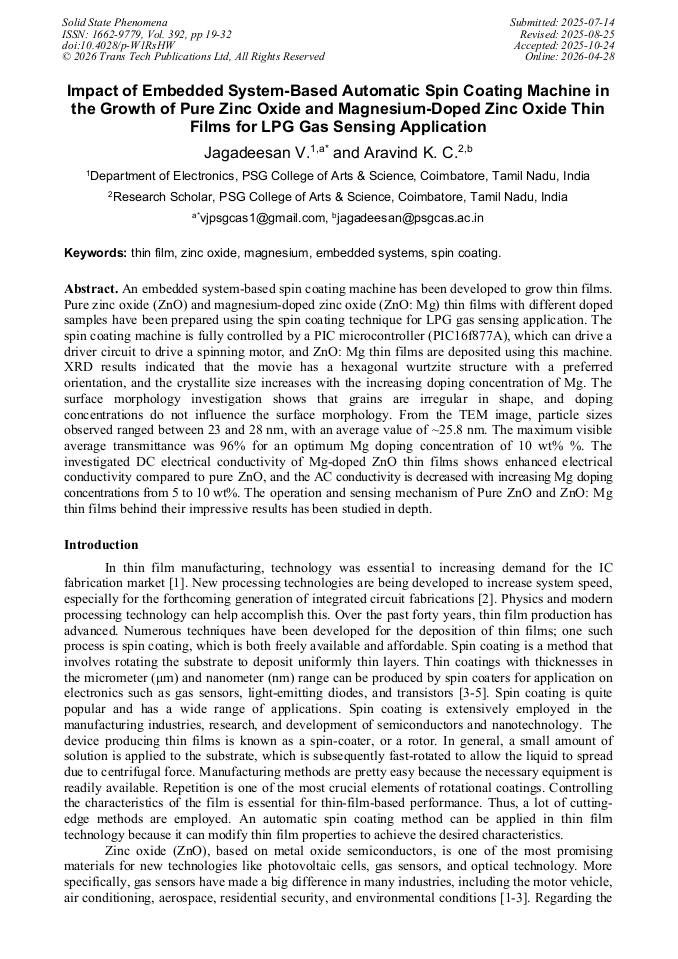

Article Preview

Abstract:

An embedded system-based spin coating machine has been developed to grow thin films. Pure zinc oxide (ZnO) and magnesium-doped zinc oxide (ZnO: Mg) thin films with different doped samples have been prepared using the spin coating technique for LPG gas sensing application. The spin coating machine is fully controlled by a PIC microcontroller (PIC16f877A), which can drive a driver circuit to drive a spinning motor, and ZnO: Mg thin films are deposited using this machine. XRD results indicated that the movie has a hexagonal wurtzite structure with a preferred orientation, and the crystallite size increases with the increasing doping concentration of Mg. The surface morphology investigation shows that grains are irregular in shape, and doping concentrations do not influence the surface morphology. From the TEM image, particle sizes observed ranged between 23 and 28 nm, with an average value of ~25.8 nm. The maximum visible average transmittance was 96% for an optimum Mg doping concentration of 10 wt% %. The investigated DC electrical conductivity of Mg-doped ZnO thin films shows enhanced electrical conductivity compared to pure ZnO, and the AC conductivity is decreased with increasing Mg doping concentrations from 5 to 10 wt%. The operation and sensing mechanism of Pure ZnO and ZnO: Mg thin films behind their impressive results has been studied in depth.

You might also be interested in these eBooks
Composites, Thin Films and Coatings View Preview

Info:

Periodical:

Solid State Phenomena (Volume 392)

Pages:

19-32

DOI:

https://doi.org/10.4028/p-W1RsHW

Citation:

Cite this paper

Online since:

April 2026

Authors:

V. Jagadeesan*, K.C. Aravind

Keywords:

Embedded Systems, Magnesium, Spin Coating, Thin Film, Zinc Oxide

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] Siregar, N., Marlianto, E., Gea, S., Motlan, The Effect of Structure Concentration and Optical Properties of Thin Films Synthesized by Sol-gel Methods, Spin Coating. International Journal of Sciences: Basic And Applied Research, (2015).

Google Scholar

[2] Suwanboon, S., Tanattha, R., and Tanakorn, R. Fabrication And Properties Of Nanocrystalline Zinc Oxide Thin Film Prepared By Sol-Gel Method. Songklanakarin journal of Science and technology. 30(1) (2008) 65-69.

Google Scholar

[3] Mitra, P. and Modal, S. Structural and Morphological Characterization of ZnO thin Films Synthesized by SILAR. Progress in Theoretical and Applied Physics Vol 1, (2013).

Google Scholar

[4] Nkrumah, I., Ampong, F.K., Kwakye-Awuah, B., Nkum, R.K., Boakye, Synthesis and Characterization of ZnO Thin Films Deposited by Chemical Bath Technique, International Journal of Research in Engineering and Technology. Vol. 02, (2013).

DOI: 10.15251/cl.2023.203.205

Google Scholar

[5] Saravanakumar, M., Agilan, S. and Muthukumarasamy, N., Effect of Annealing Temperature on Characterization of ZnO thin films by sol-gel method, International Journal of Chem Tech Research Coden (USA): Vol 6 No 5, (2014).

Google Scholar

[6] Fattah, Z.A., Synthesis and Characterization Of Nickel Doped Zinc Oxide Nanoparticles by Sol–Gel Method, International Journal Of Engineering Sciences & Research Technology., (2016), 2277-9655.

Google Scholar

[7] Etacheri V., Roshan R., Kumar V., Mg-doped ZnO nanoparticles for efficient sunlight-driven photocatalysis. ACS Appl Mater Interfaces ;4:2717–25, (2012).

DOI: 10.1021/am300359h

Google Scholar

[8] Sengupta J., Ahmed A., Labar R., Structural and optical properties of post-annealed Mg-doped ZnO thin films deposited by the sol-gel method. Mater Chem Phys;109:265–8, (2013).

DOI: 10.1016/j.matlet.2013.07.104

Google Scholar

[9] S. Luis, L.M. David1, G.H. Víctor, R. Dabirian, Mechanical and Electronic Systems of an Open Source Based Spin and Dip Coater, Revista Politécnica, Vol . 37, (2016) 37-48.

Google Scholar

[10] Mohammad Meftahul Ferdaus, M.M. Rashid, and Mohammad AtaurRahman, Design and Fabrication of a Simple Cost-Effective Spin Coater for Deposition of Thin Film, Advances in Environmental Biology, Vol . 8, (2014) 729-733.

Google Scholar

[11] M. M. Ferdaus, M.F. Hossain, M.S. Islam, and SharikRahatRuslan, Cost-Effective Home-Made Spin Coater for Depositing Thin Films", Journal of Modern Science and Technology, vol. 1, (2013) 126-134.

Google Scholar

[12] A. Erol, S. Okur, B. Comba, Ö. Mermer, and M. Ç. Arıkan, Humidity sensing properties of ZnO nanoparticles synthesized by sol–gel process, Sensors and Actuators B: Chemical, vol. 145, no. 1, (2010) 174–180.

DOI: 10.1016/j.snb.2009.11.051

Google Scholar

[13] M. Rashid, M. Ikram, A. Haider et al., Photocatalytic, dye degradation, and bactericidal behavior of Cu-doped ZnO nanorods and their molecular docking analysis, Dalton Transactions, vol. 49, (2020) 8314–8330.

DOI: 10.1039/d0dt01397h

Google Scholar

[14] J. Xu, S. Li, L. Li, L. Chen, and Y. Zhu, Facile fabrication and superior gas sensing properties of spongelike Co-doped ZnO microspheres for ethanol sensors, Ceramics International, vol. 44, no. 14, (2018), 16773–16780.

DOI: 10.1016/j.ceramint.2018.06.110

Google Scholar

[15] N. J. Ridha, H. B. A. Kadhim, F. K. M. Alosfur, and R. T. Ahmed, ZnO nanofluids prepared by laser ablation in various solvents," Materials Research Express, vol. 5, no. 12, (2018) 125008.

DOI: 10.1088/2053-1591/aae010

Google Scholar

[16] V. K. Samoei and A. H. Jayatissa, Aluminum doped zinc oxide (AZO)-based pressure sensor," Sensors and Actuators A: Physical, vol. 303, (2020) 111816.

DOI: 10.1016/j.sna.2019.111816

Google Scholar

[17] S. Jaballah, M. Benamara, H. Dahman et al., Effect of Mg-doping ZnO nanoparticles on detection of low ethanol concentrations, Materials Chemistry and Physics, vol. 255, (2020) 123643.

DOI: 10.1016/j.matchemphys.2020.123643

Google Scholar

[18] A. J. Kulandaisamy, J. R. Reddy, P. Srinivasan et al., Room temperature ammonia sensing properties of ZnO thin films grown by spray pyrolysis: effect of Mg doping, Journal of Alloys and Compounds, vol. 688, (2016) 422–429.

DOI: 10.1016/j.jallcom.2016.07.050

Google Scholar

[19] D.C. Look, Recent advances in ZnO materials and devices, Materials Science and Engineering B: Solid-State Materials for Advanced Technology, vol. 80, no. 1-3, (2001), 383-387.

DOI: 10.1016/s0921-5107(00)00604-8

Google Scholar

[20] S.B. Ogale, R.J. Choudhary, J.P. Buban, S.E. Lofland, S.R. Shinde, S.N. Kale, V.N. Kulkarni, J. Higgins, C. Lanci, J.R. Simpson, N.D. Browning, S.D. Sarma, H.D. Drew, R.L. Greene and T. Venkatesan, J. Phys. Rev. Lett., 91, 077205 (2003).

DOI: 10.1063/1.1610796

Google Scholar

[21] Mir FA, Batoo KM (2016) Effect of Ni and Au ion irradiations on structural and optical properties of nanocrystalline Sb-doped SnO2 thin films. Appl Phys A 122:418.

DOI: 10.1007/s00339-016-9948-3

Google Scholar

[22] Shan FK, Kim BI, Liu GX, Liu ZF, Sohn JY, Lee WJ, et al., Blueshift of near band edge emission in Mg doped ZnO thin films and aging, J Appl Phys 2004;95:4772 6, (2004).

DOI: 10.1063/1.1690091

Google Scholar

[23] Khajuri S, Sanotra S, Lado J, Sheikh HN. Synthesis, characterization and optical properties of cobalt and lanthanide doped CdS nanoparticles. J Mater Sci Mater Electron. 2015;26:7073–7080.

DOI: 10.1007/s10854-015-3328-1

Google Scholar

[24] Studenikin, S. A., Nickolay Golego, and Michael Cocivera, Carrier mobility and density contributions to photoconductivity transients in polycrystalline ZnO films, Journal of Applied Physics 87, no. 5, (2000), 2413-2421.

DOI: 10.1063/1.372194

Google Scholar

[25] V Jagadeesan, A Rani Sangeetha, and P Anitha, Influence of Zinc Doping on the Structural, Morphological, Optical and Electrical Properties of Copper Oxide Thin Films Prepared by Jet-Nebulizer Spray Pyrolysis Technique, IOP Conf. Ser.: Mater. Sci. Eng. (2021) 1166 012047.

DOI: 10.1088/1757-899X/1166/1/012047

Google Scholar

[26] Jagadeesan, V., Subramaniam, V, Impact of molarity on structural, optical, morphological, and electrical properties of copper oxide thin films prepared by cost-effective jet nebulizer spray pyrolysis technique. J Mater Sci: Mater Electron 30, (2019) 1571–1578.

DOI: 10.1007/s10854-018-0428-8

Google Scholar

[27] V Jagadeesan and Venkat Subramaniam, Development of an Automated Nebulizer Spray Pyrolysis System and Its Application in the P-N junction Diode Fabrication J. Phys.: Conf. Ser. (2021) 1921 012009.

DOI: 10.1088/1742-6596/1921/1/012009

Google Scholar

[28] V Jagadeesan, Venkat Subramaniam, Comparison studies of Zn-doped CuO thin films deposited by manual and automated nebulizer-spray pyrolysis systems and their application in heterojunction-diode fabrication, Journal of Sol-Gel Science and Technology, 102, 3, (2022) 614-627.

DOI: 10.1007/s10971-021-05624-9

Google Scholar

[29] R Sakthivel, A Geetha, B A Anandh, V Jagadeesan, A Shankar Ganesh and J Dineshkumar, " Design of MoS2/graphene heterostructure thin film sensors for high performance NO2 gas sensor applications", J. Phys.: Conf. Ser. 2070 012131, (2021).

DOI: 10.1088/1742-6596/2070/1/012131

Google Scholar

[30] P. P. Sahay and R. K. Nath, "Al-doped zinc oxide thin films for liquid petroleum gas (LPG) sensors," Sensors and Actuators B, vol. 133, no. 1, (2008) 222–227.

DOI: 10.1016/j.snb.2008.02.014

Google Scholar

[31] T. Chen, Q.J. Liu, Z.L. Zhou, Y.D. Wang, "A high sensitivity gas sensor for formaldehyde based on CdO and In2O3 doped nanocrystalline SnO2" Nanotechnology 19 (2008) 095506 (5pp).

DOI: 10.1088/0957-4484/19/9/095506

Google Scholar

[32] Madhuri D. Gonugade et al, Enhanced LPG Sensing Properties of Nanograined ZnO Films: Effect of Pd Sensitization, Macromol. Symp. (2021).

Google Scholar

[33] Vinoth Kumar Jayaraman n , Arturo Maldonado Álvarez, María de la Luz Olvera Amador, A simple and cost-effective zinc oxide thin film sensor for propane gas detection, Materials Letters 157, (2015), 169-171.

DOI: 10.1016/j.matlet.2015.05.065

Google Scholar

[34] Chuang et al., A Study of MgZnO Thin Film for Hydrogen Sensing Application, Materials 17 (2024).

Google Scholar
