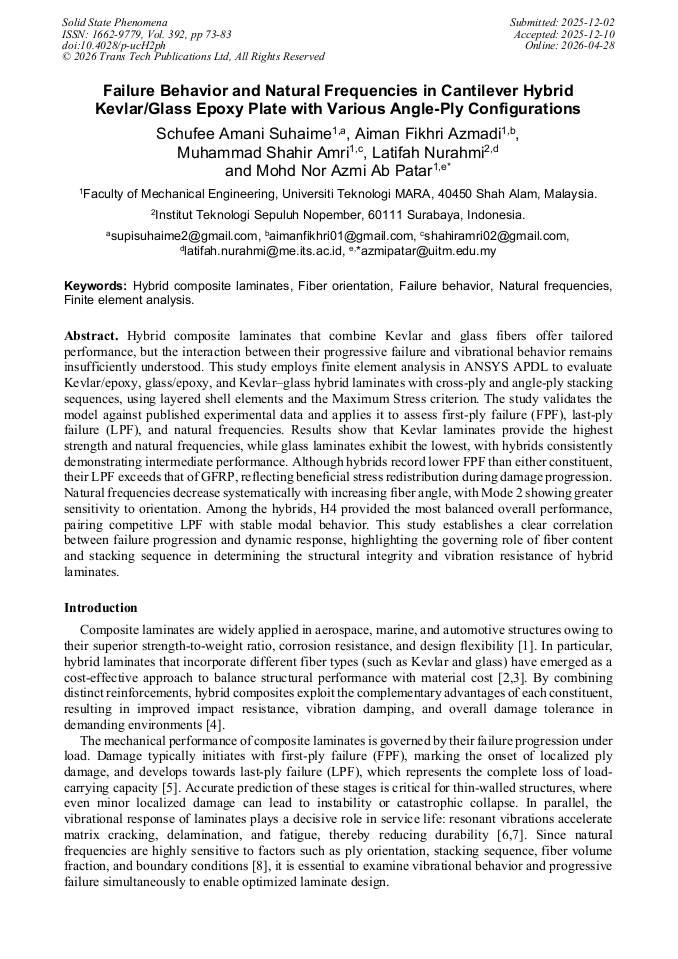

Failure Behavior and Natural Frequencies in Cantilever Hybrid Kevlar/Glass Epoxy Plate with Various Angle-Ply Configurations

Abstract:

Hybrid composite laminates that combine Kevlar and glass fibers offer tailored performance, but the interaction between their progressive failure and vibrational behavior remains insufficiently understood. This study employs finite element analysis in ANSYS APDL to evaluate Kevlar/epoxy, glass/epoxy, and Kevlar–glass hybrid laminates with cross-ply and angle-ply stacking sequences, using layered shell elements and the Maximum Stress criterion. The study validates the model against published experimental data and applies it to assess first-ply failure (FPF), last-ply failure (LPF), and natural frequencies. Results show that Kevlar laminates provide the highest strength and natural frequencies, while glass laminates exhibit the lowest, with hybrids consistently demonstrating intermediate performance. Although hybrids record lower FPF than either constituent, their LPF exceeds that of GFRP, reflecting beneficial stress redistribution during damage progression. Natural frequencies decrease systematically with increasing fiber angle, with Mode 2 showing greater sensitivity to orientation. Among the hybrids, H4 provided the most balanced overall performance, pairing competitive LPF with stable modal behavior. This study establishes a clear correlation between failure progression and dynamic response, highlighting the governing role of fiber content and stacking sequence in determining the structural integrity and vibration resistance of hybrid laminates.

• Periodical: Solid State Phenomena (Volume 392)
• Pages: 73-83
• DOI: https://doi.org/10.4028/p-ucH2ph
• Online since: April 2026
• Authors: Schufee Amani Suhaime*, Aiman Fikhri Azmadi, Muhammad Shahir Amri, Latifah Nurahmi, Mohd Nor Azmi bin Ab Patar
• Keywords: Failure Behavior, Fiber Orientation, Finite Element Analysis, Hybrid Composite Laminates, Natural Frequencies

References

[1] Reddy, J.N., Mechanics of Laminated Composite Plates and Shells: Theory and Analysis, 2nd ed., CRC Press, 2004.

[2] Li, M., Liu, Y., Xu, X., Zhang, H., Chen, Y., Effect of hybridisation on free vibration response of carbon/glass hybrid composite laminates, Journal of Reinforced Plastics and Composites, 43(13–14), 818–830 (2024).

DOI: 10.1177/07316844231197298

[3] Erklig, A., Bulut, M., Yeter, E., The effect of hybridisation and boundary conditions on damping and free vibration of composite plates, Science and Engineering of Composite Materials, 22(5), 565–571 (2015).

DOI: 10.1515/secm-2014-0070

[4] David-West, O.S., The effect of hybridisation on carbon and glass fibres reinforced composites under quasi-static loading, Journal of Mechanical Engineering, 19(3), 1–17 (2022).

DOI: 10.24191/jmeche.v19i3.19793

[5] Tolson, S., Zabaras, N., Finite element analysis of progressive failure in laminated composite plates, Computers & Structures, 38(3), 361–376 (1991).

DOI: 10.1016/0045-7949(91)90113-z

[6] Crawley, E.F., The natural modes of graphite/epoxy cantilever plates and shells, Journal of Composite Materials, 13(3), 195–205 (1979).

DOI: 10.1177/002199837901300302

[7] Chaudhary, S.K., Kar, V.R., Shukla, K.K., Free vibration behaviour of laminated composite panel with centre circular cut-out, AIP Conf. Proc., 2341(1), 020050 (2021).

DOI: 10.1063/5.0050232

[8] Mat Norman, M.A., Mohd Razean, M.R., Rosaidi, M.H.M., Ismail, M.S., Mahmud, J., Effect of fibre volume on the natural frequencies of laminated composite plate, Materials Today: Proceedings, 75(4), 133–139 (2023).

DOI: 10.1016/j.matpr.2022.10.245

[9] Falkowicz, K., Experimental and numerical failure analysis of thin-walled composite plates using progressive failure analysis, Composite Structures, 305, 116474 (2023).

DOI: 10.1016/j.compstruct.2022.116474

[10] Cao, Y., et al., Mesoscale modelling of progressive damage and failure in thin-ply laminated composite bolted joints, Composite Structures, 316, 117046 (2023).

DOI: 10.1016/j.compstruct.2023.117046

[11] Rosaidi, M.H.M., Mahmud, J., Patar, M.N.A.A., Natural frequencies optimisation of hybrid composite laminates using response surface method, Journal of Advanced Research in Applied Sciences and Engineering Technology, 31(2), 197–209 (2023).

DOI: 10.37934/araset.31.2.197209

[12] Suhaime, S.A., Ab Patar, M.N.A., Zhu, Y., Abdul Majeed, A.P.P., Mahmud, J., The effects of fibre angle orientation on failure behaviour and natural frequencies of Kevlar and glass epoxy laminates, in: Proceedings of ICIMR 2024, Springer LNME, p.739–749 (2025).

DOI: 10.1007/978-981-96-3949-6_61

[13] Bulut, M., Erklig, A., Yeter, E., Experimental investigation on influence of Kevlar fibre hybridisation on tensile and damping response of Kevlar/glass/epoxy laminates, Journal of Composite Materials, 50(14), 1875–1886 (2015).

DOI: 10.1177/0021998315597552

[14] Norman, M.A.M., Sivakumar, K., Ab Patar, M.N.A., Mahmud, J., A prediction model for natural frequencies on Kevlar/glass hybrid laminated composites using ANN, International Journal of Integrated Engineering, 14(5), 207–214 (2022).

DOI: 10.30880/ijie.2022.14.05.023

[15] Taredi, A.A., Ab Patar, M.N., Mahmud, J., Natural frequencies prediction of hybrid composite laminates using FEM and ANN, in: Proceedings of IEEE SCOReD 2024, p.186–191 (2024).

DOI: 10.1109/scored64708.2024.10872682
