Research and Analysis of a Laser-Type High Temperature Pressure Sensor Based on SiC Diaphragm

Abstract:

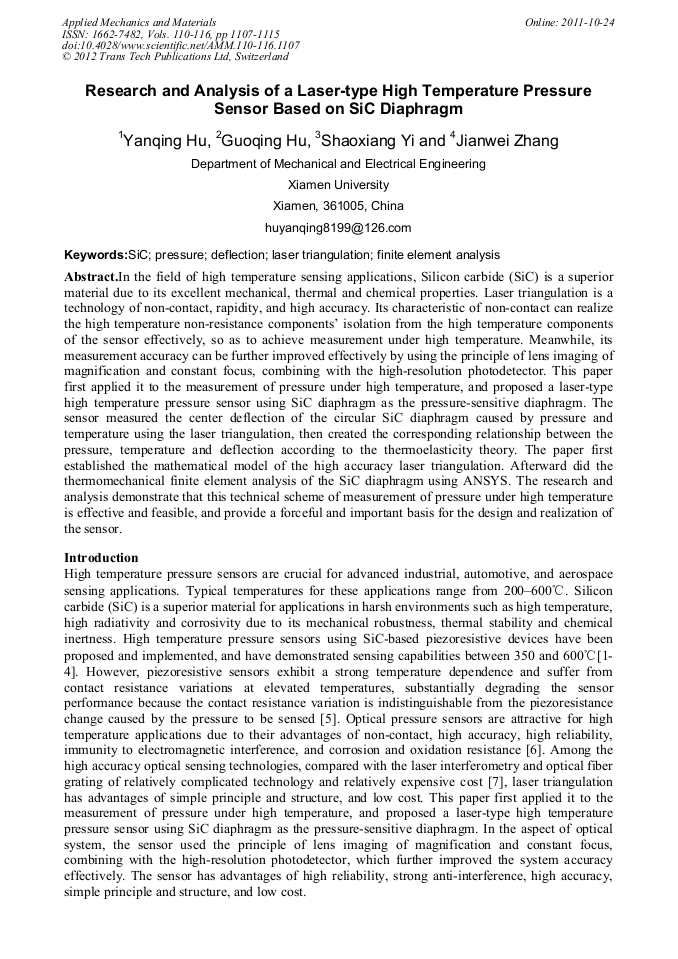

Article Preview

In the field of high temperature sensing applications, Silicon carbide (SiC) is a superior material due to its excellent mechanical, thermal and chemical properties. Laser triangulation is a technology of non-contact, rapidity, and high accuracy. Its characteristic of non-contact can realize the high temperature non-resistance components’ isolation from the high temperature components of the sensor effectively, so as to achieve measurement under high temperature. Meanwhile, its measurement accuracy can be further improved effectively by using the principle of lens imaging of magnification and constant focus, combining with the high-resolution photodetector. This paper first applied it to the measurement of pressure under high temperature, and proposed a laser-type high temperature pressure sensor using SiC diaphragm as the pressure-sensitive diaphragm. The sensor measured the center deflection of the circular SiC diaphragm caused by pressure and temperature using the laser triangulation, then created the corresponding relationship between the pressure, temperature and deflection according to the thermoelasticity theory. The paper first established the mathematical model of the high accuracy laser triangulation. Afterward did the thermomechanical finite element analysis of the SiC diaphragm using ANSYS. The research and analysis demonstrate that this technical scheme of measurement of pressure under high temperature is effective and feasible, and provide a forceful and important basis for the design and realization of the sensor.

Info:

Periodical:

Edited by:

Wu Fan

Pages:

1107-1115

DOI:

10.4028/www.scientific.net/AMM.110-116.1107

Citation:

Y. Q. Hu et al., "Research and Analysis of a Laser-Type High Temperature Pressure Sensor Based on SiC Diaphragm", Applied Mechanics and Materials, Vols. 110-116, pp. 1107-1115, 2012

Online since:

October 2011

Export:

Price:

$35.00

[1] A. Ned, R. S. Okojie, and A. D. Kurtz, 6H-SiC pressure sensor operation at 600℃, in Proc. High Temperature Electronics Conf., 14-18, 1998, pp.257-260.

DOI: 10.1109/hitec.1998.676799

[2] H. Wu, S. Stefanescu, H. I. Kuo, C. A. Zorman, and M. Mehregany, Fabrication and testing of single crystal 3C-SiC piezoresistive pressure sensors, in Proc. Int. Conf. Solid-State Sensors and Actuators, 2001, p.514–517.

DOI: 10.1007/978-3-642-59497-7_122

[3] Damn J. Young, Jianggang Du, and Wen H. Ko, High-temperature singlecrystal 3C-SiC capacitive pressure sensor, IEEE Sensors Journal, vol. 4, no. 4, pp.464-470, (2004).

DOI: 10.1109/jsen.2004.830301

[4] H. Wu, C. A. Zorman, and M. Mehregany, Fabrication and testing of bulk micromachined silicon carbide piezoresistive pressure sensors for high temperature applications, IEEE Sensors Journal, vol. 6, no. 2, pp.316-324, (2006).

DOI: 10.1109/jsen.2006.870145

[5] Darrin J. Young, Jiangang Du, Christian A. Zorman, and Wen H. Ko, High-temperature single-crystal 3C-SiC capacitive pressure sensor, IEEE Sensors Journal, vol. 4, no. 4, pp.464-470, (2004).

DOI: 10.1109/jsen.2004.830301

[6] Chakravarty A., Quick N.R., and Kar A., Decoupling of silicon carbide optical sensor response for temperature and pressure measurements, Journal of Applied Physics, vol. 102, no. 7, pp.073111-12, (2007).

DOI: 10.1063/1.2786889

[7] Yanbiao Liao, Min Li, and Chunsheng Yan, Principles of Contemporary Optical Information Sensing. Beijing: Tsinghua University Press, 2009, pp.182-201.

[8] Hamamatsu Photonics K.K., PSD (Position Sensitive Device): Cat. No. KPSD0001E01, (2002).

[9] Linyong Shen, Yamin Li, Yanan Zhang, and Jinwu Qian, Design and analysis of underground pipeline detecting system based on PSD, Optics and Precision Engineering, vol. 16, no. 8, pp.1429-1435, (2008).

[10] Weite Li, Baohai Huang, and Zhongbo Bi, Re ying li li lun fen xi ji ying yong/ Theoretical analysis and application of thermal stress. Beijing: China Electricity Press, (2004).

[11] Heinz Parkus, Thermoelasticity, 2nd ed. New York: Springer Press, (1976).
