Hygrothermal Buckling Response of Laminated Composite Plates with Random Material Properties: Micro-Mechanical Model

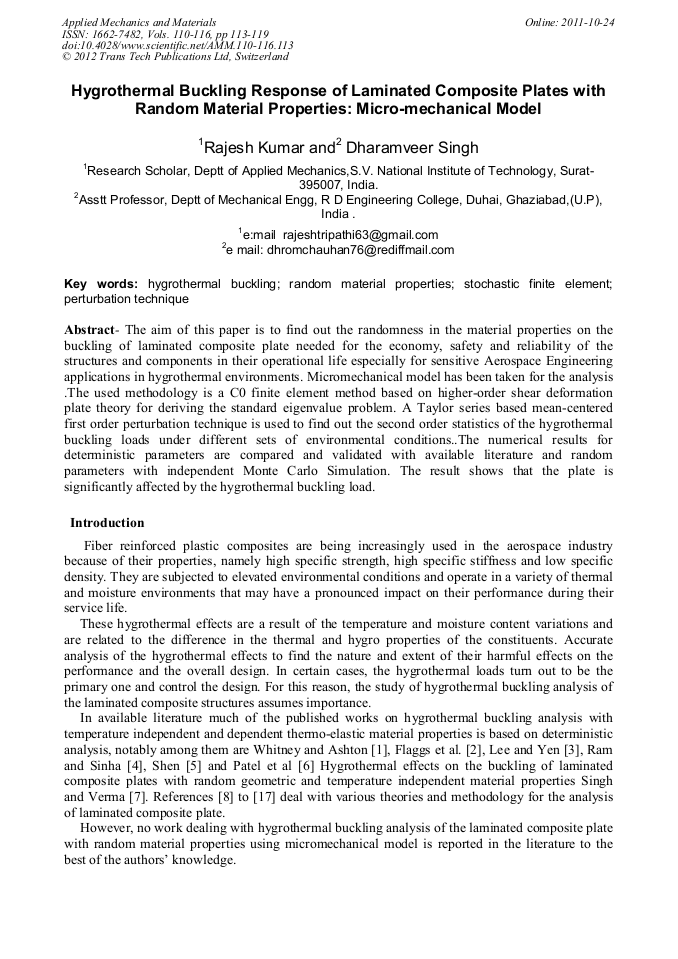

Article Preview

Abstract:

The aim of this paper is to find out the randomness in the material properties on the buckling of laminated composite plate needed for the economy, safety and reliability of the structures and components in their operational life especially for sensitive Aerospace Engineering applications in hygrothermal environments. Micromechanical model has been taken for the analysis .The used methodology is a C0 finite element method based on higher-order shear deformation plate theory for deriving the standard eigenvalue problem. A Taylor series based mean-centered first order perturbation technique is used to find out the second order statistics of the hygrothermal buckling loads under different sets of environmental conditions..The numerical results for deterministic parameters are compared and validated with available literature and random parameters with independent Monte Carlo Simulation. The result shows that the plate is significantly affected by the hygrothermal buckling load.

You might also be interested in these eBooks

Mechanical and Aerospace Engineering, ICMAE2011

Info:

Periodical:

Applied Mechanics and Materials (Volumes 110-116)

Pages:

113-119

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.110-116.113

Citation:

Cite this paper

Online since:

October 2011

Authors:

Rajesh Kumar, Dharamveer Singh

Keywords:

Hygrothermal Buckling, Perturbation Technique, Random Material Properties, Stochastic Finite Element

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] J. M Whitney and J. E., Ashton Effect of environment on the elastic response of layered composite plates,. AIAA, vol 9, 1971, p.1708–13.

DOI: 10.2514/3.49976

[2] D. L Flaggs, and J. R Vinson, Hygrothermal effects on the buckling of laminated composite plates,. Fiber Science Technology, 1978, vol 11, p.353–65.

DOI: 10.1016/0015-0568(78)90031-3

[3] S. Y Lee, C. J Chou, J. L Jang, and J. S Lin, Hygrothermal effects on linear and non-linear analysis of symmetric angle-ply laminated plates, Composite Structures, 1992, vol 21, pp.41-48.

DOI: 10.1016/0263-8223(92)90078-q

[4] K. S SaiRam and P. K Sinha, Hygrothermal effects on the buckling of laminated composite plates". Composite Structures, 1992, vol 21, pp.233-247.

DOI: 10.1016/0263-8223(92)90051-d

[5] Hui-Shen Shen, Hygrothermal effects on the post buckling of shear deformable laminated plates,. Int J Mech Sci, 2001, vol 43, pp.1259-1281.

DOI: 10.1016/s0020-7403(00)00058-8

[6] B. P. Patel, M. Ganapati and D. P. Makhecha, Hygrothermal effects on the structural behaviour of thick composite laminates using higher-order theory, Composite Structures, 2002, vol 56, pp.25-34.

DOI: 10.1016/s0263-8223(01)00182-9

[7] B N Singh and V K Verma, Hygrothermal effects on the buckling of laminated composite plates with random geometric and material properties, Journal of Reinforced Plastics and Composites, 2009, vol 28 (4), pp.409-427.

DOI: 10.1177/0731684407084991

[5] Present Vf=.

5 Vf=.

6 Vf=.

7 Vf=.

5 Vf=.

6 Vf=.

7 (0/90)s ΔT=00CΔC=0% 171. 3 203. 9 243. 2 171. 2 203. 8 243. 9 ΔT=10000C ΔC=1% 161. 4 193. 5 232. 5 159. 7 191. 4 230. 7 Figure 1. Geometry of laminated composite plate. Table 2 Effect of boundary conditions and input random variables bi{i=1…9, 7-8, 9 and 10= 0. 10} cross ply [00/900]2T square laminated plate ( a/h=30) , volume fraction Vf=0. 6, T0=250C subjected to uniform (U.T. ) temperature and moisture distribution, in-plane uni-axial compression . The dimensionlised expected mean hygrothermal buckling loads is given as Nx (KN). TABLE 2 BCs Temperature independent (TID) material properties ΔT=00C, ΔC=0% Expected Mean (KN). Coefficient of variation (SD/ Mean) bi (i=1... 9) (i=7. -8) (i=9) (i=10, 11) SSSS (S1).

[11] 7.

078.

002 0.

03 SSSS (S2).

[11] 7.

078.

002 0.

03 CCCC.

[37] 5.

074.

[7] 81e-04 0.

03 CSCS.

[21] 6.

076.

001 0.

02 BCs Temperature independent (TID) material properties ΔT=2000C, ΔC=3% Expected Mean (KN). Coefficient of variation (SD/ Mean) bi (i=1. 9) (i=7. -8) (i=9) (i=10, 11) SSSS (S1).

[10] 06.

082.

020.

006.

038 SSSS (S2).

[10] 21.

081.

020.

006.

038 CCCC.

[32] 47.

074.

006.

002.

038 CSCS.

[18] 91.

076.

011.

003.

032 Figure 2. Validation of FOPT results with independent MCS results of random material properties.
