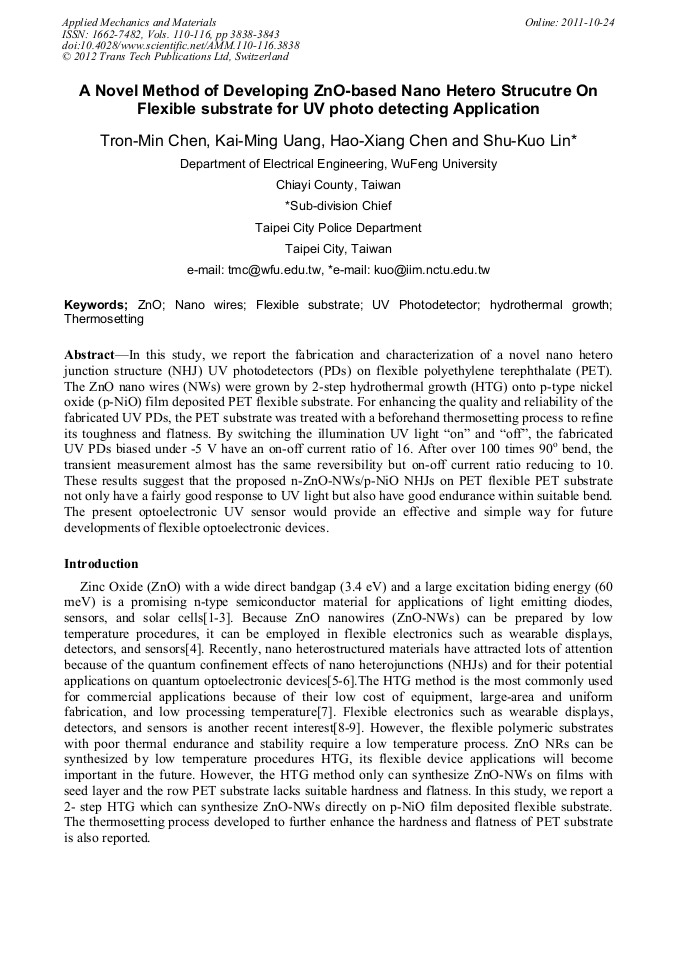

A Novel Method of Developing ZnO-Based Nano Hetero Strucutre on Flexible Substrate for UV Photo Detecting Application

Abstract:

In this study, we report the fabrication and characterization of a novel nanohetero junction structure (NHJ) UV photodetectors (PDs) on flexible polyethylene terephthalate (PET). The ZnO nanowires (NWs) were grown by 2-step hydrothermal growth (HTG) onto p-type nickel oxide (p-NiO) film deposited PET flexible substrate. For enhancing the quality and reliability of the fabricated UV PDs, the PET substrate was treated with a beforehand thermosetting process to refine its toughness and flatness. By switching the illumination UV light “on” and “off”, the fabricated UV PDs biased under-5 V have an on-off current ratio of 16. After over 100 times 90^o bend, the transient measurement almost has the same reversibility but on-off current ratio reducing to 10. These results suggest that the proposed n-ZnO-NWs/p-NiO NHJs on PET flexible PET substrate not only have a fairly good response to UV light but also have good endurance within suitable bend. The present optoelectronic UV sensor would provide an effective and simple way for future developments of flexible optoelectronic devices.

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 3838-3843
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.3838
• Online since: October 2011
• Authors: Tron Min Chen, Kai Ming Uang, Hao Xiang Chen, Shu Kuo Lin
• Keywords: Flexible Substrate, Hydrothermal Growth, Nanowire, Thermosetting, UV Photodetector, Zinc Oxide (ZnO)

References

[1] Q. Li, V. Kumar, Y. Li, H. Zhang, T. J. Marks, and R. P. H. Chang, Fabrication of ZnO Nanorods and Nanotubes in Aqueous Solutions, Chem. Mater. 2005, 17, 1001-1006.

DOI: 10.1021/cm048144q

[2] T. M. Chen, A. B. Chen, K. M. Uang, and S. J. Wang, The synthesis of vertically aligned ZnO nanorods on vertical-structured GaN-based light-emitting diodes for light output power improvement, IEDMs (2009).

[3] A. Wei et. al., Growth mechanism of tubular ZnO formed in aqueous solution, Nanotechnology 17 (2006) 1740–1744.

[4] H. Fang, W. Wu, J. Song, and Z. L. Wang, Controlled Growth of Aligned Polymer Nanowires, ACS PublicationsSeptember 1, (2009).

[5] W. C. Tsai, S. J. Wang, J. C. Lin, C. R. Tseng, F. S. Tsai, and W. I. Hsu, Preparation of NiO/ZnO nanoheterojunction arrays and their optoelectric characteristics under UV light illumination, International Conference on Solid State Devices and Materials (SSDM 2009), Sendai Kokusai Hotel, Miyagi, Japan, October 7-9, (2009).

DOI: 10.7567/ssdm.2009.i-4-4

[6] R. Ghosh and D. Basak, Electrical andultraviolet photoresponse properties of quasialigned ZnO nanowires/p-Si heterojunction, APPLIED PHYSICS LETTERS 90, 243106, (2007).

DOI: 10.1063/1.2748333

[7] L. Vayssieres, Growth of arrayed nanorods and nanowires of ZnO from aqueous solutions, Adv. Mater. 15, 464(2003).

DOI: 10.1002/adma.200390108

[8] D. Leeuw, D. M., Nature 407, 422 (2000).

[9] Huitema, H. E.; Golinck, G. H.; van der Putten, J. B. P. H.; Kuijk, K.E.; Herwig, P. T.; van Breement, A. J. J. M.; de leeuw, D. M., Nature414, 599 (2001).

[10] Y. Tak and K. Yong, Controlled Growth of Well-Aligned ZnO Nanorod Array Using a Novel Solution Method, J. Phys. Chem. B 2005, 109, 19263-19269.

DOI: 10.1021/jp0538767

[11] Z. Wang and Xue-feng Qian, Large-Scale Fabrication of Tower-like, Flower-like, andTube-like ZnO Arrays by a Simple Chemical SolutionRoute, Langmuir 2004, 20, 3441-3448.

DOI: 10.1021/la036098n
