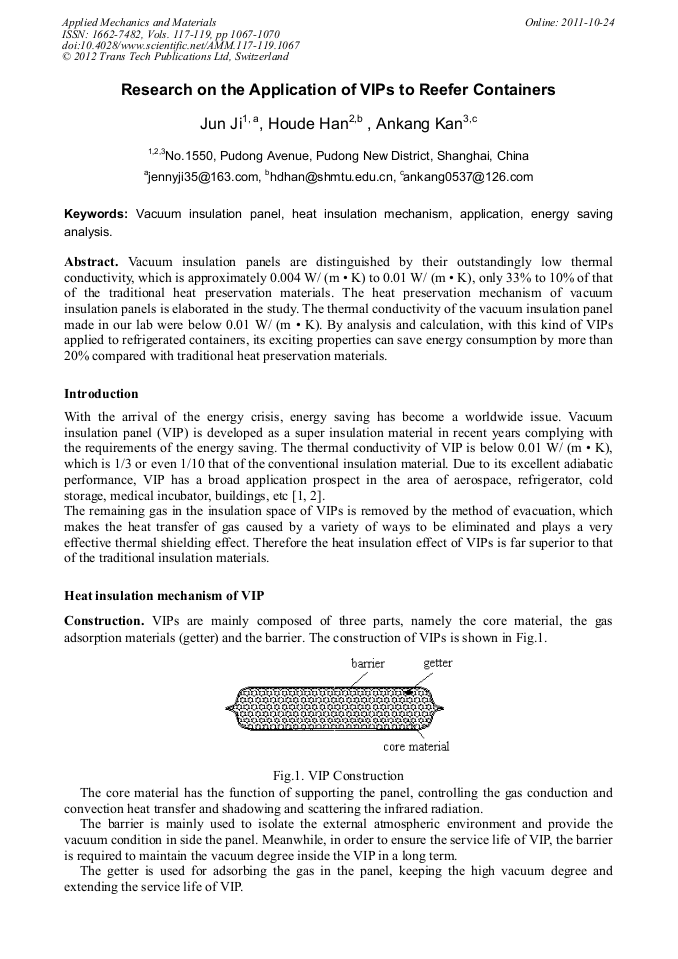

Research on the Application of VIPs to Reefer Containers

Abstract:

Vacuum insulation panels are distinguished by their outstandingly low thermal conductivity, which is approximately 0.004 W/ (m • K) to 0.01 W/ (m • K), only 33% to 10% of that of the traditional heat preservation materials. The heat preservation mechanism of vacuum insulation panels is elaborated in the study. The thermal conductivity of the vacuum insulation panel made in our lab were below 0.01 W/ (m • K). By analysis and calculation, with this kind of VIPs applied to refrigerated containers, its exciting properties can save energy consumption by more than 20% compared with traditional heat preservation materials.

• Periodical: Applied Mechanics and Materials (Volumes 117-119)
• Pages: 1067-1070
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.117-119.1067
• Online since: October 2011
• Authors: Jun Ji, Hou De Han, An Kang Kan
• Keywords: Application, Energy Saving Analysis, Heat Insulation Mechanism, Vacuum Insulation Panel

References

[1] P.L. Manini, Z.B. Wang and X.Wang. The Latest Progress of Vacuum Insulation Panels for Household Appliances' Application. Science and Technology of Household Electric Appliance, Vol.10(2003), pp.49-51.

[2] B.Y. Lu, J.P. Zhang and S.X. Zhang et al. Study on Thermal Properties of Vacuum Insulation Panel. Vacuum, Vol.11(2007), pp.82-84(In Chinese).

[3] J.P. Zhang, S.X. Zhang and C.Y.Yu et al. Research on Thermal Performance of Vacuum Insulation Panel. New Building Materials, Vol. 9(2006), pp.40-41(In Chinese).

[4] W.T. Zhu and J.Li. Research on Connected Polyurethane Vacuum Insulation Technology (VIP). Science and Technology of Household Electric Appliance, Vol.3(2000), pp.34-36(In Chinese).
