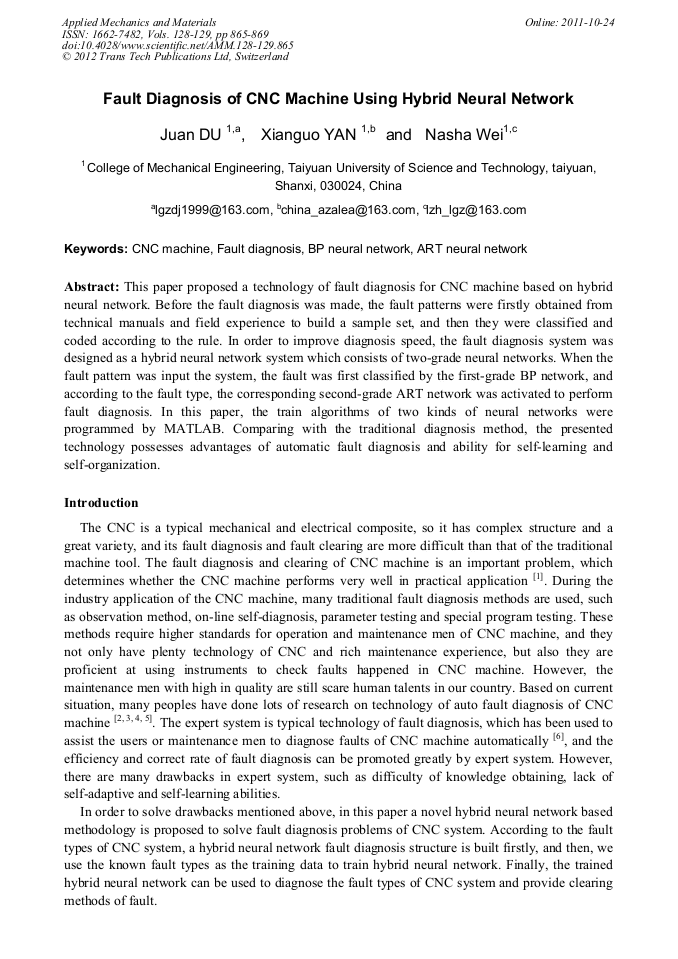

Fault Diagnosis of CNC Machine Using Hybrid Neural Network

Abstract:

This paper proposed a technology of fault diagnosis for CNC machine based on hybrid neural network. Before the fault diagnosis was made, the fault patterns were firstly obtained from technical manuals and field experience to build a sample set, and then they were classified and coded according to the rule. In order to improve diagnosis speed, the fault diagnosis system was designed as a hybrid neural network system which consists of two-grade neural networks. When the fault pattern was input the system, the fault was first classified by the first-grade BP network, and according to the fault type, the corresponding second-grade ART network was activated to perform fault diagnosis. In this paper, the train algorithms of two kinds of neural networks were programmed by MATLAB. Comparing with the traditional diagnosis method, the presented technology possesses advantages of automatic fault diagnosis and ability for self-learning and self-organization.

• Periodical: Applied Mechanics and Materials (Volumes 128-129)
• Pages: 865-869
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.128-129.865
• Online since: October 2011
• Authors: Juan Du, Xian Guo Yan, Na Sha Wei
• Keywords: ART Neural Network, BP Neural Network (BPNN), CNC Machine, Fault Diagnosis

References

[1] Z. F. Wang, J. G. Hao, in: Example of Fault Diagnosis and Service of NC Machine Tools[M]. Beijing: National Defense Industry Press, (2006).

[2] M. L. You, X. Ding and Y. Pan, in: Application of BP neural network at fault diagnosis of CNC system[J]. Mechanic & Electronic Technology, 2010, (1): 20-22.

[3] J. H. Li, in: Study of NC machine tool failure Diagnosis Based on RBF neural network[J]. Machine Tool Switchgear, 2003, (5): 10-13.

[4] P. F. Wang, X. J. Liu and Z. H. Yu, in: Design and research on CBR-based fault diagnos is system of CNC machine tool[J]. Machinery Design & Manufacture, 2008, (10): 170-172.

[5] X. Wang, in: Design of intelligent CNC Machine Remote Diagnosis System[J]. mechanism and electronics, 2011, (1): 116-117.

[6] S. B. Li, Y. W. Jia, in: Study of Fault Diagnosis Expert System for Numerical Control Lathe[J]. Machine Tool &Hydraulics, 2007, 35(3): 241-244.

[7] L. Q. Han, in: Artificial neural network theory, design and application[M]. Beijing: Chemical Industry Press, (2007).
