Automatic Control System of Stone Sawing Machine Based on PLC and Human-Computer Interface

Abstract:

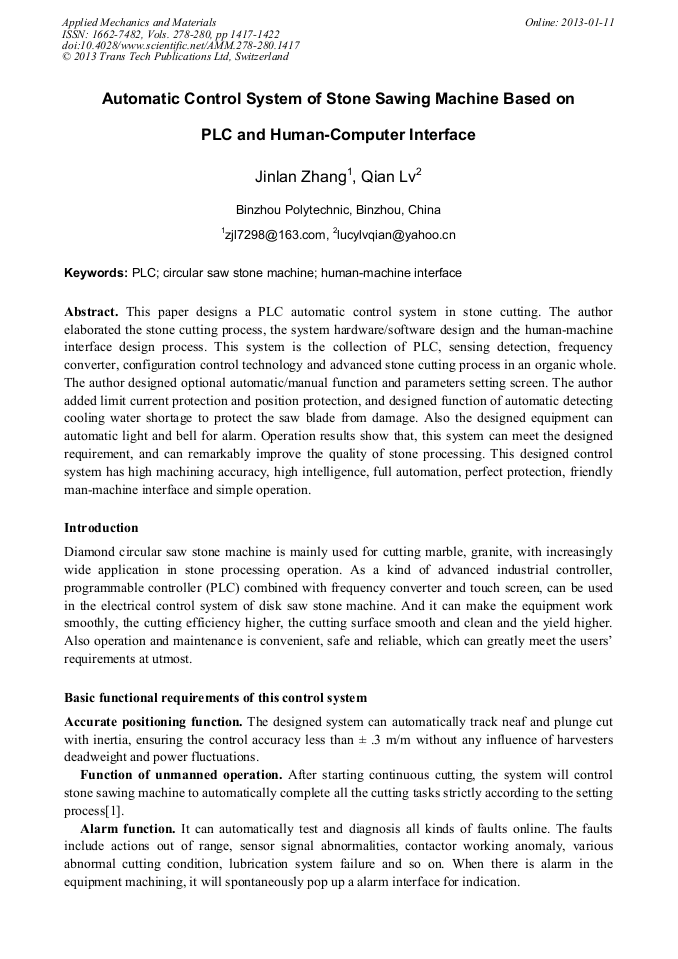

This paper designs a PLC automatic control system in stone cutting. The author elaborated the stone cutting process, the system hardware/software design and the human-machine interface design process. This system is the collection of PLC, sensing detection, frequency converter, configuration control technology and advanced stone cutting process in an organic whole. The author designed optional automatic/manual function and parameters setting screen. The author added limit current protection and position protection, and designed function of automatic detecting cooling water shortage to protect the saw blade from damage. Also the designed equipment can automatic light and bell for alarm. Operation results show that, this system can meet the designed requirement, and can remarkably improve the quality of stone processing. This designed control system has high machining accuracy, high intelligence, full automation, perfect protection, friendly man-machine interface and simple operation.

• Periodical: Applied Mechanics and Materials (Volumes 278-280)
• Pages: 1417-1422
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.278-280.1417
• Online since: January 2013
• Authors: Jin Lan Zhang, Qian Lv
• Keywords: Circular Saw Stone Machine, Human Machine Interface, Programmable Logic Controller (PLC)
