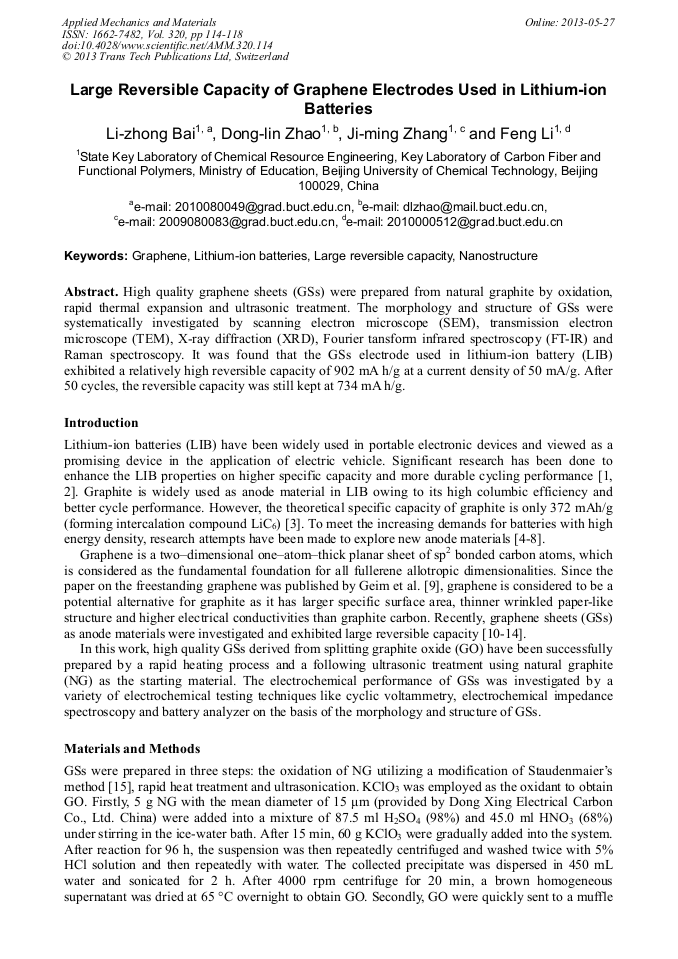

Large Reversible Capacity of Graphene Electrodes Used in Lithium-Ion Batteries

Abstract:

High quality graphene sheets (GSs) were prepared from natural graphite by oxidation, rapid thermal expansion and ultrasonic treatment. The morphology and structure of GSs were systematically investigated by scanning electron microscope (SEM), transmission electron microscope (TEM), X-ray diffraction (XRD), Fourier tansform infrared spectroscopy (FT-IR) and Raman spectroscopy. It was found that the GSs electrode used in lithium-ion battery (LIB) exhibited a relatively high reversible capacity of 902 mA h/g at a current density of 50 mA/g. After 50 cycles, the reversible capacity was still kept at 734 mA h/g.

• Periodical: Applied Mechanics and Materials (Volume 320)
• Pages: 114-118
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.320.114
• Online since: May 2013
• Authors: Li Zhong Bai, Dong Lin Zhao, Ji Ming Zhang, Feng Li
• Keywords: Graphene (GR), Large Reversible Capacity, Lithium-Ion Battery, Nanostructure

References

[1] J.M. Tarascon and M. Armand: Nature Vol. 414 (1992), p.119

[2] P.G. Bruce, B. Scrosati and J.M. Tarascon: Angew. Chem. Int. Ed. Vol. 47 (2008), p.2930

[3] S.H. Ng, J.Z. Wang, D. Wexler, K. Konstantinov, Z.P. Guo and H.K. Liu: Angew. Chem. Int. Ed. Vol. 45 (2006), p.6896

[4] Y. Idota, T. Kubota, A. Matsufuji, Y. Maekawa and T. Miyasaka: Science Vol. 276 (1997), p.1395

[5] P. Poizot, S. Laruelle, S. Grugeon, L. Dupont and J.M. Tarascon: Nature Vol. 407 (2000), p.496

[6] H. Zhou, S. Zhu, M. Hibino, I. Honma and M. Ichihara: Adv. Mater. Vol. 15 (2003), p.2107

[7] P.L. Taberna, S. Mitra, P. Poizot, P. Simon and J.M. Tarascon: Nat. Mater. Vol. 5 (2006), p.567

[8] C.K. Chan, H. Peng, G. Liu, K.M. Wrath, X.F. Zhang, R.A. Huggins and Y. Cui: Nat. Nanotechnol. Vol. 3 (2008), p.31

[9] K.S. Novoselov, A.K. Geim, S.V. Morozov, D. Jiang, Y. Zhang, S.V. Dubonos, I.V. Grigorieva and A.A. Firsov: Science Vol. 306 (2004), p.666

DOI: 10.1126/science.1102896

[10] E. Yoo, J. Kim, E. Hosono, H. Zhou, T. Kudo and I. Honma: Nano Lett. Vol. 8 (2008), p.2277

[11] D. Pan, S. Wang, B. Zhao, M. Wu, H. Zhang, Y. Wang and Z. Jiao: Chem. Mater. Vol. 21 (2009), p.3136

[12] P. Guo, H. Song and X. Chen: Electrochem. Commun. Vol. 11 (2009), P. 1320

[13] G. Wang, X. Shen, J. Yao and J. Park: Carbon Vol. 47 (2009), P. (2049)

[14] H.C. Schniepp, J.L. Li, M.J. McAllister, H. Sai, M. Herrera-Alonso, D.H. Adamson, R.K. Prud'homme, R. Car, D.A. Saville and I.A. Aksay: J. Phys. Chem. B Vol. 110 (2006), p.8535

DOI: 10.1021/jp060936f

[15] L. Staudenmaier: Ber. Dtsch. Chem. Ges. Vol. 31 (1898), p.1481

[16] J.C. Meyer, A.K. Geim, M.I. Katsnelson, K.S. Novoselov, T.J. Booth and S. Roth: Nature Vol. 446 (2007), P. 60

[17] M.A. Pimenta, G. Dresselhaus, M.S. Dresselhaus, L.A. Cancado, A. Jorio and R. Sato: Phys. Chem. Chem. Phys. Vol. 9 (2007), P. 1276

DOI: 10.1039/b613962k

[18] D. Aurbach: J. Power Sources Vol. 89 (2000), P. 206

[19] W. Xing and J.R. Dahn: J. Electrochem. Soc. Vol. 144 (1997), P. 1195

[20] Y. Wu, C. Jiang, C. Wan and E. Tsuchida: Electrochem. Commun. Vol. 2 (2000), P. 271

[21] S. Yang, H. Song and X. Chen: Electrochem. Commun. Vol. 8 (2006), p.137
