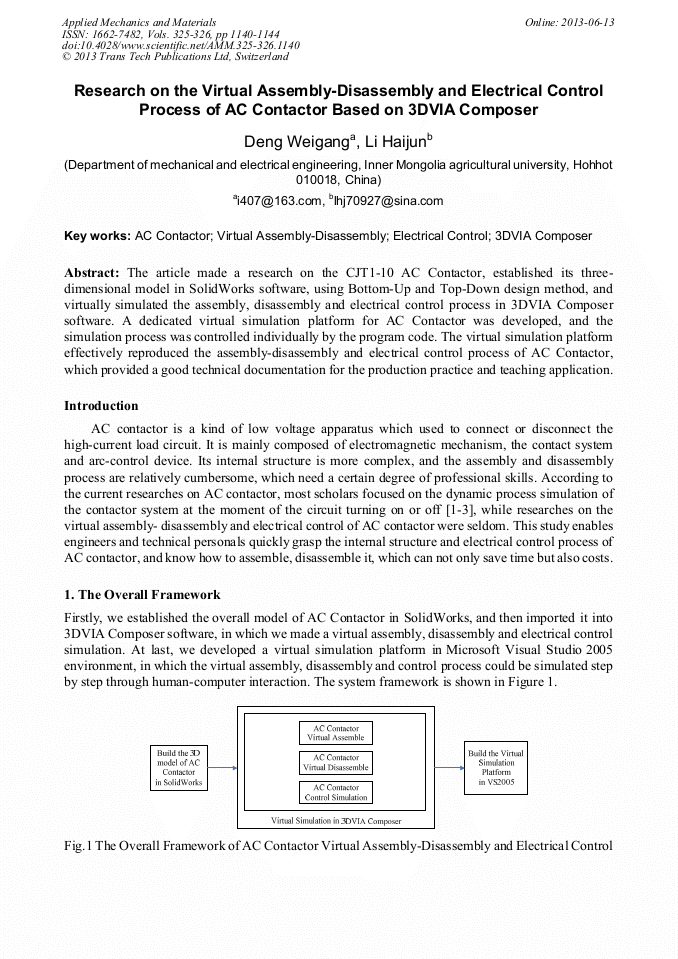

Research on the Virtual Assembly-Disassembly and Electrical Control Process of AC Contactor Based on 3DVIA Composer

Abstract:

The article made a research on the CJT1-10 AC Contactor, established its three-dimensional model in SolidWorks software, using Bottom-Up and Top-Down design method, and virtually simulated the assembly, disassembly and electrical control process in 3DVIA Composer software. A dedicated virtual simulation platform for AC Contactor was developed, and the simulation process was controlled individually by the program code. The virtual simulation platform effectively reproduced the assembly-disassembly and electrical control process of AC Contactor, which provided a good technical documentation for the production practice and teaching application.

You might also be interested in these eBooks

Manufacturing Engineering and Process II

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 325-326)

Pages:

1140-1144

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.325-326.1140

Citation:

Cite this paper

Online since:

June 2013

Authors:

Wei Gang Deng, Hai Jun Li

Keywords:

3DVIA Composer, AC Contactor, Electrical Control, Virtual Assembly-Disassembly
