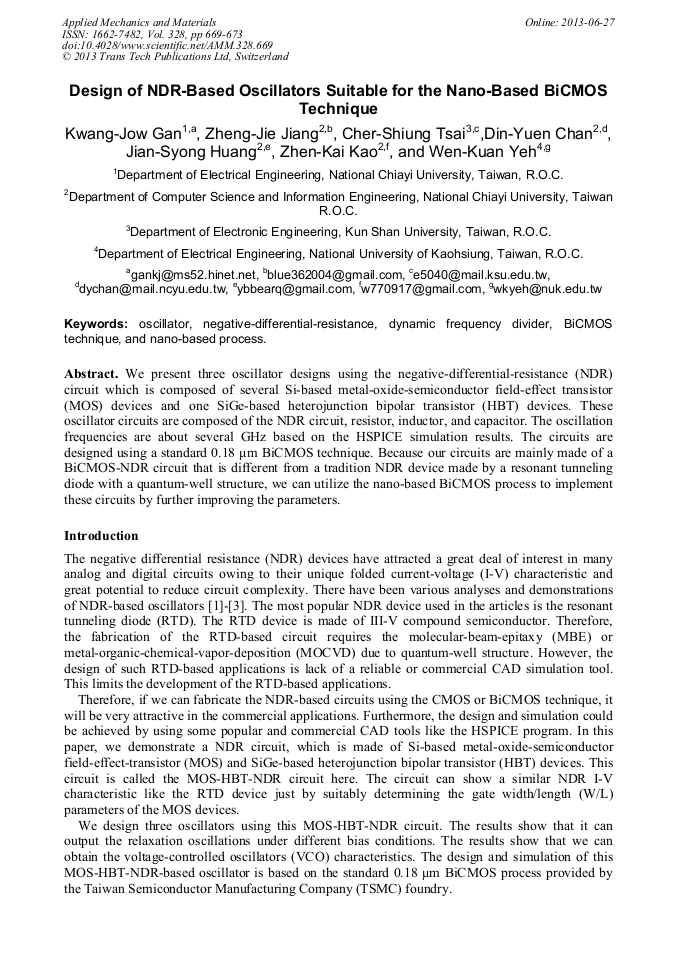

Design of NDR-Based Oscillators Suitable for the Nano-Based BiCMOS Technique

Abstract:

We present three oscillator designs using the negative-differential-resistance (NDR) circuit which is composed of several Si-based metal-oxide-semiconductor field-effect transistor (MOS) devices and one SiGe-based heterojunction bipolar transistor (HBT) devices. These oscillator circuits are composed of the NDR circuit, resistor, inductor, and capacitor. The oscillation frequencies are about several GHz based on the HSPICE simulation results. The circuits are designed using a standard 0.18 μm BiCMOS technique. Because our circuits are mainly made of a BiCMOS-NDR circuit that is different from a tradition NDR device made by a resonant tunneling diode with a quantum-well structure, we can utilize the nanobased BiCMOS process to implement these circuits by further improving the parameters.

• Periodical: Applied Mechanics and Materials (Volume 328)
• Pages: 669-673
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.328.669
• Online since: June 2013
• Authors: Kwang Jow Gan, Zheng Jie Jiang, Cher Shiung Tsai, Din Yuen Chan, Jian Syong Huang, Zhen Kai Kao, Wen Kuan Yeh
• Keywords: BiCMOS Technique, Dynamic Frequency Divider, Nanobased Process, Negative-Differential-Resistance, Oscillator

References

[1] E.R. Brown, J.R. Soderstrom, C.D. Parker, L.J. Mahoney, K.M. Molvar, and T.C. McGill: "Oscillations up to 712 GHz in InAs/AlSb resonant‐tunneling diodes," Applied Physics Letters Vol. 58, Iss. 20 (1991) p.2291

DOI: 10.1063/1.104902

[2] M. Asada, S. Suzuki, and N. Kishimoto: "Resonant tunneling diodes for sub-terahertz and terahertz oscillators," Japanese Journal of Applied Physics Vol. 47 (2008) p.4375.

DOI: 10.1143/jjap.47.4375

[3] L.E. Wernersson, M. Ärlelid, M. Egard, and E. Lind: "Gated tunnel diode in oscillator applications with high frequency tuning," Solid-State Electronics Vol. 53, Iss. 3 (2009) p.292.

DOI: 10.1016/j.sse.2008.12.009

[4] N. Muramatsu, H. Okazaki, and T. Waho: "A novel oscillation circuit using a resonant-tunneling diode," IEEE International Symposium on Circuits and Systems, Vol. 3 (2005) p.2341.

DOI: 10.1109/iscas.2005.1465094

[5] V.D.P. Balthasar: "Nonlinear theory of electric oscillations," Proceedings of the Institute of Radio Engineers, Vol. 22 (1934) p.1051.

[6] L.O. Chua, C. W. Wu, A. Huang, and G.Q. Zhong: "A universal circuit for studying and generating chaos. I. Routes to chaos," IEEE Trans. on Circuits and Systems I: Fundamental Theory and Applications, Vol. 40, No. 10 (1993) p.732.

DOI: 10.1109/81.246149

[7] Y. Kawano, Y. Ohno, S. Kishimoto, K. Maezawa, and T. Mizutani: "High-speed operation of a novel frequency divider using resonant tunneling chaos Circuit," Japanese Journal of Applied Physics, Vol. 41, No. 2B (2002) p.1150.

DOI: 10.1143/jjap.41.1150

[8] J.M. Quintana, and M.J. Avedillo: "Analysis of frequency divider RTD circuits," IEEE Trans. on Circuits and Systems I: Regular Papers, Vol. 52, No. 10 (2005) p.2234.

DOI: 10.1109/tcsi.2005.852918
