Strain and Cracks of Tunnel Lining Surveyed by Fiber Bragg Grating Strain Sensors and Ultrasonic Tester

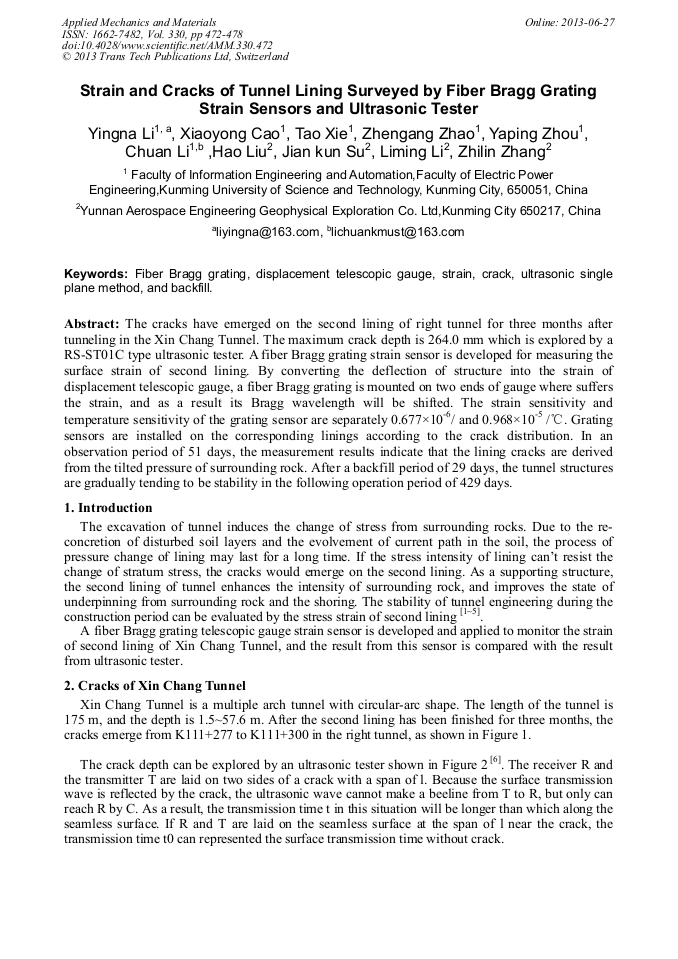

Abstract:

The cracks have emerged on the second lining of right tunnel for three months after tunneling in the Xin Chang Tunnel. The maximum crack depth is 264.0 mm which is explored by a RS-ST01C type ultrasonic tester. A fiber Bragg grating strain sensor is developed for measuring the surface strain of second lining. By converting the deflection of structure into the strain of displacement telescopic gauge, a fiber Bragg grating is mounted on two ends of gauge where suffers the strain, and as a result its Bragg wavelength will be shifted. The strain sensitivity and temperature sensitivity of the grating sensor are separately 0.677×10^-6/ and 0.968×10^-5 /°C. Grating sensors are installed on the corresponding linings according to the crack distribution. In an observation period of 51 days, the measurement results indicate that the lining cracks are derived from the tilted pressure of surrounding rock. After a backfill period of 29 days, the tunnel structures are gradually tending to be stability in the following operation period of 429 days.

• Periodical: Applied Mechanics and Materials (Volume 330)
• Pages: 472-478
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.330.472
• Online since: June 2013
• Authors: Ying Na Li, Xiao Yong Cao, Tao Xie, Zhen Gang Zhao, Ya Ping Zhou, Chuan Li, Hao Liu, Jian Kun Su, Li Ming Li, Zhi Lin Zhang
• Keywords: Backfill, Crack, Displacement Telescopic Gauge, Fiber Bragg Grating (FBG), Strain, Ultrasonic Single Plane Method

References

[1] J.O. Bickel, T.R. Kuesel, and E.H. King, Tunnel Engineering Handbook, 2nd, Chapman & Hall, 1996.

[2] Federal Highway Administration, (2005). Highway and Rail Transit Tunnel Inspection Manual, FHWA-IF-05-002.

[3] Ministry of communications standard of the people's republic of China, (1998). Quality inspection and evaluation standards for highway engineering, JTJ 071-98.

[4] Bock, H. (2001). European practice in geotechnical instrumentation for tunnel construction control, Tunnels and Tunneling International, 33(4): 5l-53.

[5] Richards, J.A. (1998). Inspection maintenance and repair of tunnels: international lessons and practice, Tunneling and Underground Space Technology, 13(4): 369-375.

DOI: 10.1016/s0886-7798(98)00079-0

[6] China Association for Engineering Construction Standardization, (2001). Technical specification for inspection of concrete defects by ultrasonic method, CECS 21-2000.

[7] Kersey, A.D. Davis, M.A. Patrick, H.J. LeBlanc, M. Koo, K.P. Askins, C.G. Putnam, M.A. and Joseph Friebele, E. (1997). Fiber grating sensors, Journal of lightwave technology, 15(8): 1442-1463.

DOI: 10.1109/50.618377

[8] Yang, Y.W. Bhalla, S. Wang, C. Soh, C.K. and Zhao, J. (2007). Monitoring of rocks using smart sensors, Tunneling and Underground Space Technology, 22(2): 206-221.

DOI: 10.1016/j.tust.2006.04.004

[9] Raymond, M.M. (2001). Structural monitoring with fiber optic technology, Academic Press.

[10] Li, C. Zhang, Y.M. Zhao, Y.G. and Li, L.J. (2005). Fiber grating: principles, techniques, and applications, Beijing: Science Press.
