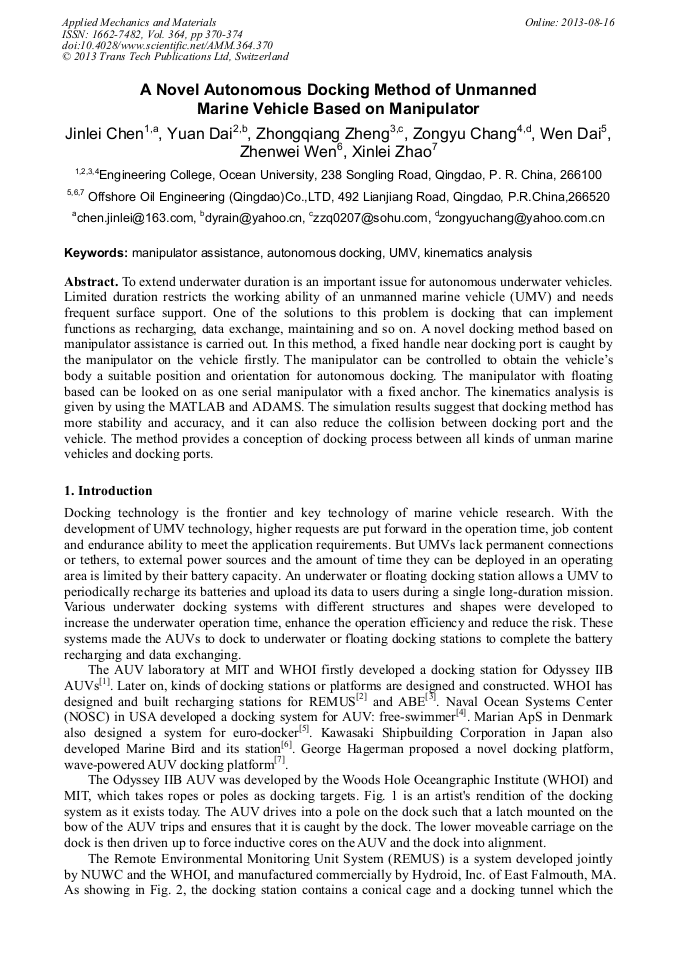

A Novel Autonomous Docking Method of Unmanned Marine Vehicle Based on Manipulator

Abstract:

To extend underwater duration is an important issue for autonomous underwater vehicles. Limited duration restricts the working ability of an unmanned marine vehicle (UMV) and needs frequent surface support. One of the solutions to this problem is docking that can implement functions as recharging, data exchange, maintaining and so on. A novel docking method based on manipulator assistance is carried out. In this method, a fixed handle near docking port is caught by the manipulator on the vehicle firstly. The manipulator can be controlled to obtain the vehicles body a suitable position and orientation for autonomous docking. The manipulator with floating based can be looked on as one serial manipulator with a fixed anchor. The kinematics analysis is given by using the MATLAB and ADAMS. The simulation results suggest that docking method has more stability and accuracy, and it can also reduce the collision between docking port and the vehicle. The method provides a conception of docking process between all kinds of unman marine vehicles and docking ports.

• Periodical: Applied Mechanics and Materials (Volume 364)
• Pages: 370-374
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.364.370
• Online since: August 2013
• Authors: Jin Lei Chen, Yuan Dai, Zhong Qiang Zheng, Zong Yu Chang, Wen Dai, Zhen Wei Wen, Xin Lei Zhao
• Keywords: Autonomous Docking, Kinematics Analysis, Manipulator Assistance, UMV

References

[1] Singh H, James G. Docking for an autonomous ocean sampling network [J]. IEEE Journal of Oceanic Engineering, 2001, 26(4): 498-514.

[2] Stokey R, Purcell M, Forrester N, et al. A docking system for REMUS, an autonomous underwater vehicle [A]. Proceedings of the OCEANS'97 MTS/IEEE Conference[C]. New York, NY, USA: IEEE. 1997. 1132-1l36.

DOI: 10.1109/oceans.1997.624151

[3] http: /www. divediscover. whoi. edu/history-ocean/21st. html.

[4] Evans JC, Keller KM, Smith JS, Marty P, Rigaud OV. Docking techniques and evaluation trials of the SWIMMER AUV: an autonomous deployment AUV for work-class ROVs. OCEANS 2001. MTS/IEEE conference and exhibition. 2001. p.520–8.

DOI: 10.1109/oceans.2001.968776

[5] Brighenti A, Zugno L, Mattiuzzo F, Sperandio A. EURODOCKER a universal docking-downloading recharging system for AUVs: conceptual design results. Proceedings of the OCEANS' 98 conference. 1998. p.463–1467.

DOI: 10.1109/oceans.1998.726313

[6] Kawasaki T, Noguchi T, Fukasawa T, et al. Development of AUV Marine Bird, with underwater docking and recharging system [A]. Proceedings of the 3rd International Workshop on Scientific Use Submarine Cables and Related technologies[C]. New York, NY, USA: IEEE, 2003. 166-170.

DOI: 10.1109/ssc.2003.1224134

[7] Hagerman G. Wave energy systems for recharging AUV energy supplies. Workshop on autonomous underwater vehicles (AUVs 02). (2002).

DOI: 10.1109/auv.2002.1177207

[8] Peter Weiss, Juan Vicente, Daniel Grossnet, et al. FREESUB: Dynamic stabilization and docking for autonomous underwater vehicles. 13th International Symposium on Unmanned Untethered Submersible Technology, Durham, USA, (2003).
