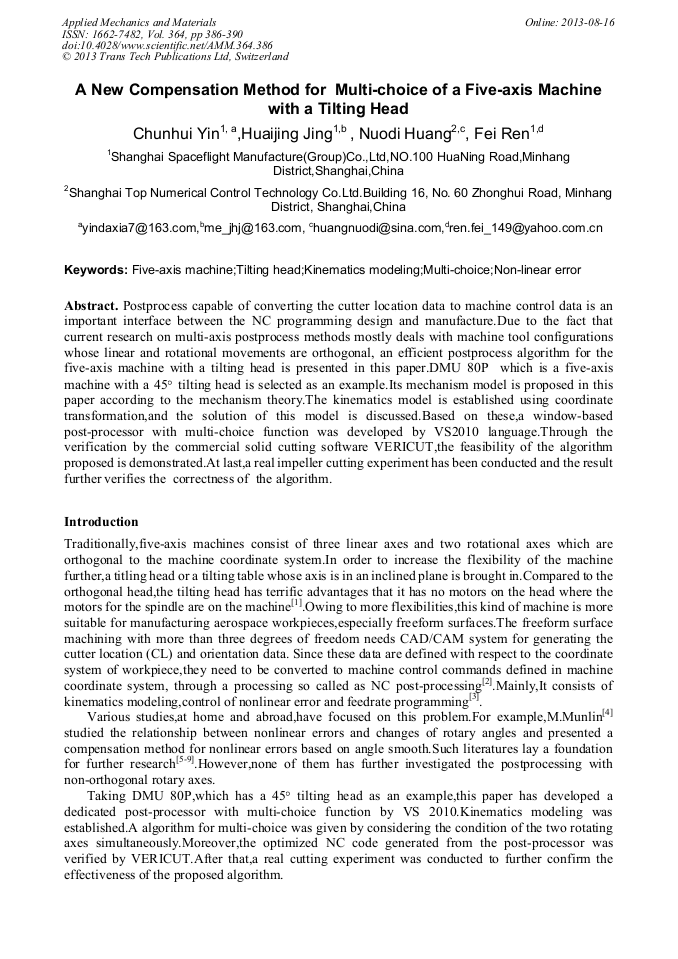

A New Compensation Method for Multi-Choice of a Five-Axis Machine with a Tilting Head

Abstract:

Postprocess capable of converting the cutter location data to machine control data is an important interface between the NC programming design and manufacture.Due to the fact that current research on multi-axis postprocess methods mostly deals with machine tool configurations whose linear and rotational movements are orthogonal, an efficient postprocess algorithm for the five-axis machine with a tilting head is presented in this paper.DMU 80P which is a five-axis machine with a tilting head is selected as an example.Its mechanism model is proposed in this paper according to the mechanism theory.The kinematics model is established using coordinate transformation,and the solution of this model is discussed.Based on these,a window-based post-processor with multi-choice function was developed by VS2010 language.Through the verification by the commercial solid cutting software VERICUT,the feasibility of the algorithm proposed is demonstrated.At last,a real impeller cutting experiment has been conducted and the result further verifies the correctness of the algorithm.

• Periodical: Applied Mechanics and Materials (Volume 364)
• Pages: 386-390
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.364.386
• Online since: August 2013
• Authors: Chun Hui Yin, Huai Jing Jing, Nuo Di Huang, Fei Ren
• Keywords: Five-Axis Machine, Kinematics Modeling, Multi-Choice, Non-Linear Error, Tilting Head

References

[1] Chen-Hua She, Chun-Cheng Chang. Development of a five-axis postprocessor system with a nuating head[J]. Journal of Materials Processing Technology 187-188(2007)60-64.

DOI: 10.1016/j.jmatprotec.2006.11.101

[2] Zhang Lei, Xia XinAn, HuDeJin. A post-processing algorithm for DECKEL MAHO universal milling and drilling machine—A kind of 5-axis NC machining center[A]. ICFDM'2002[C].

[3] Zhou YanHong, Zhou Ji. CNC Processing Technic[M]. Beijing: National Defence Industry Press, (2002).

[4] Munlin M. Errors Estimation and Minimization for the 5-Axis Milling Machine[J]. International Journal of Machine Tools and Manufacture. Industrial Technology, (2002)47：1013–1018.

DOI: 10.1109/icit.2002.1189310

[5] Y.H. Jung D.W. Lee J.S. Kim H.S. Mok. NC post-processor for 5-axis milling machine of table-rotating/tilting type[J]. Journal of Materials Processing Technology 130-131 (2002) 641–646.

DOI: 10.1016/s0924-0136(02)00725-2

[6] S. Sakamoto,I. Inasaki. Analysis of generating motion for five-axis machining centers[J]. Trans. Jpn. Soc. Mech. Engr. Ser. C 59 (561) (1993) 1553–1559.

[7] Zhang LiBO, Liu XiaoYun, Zhang RiMin. Analysis and compensation of nonlinear errors in five-axis machining[J].J. Huazhong Univ. of Sci. &. Tech. Vol. 23 No. 2.

[8] O. Remus Tutunea-Fatan, Hsi-Yung Feng. Configuration analysis of five-axis machine tools using a generic kinematic model[J]. International Journal of Machine Tools & Manufacture 44 (2004) 1235–1243.

DOI: 10.1016/j.ijmachtools.2004.03.009

[9] Lei WT, Hsu YY. Accuracy enhancement of five-axis CNC machines through real-time error compensation[J]. International Journal of Machine Tools&Manufacture, 2003, 43: 871–7.

DOI: 10.1016/s0890-6955(03)00089-0
