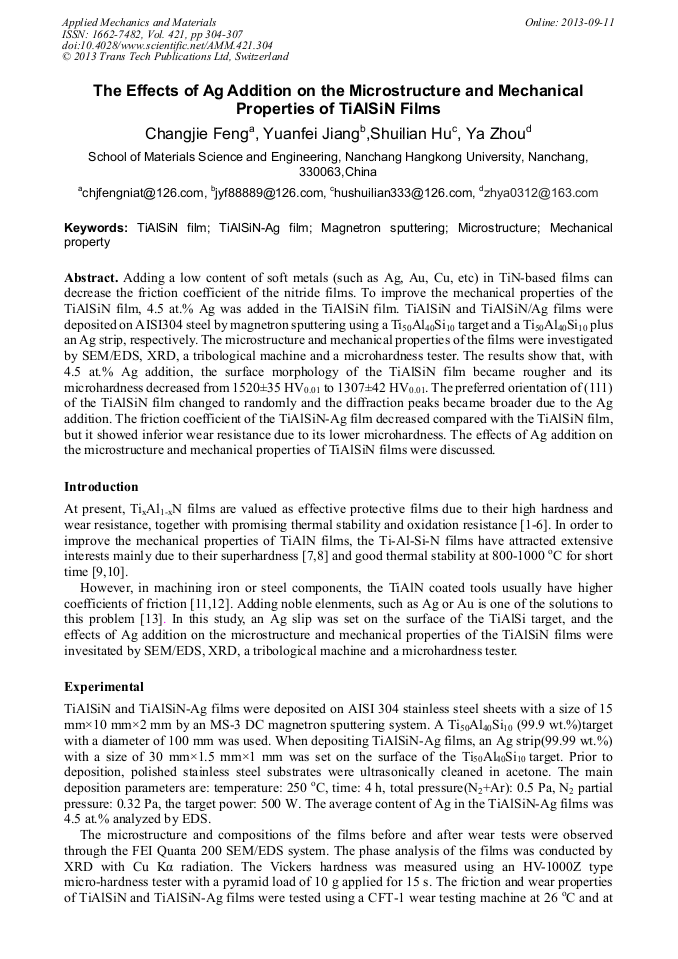

The Effects of Ag Addition on the Microstructure and Mechanical Properties of TiAlSiN Films

Abstract:

Adding a low content of soft metals (such as Ag, Au, Cu, etc) in TiN-based films can decrease the friction coefficient of the nitride films. To improve the mechanical properties of the TiAlSiN film, 4.5 at.% Ag was added in the TiAlSiN film. TiAlSiN and TiAlSiN/Ag films were deposited on AISI304 steel by magnetron sputtering using a Ti₅₀Al₄₀Si₁₀ target and a Ti₅₀Al₄₀Si₁₀ plus an Ag strip, respectively. The microstructure and mechanical properties of the films were investigated by SEM/EDS, XRD, a tribological machine and a microhardness tester. The results show that, with 4.5 at.% Ag addition, the surface morphology of the TiAlSiN film became rougher and its microhardness decreased from 1520±35 HV_0.01 to 1307±42 HV_0.01. The preferred orientation of (111) of the TiAlSiN film changed to randomly and the diffraction peaks became broader due to the Ag addition. The friction coefficient of the TiAlSiN-Ag film decreased compared with the TiAlSiN film, but it showed inferior wear resistance due to its lower microhardness. The effects of Ag addition on the microstructure and mechanical properties of TiAlSiN films were discussed.

• Periodical: Applied Mechanics and Materials (Volume 421)
• Pages: 304-307
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.421.304
• Online since: September 2013
• Authors: Chang Jie Feng, Yuan Fei Jiang, Shui Lian Hu, Ya Zhou
• Keywords: Magnetron Sputtering, Mechanical Property, Microstructure, TiAlSiN Film, TiAlSiN-Ag Film

References

[1] Xing-zhao Ding, C.T. Bui, X.T. Zeng: Surf. Coat. Technol. Vol. 203 (2008), p.680.

[2] J. L. Mo, M.H. Zhu, B. Lei, Y.X. Leng, N. Huang: Wear. Vol. 263 (2007), p.1423.

[3] M. Keunecke, C. Stein, K. Bewilogua, W. Koelker, D. Kassel, H. van den Berg: Surf. Coat. Technol. Vol. 205 (2010), p.1273.

DOI: 10.1016/j.surfcoat.2010.09.023

[4] Harish C. Barshilia, M. Surya Prakash, Anjana Jain, K. S. Rajam: Vacuum. Vol. 77 (2005), P. 169.

[5] Sheng-Yi Lee, Sheng-Chang Wang, Jen-Sue Chen, Jow-Lay Huang: Surf. Coat. Technol. Vol. 202 (2007), p.977.

[6] Harish C. Barshilia, K. Yogesh, K. S. Rajam: Vacuum. Vol. 83 (2008), p.427.

[7] Li Chen, She Q. Wang, Yong Du, Shu Z. Zhou, Tie Gang, Ji C. Fen, Ke K. Chang, Yi W. Li, Xiang Xiong: Surf. Coat. Technol. Vol. 205 (2010), p.582.

[8] Harish C. Barshilia, B. Deepthi, K. S. Rajam: Vacuum. Vol. 81 (2006), p.479.

[9] N. Fukumoto, H. Ezura, T. Suzuki: Surf. Coat. Technol. Vol. 204 (2009), p.902.

[10] Yin-Yu Chang, Sheng-Min Yang: Thin Solid Films. Vol. 518 (2010), p.34.

[11] J. Martan, P. Benes: Thermochimica Acta. Vol. 539 (2012), p.51.

[12] Jaharah A. Ghani, Che Hassan Che Haron, Siti Hartini Hamdan, Ahmad Yasir Md Said, Siti Haryani Tomadi: Ceramics International. Vol. 39 (2013), p.4449.

DOI: 10.1016/j.ceramint.2012.11.038

[13] P. Basnyat, B. Luster, Z. Kertzman, S. Stadler, P. Kohli, Samir Aouadi, J. Xu, S.R. Mishra, O.L. Eryilmaz, A. Erdemir: Surf. Coat. Technol. Vol. 202 (2007), p.1011.

DOI: 10.1016/j.surfcoat.2007.05.088

[14] P.J. Kelly , H. Li , K.A. Whitehead , J. Verran , R.D. Arnell , I. Iordanova: Surf. Coat. Technol. Vol. 204 (2009), p.1137.

[15] Ko. Kitawaki, K. Kaneko, K. Inoke, J.C. Hernandez-Garrido , P.A. Midgley,H. Okuyama, M. Uda, Y. Sakka: Micron, Vol. 40 (2009), p.308.

DOI: 10.1016/j.micron.2008.11.004

[16] P. Basnyat, B. Luster, Z. Kertzman, S. Stadler, P. Kohli, Samir Aouadi, J. Xu, S.R. Mishra, O.L. Eryilmaz , A. Erdemir: Surf. Coat. Technol. Vol. 202 (2007), p.1011.

DOI: 10.1016/j.surfcoat.2007.05.088

[17] J.H. Hsieh, T.H. Yeh, S.Y. Hung, S.Y. Chang , W. Wu, C. Li: Mater. Res. Bull. Vol. 43(2010), p.2196.

[18] C.P. Mulligan, T.A. Blanchet , D. Gall: Surf. Coat. Technol. Vol. 204 (2010), p.1388.
