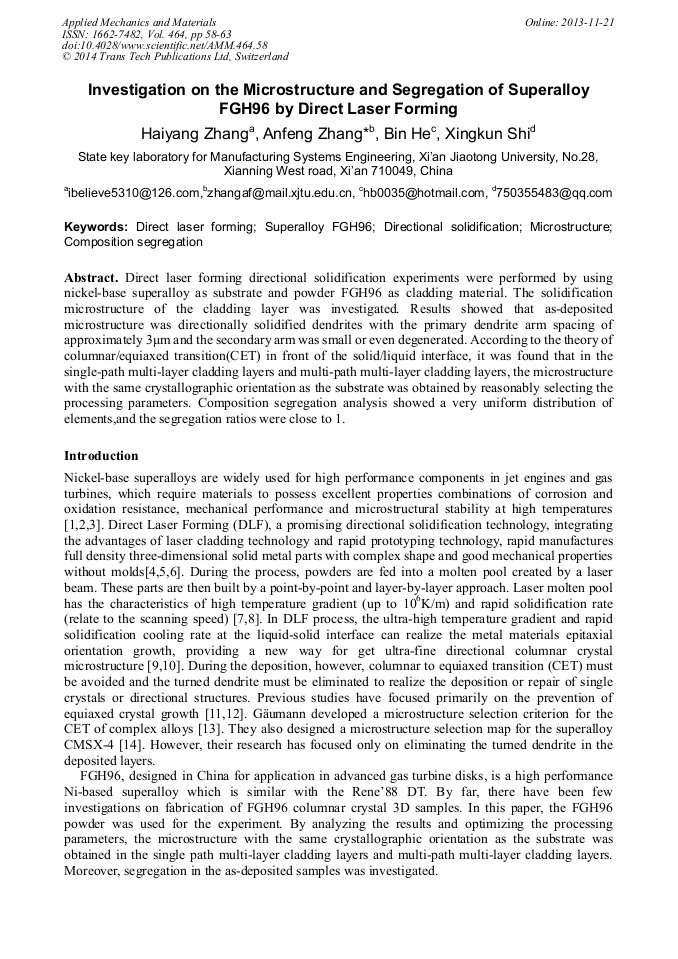

Investigation on the Microstructure and Segregation of Superalloy FGH96 by Direct Laser Forming

Abstract:

Direct laser forming directional solidification experiments were performed by using nickel-base superalloy as substrate and powder FGH96 as cladding material. The solidification microstructure of the cladding layer was investigated. Results showed that as-deposited microstructure was directionally solidified dendrites with the primary dendrite arm spacing of approximately 3μm and the secondary arm was small or even degenerated. According to the theory of columnar/equiaxed transition (CET) in front of the solid/liquid interface, it was found that in the single-path multi-layer cladding layers and multi-path multi-layer cladding layers, the microstructure with the same crystallographic orientation as the substrate was obtained by reasonably selecting the processing parameters. Composition segregation analysis showed a very uniform distribution of elements,and the segregation ratios were close to 1.

• Periodical: Applied Mechanics and Materials (Volume 464)
• Pages: 58-63
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.464.58
• Online since: November 2013
• Authors: Hai Yang Zhang, An Feng Zhang*, Bin He, Xing Kun Shi
• Keywords: Composition Segregation, Direct Laser Forming, Directional Solidification, Microstructure, Superalloy FGH96

References

[1] Elliott A J, Tin S, King W T, et al. Directional solidification of large superalloy castings with radiation and liquid-metal cooling: A comparative assessment[J]. Metallurgical and Materials Transactions a Physical Metallurgy and Materials Science, 2004, 35A (10): 3221-3231.

DOI: 10.1007/s11661-004-0066-z

[2] N. Wang, S. Mokadem, M. Rappaza and W. Kurz. Solidification cracking of superalloy single- and bi-crystals [J]. Acta Materialia, 2004, 52: 3173~3182.

DOI: 10.1016/j.actamat.2004.03.047

[3] Liu L, Huang T W, Zhang J, et al. Microstructure and stress rupture properties of single crystal superalloy CMSX-2 under high thermal gradient directional solidification[J]. Materials Letters, 2007, 61 (1): 227-230.

DOI: 10.1016/j.matlet.2006.04.037

[4] Leslie Gordon. Technique Melts Metal Powder to Build Aero Turbine Blades. Machine Design, June 8, (2010).

[5] J. Choi, B. Dutta, J. Mazumder. Spatial Control of Crystal Texture by Laser DMD Process. Supplemental Proceedings: Volume 1: Fabrication, Materials, Processing and Properties TMS (The Minerals, Metals & Materials Society), 2009, 405-413.

[6] Kathuria Y P. Some aspects of laser surface cladding in the turbine industry [J]. Surface and Coatings Technology, 2000, 132: 262-269.

DOI: 10.1016/s0257-8972(00)00735-0

[7] Sexton L, Lavin S, Byrne G, Kennedy A. Laser cladding of aerospace materials [J]. Journal of Materials Processing Technology, 2002, 122: 63-68.

DOI: 10.1016/s0924-0136(01)01121-9

[8] Zhang Yawei, Zhang Shuquan, Wang Huaming. Microstructure and Mechanical Properties of Directional Rapidly Solidified Ni-Base Superalloy Rene95 by Laser Melting Deposition Manufacturing[J]. Rare Metal Materials and Engineering, 2008, 37(1), 169~172.

[9] Feng liping, Huang weidong, Li Yanmin. Investigation on the microtructure and composition segregation of the laser metal forming directional solidification[J], 2002, 38(5), 501~506.

[10] Jackson K A, Hunt J D, Uhlman D R, et al. On the origin of the equiaxed zone in castings[J]. TSM of Aime, 1966, 236: 149-158.

[11] Feng Liping, Huang weidong, Lin Xin, Yang Hairou. FGH95 superalloy laser metal forming directional solidification [J], The Chinese Journal of Nonferrous Metals 2003, 13(1): 181~187.

[12] Huang fengxiao, jiangzhonghao, liuximing. effects of parameters on mocrostructure of bonding interface formed by overlapping laser cladding[J]. Optics and Precision Engineering, 2011, 19(2): 317-322.

[13] Gäumann M, Henry S, Cleton F, et al. Epitaxial laser metal forming: analysis of microstructur formation[J]. Materials Science and Engineering: A, 1999, 271(1): 232-241.

DOI: 10.1016/s0921-5093(99)00202-6

[14] Gäumann M, Bezencon C, Canalis P, et al. Single-crystal laser deposition of superalloys: processing–microstructure maps[J]. Acta Materialia, 2001, 49(6): 1051-1062.

DOI: 10.1016/s1359-6454(00)00367-0
