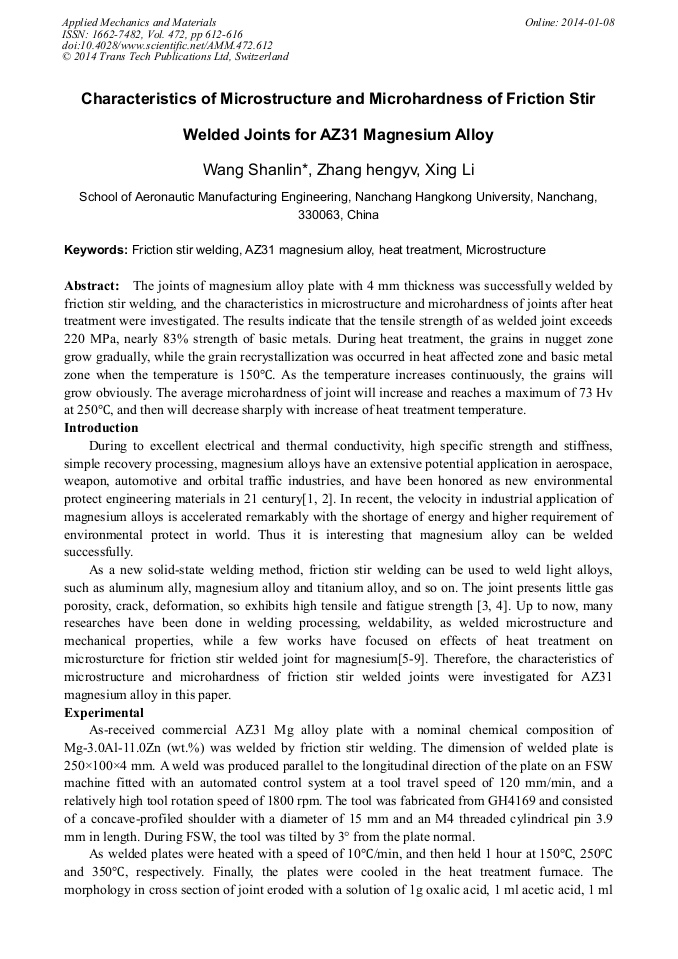

Characteristics of Microstructure and Microhardness of Friction Stir Welded Joints for AZ31 Magnesium Alloy

Abstract:

The joints of magnesium alloy plate with 4 mm thickness was successfully welded by friction stir welding, and the characteristics in microstructure and microhardness of joints after heat treatment were investigated. The results indicate that the tensile strength of as welded joint exceeds 220 MPa, nearly 83% strength of basic metals. During heat treatment, the grains in nugget zone grow gradually, while the grain recrystallization was occurred in heat affected zone and basic metal zone when the temperature is 150°C. As the temperature increases continuously, the grains will grow obviously. The average microhardness of joint will increase and reaches a maximum of 73 Hv at 250°C, and then will decrease sharply with increase of heat treatment temperature.

• Periodical: Applied Mechanics and Materials (Volume 472)
• Pages: 612-616
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.472.612
• Online since: January 2014
• Authors: Shan Lin Wang, Heng Yv Zhang, Xing Li
• Keywords: AZ31 Magnesium Alloy, Friction Stir Welding (FSW), Heat Treatment, Microstructure

References

[1] J.L. Pan. Structure of magnesium alloy and welding [J]. Electric Welding Machine, Vol. 35 (2005), p.1.

[2] B.Z. Meng. Research status and development of magnesium alloys welding [J]. Hot Working Technology, Vol. 41 (2012), p.101.

[3] Y.J. Zhang, C.G. Ding. Microstructure and impact properties of AZ31 magnesium alloy FSW joint [J]. Hot Working Technology, Vol. 38 (2009), p.105.

[4] S. R Yu, X.J. Chen, Z.Q. Huang. Microstructure and mechanical propertries of friction stir welding of AZ31B magnesium alloy added with cerium [J]. Journal of Rare Earths, Vol. 28 (2010), p.316.

DOI: 10.1016/s1002-0721(09)60104-6

[5] G. Padmanaban, V. Balasubramanian. An experimental investigation on friction stir welding of AZ31B magnesium alloy [J]. International Journal of Advance Manufacturing Technology, Vol. 49 (2010), p.111.

DOI: 10.1007/s00170-009-2368-1

[6] L. Commin, M. Dunont, J.E. Masse. Friction stir welding of AZ31 magnesium alloy rolled sheets: influence of processing parameters [J]. Acta Materialia, Vol. 57 (2009), p.326.

DOI: 10.1016/j.actamat.2008.09.011

[7] K.L. Harikrishna, J.J.S. Dilip, K.R. Choudary. Friction stir welding of magnesium alloy ZM21 [J]. Transactions of the Indian institute of metals, Vol. 63 (2010), p.807.

DOI: 10.1007/s12666-010-0123-9

[8] U.F.H.R. Suhuddin, S. Mironov, Y.S. Sato. Grain structure evolution during friction stir welding of AZ31 magnesium alloy [J]. Acta Materialia, Vol. 57 (2009), p.5406.

DOI: 10.1016/j.actamat.2009.07.041

[9] J.C. Li, D.S. Zhou, D.H. Liu. Friction stir welding and successive heat treatment of T-shaped rib-web parts of 2A12 aluminum alloy [J]. Materials Science & Technology, Vol. 19 (2011), p.80.

[10] M.Z. Ge, J.Y. Xiang, Y.K. Zhang. Research on the properties of stress corrosion cracking for tungsten inert-gas arc welded AZ31B magnesium alloy [J]. Materials Review, Vol. 27 (2013), P. 40.

[11] W. Guo, K.S. Wang, F. Wang. Effect of heat treatment on microstructure and mictrohardness of friction stir welding joint for AZ31B magnesium alloy [J]. Materials for Mechanical Engineering, Vol. 33 (2009), p.33.
