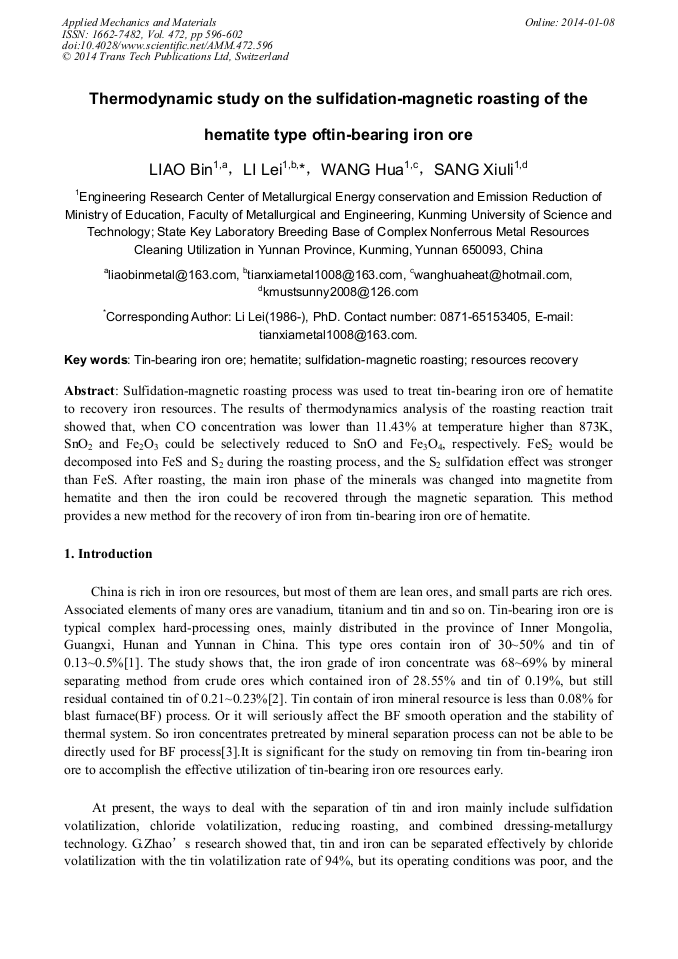

Thermodynamic Study on the Sulfidation-Magnetic Roasting of the Hematite Type of Tin-Bearing Iron Ore

Abstract:

Sulfidation-magnetic roasting process was used to treat tin-bearing iron ore of hematite to recovery iron resources. The results of thermodynamics analysis of the roasting reaction trait showed that, when CO concentration was lower than 11.43% at temperature higher than 873K, SnO2 and Fe2O3 could be selectively reduced to SnO and Fe3O4, respectively. FeS2 would be decomposed into FeS and S2 during the roasting process, and the S2 sulfidation effect was stronger than FeS. After roasting, the main iron phase of the minerals was changed into magnetite from hematite and then the iron could be recovered through the magnetic separation. This method provides a new method for the recovery of iron from tin-bearing iron ore of hematite.

• Periodical: Applied Mechanics and Materials (Volume 472)
• Pages: 596-602
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.472.596
• Online since: January 2014
• Authors: Bin Liao, Lei LI, Hua Wang, Xiu Li Sang
• Keywords: Hematite, Resources Recovery, Sulfidation-Magnetic Roasting, Tin-Bearing Iron Ore

References

[1] L.J. Wang, J.B. Wang, Y.W. Wang, et al. Fluid-melt Inclusions in Fluorite of the Huanggangliang Skarn Iron-tin Deposit and Their Significance to Mineralization[J]. Acta Geologica Sinica，2001，75（2）：204-211. (in Chinese).

DOI: 10.1111/j.1755-6724.2001.tb00522.x

[2] C.J. Xie. Study on the Beneficiation-smelting Process of Skarn Fe-Sn Ores[J]. Huanan Nonferrous Metals，1996，12（6）：13-17，39. (in Chinese).

[3] Y.B. Zhang, L. Y Chen G.H. Li, et al. Mineralogical Features and Comprehensive Utilization Technology of Tin, zinc-bearing Iron Concentrates[J]. Journal of Central South University(Science and Technology), 2011, 42(6): 1501-1508. (in Chinese).

[4] G. Zhao. Applicable Study on Chlorination Volatilization Oxidizing Roasting of Difficultly Separable Tin Middling [D]. Chang Sha: Central South University, 2000, 1-4. (in Chinese).

[5] T. Jiang, Y.B. Zhang, Z.C. Huang, et al. Fundamental Study on Utilization of Tin and Zinc-bearing Iron Concentrate by Selective Chlorination[J]. Trans. Nonferrous Met. Soc. China，2005，15（4）：902-907.

[6] Z.W. Wang, C.Y. Wang, H.M. Lu. Investigation on Removal of Tin from Sn-bearing Iron Concentrates by Reduction Roasting [J]. Mining & Metallurgy, 2005，6(2)：63-66. (in Chinese).

[7] Y.B. Zhang, T. Jiang, G.H. Li, et al. Tin and Zinc Separation from Tin, Zinc Bearing Complex Iron Ores by Selective Reduction Process [J]. Ironmaking & Steelmaking, 2011, 38(8): 617-619.

DOI: 10.1179/1743281211y.0000000036

[8] M. Jiang, T.C. Sun, X.M. Qin, et al. Study on Removing Arsenic and Tin from As-Sn Bearing Iron Concentrates by Direct Reduction Roasting of Coal [J]. Mining and Metallurgical Engineering, 2011，31（2）：86-89. (in Chinese).

[9] P. Ning, P. Bing, Y.C. Li. Recovery of Iron from Zinc Calcines by Reduction Roasting and Magnetic Separation[J]. Minerals Engineering，2012，35：57-60.

DOI: 10.1016/j.mineng.2012.05.014

[10] Z.J. Qiu, L. Li, H. Wang, et al. Reaction Characteristics Study on the Removal of Tin from Tin-bearing Iron Concentrates by Sulfidation Roasting[J]. The Chinese Journal of Process Engineering, 2012, 12(6): 86-90. (in Chinese).

[11] L.Y. Chen. Foundation Study on Separating Tin and Iron from Tin-bearing Iron Ores with Reduction Roasting[D]. Chang Sha: Central South University, 2010. 8-9. (in Chinese).

[12] R.J. Liao, X.H. Liu, S.G. Zhang. Mineral Phase and Occurrence Status of Tin Minerals in Huangshaping Skarn Rock Type Lead-Zinc Polymetallic Ores[J]. Conservation and utilization of mineral resources, 2010, 2, 36-40. (in Chinese).

[13] X.C. Song. Tin Metallurgy [M]. Beijing: Metallurgical Industry Press, 2011. 135-138. (in Chinese).

[14] S. Cahcn, N. David, J.M. Fiorani, et al. Thermodynamic Modeling of the O-Sn System[J]. Thermochimica Acta，2003，403(2)：275-285.

[15] Y.B. Zhang, G.H. Li, T. Jiang, et al. Reduction Behavior of Tin-bearing Iron Concentrate Pellets Using Diverse Coals as Reducers [J]. International Journal of Mineral Processing, 2012, 110-111(18): 109-116.

DOI: 10.1016/j.minpro.2012.04.003

[16] Y.B. Zhang, Z.C. Huang, T. Jiang, et al. Researches on New Process of Comprehensive Utilization of Complex Tin, Zinc-bearing Iron Concentrate Pellets (∏) [J]. Gui Yang: The Tenth National Academic Conference of Ironmaking raw，2007. (in Chinese).
