Thermal Fatigue Analysis of HSK Shrink Toolholder

Abstract:

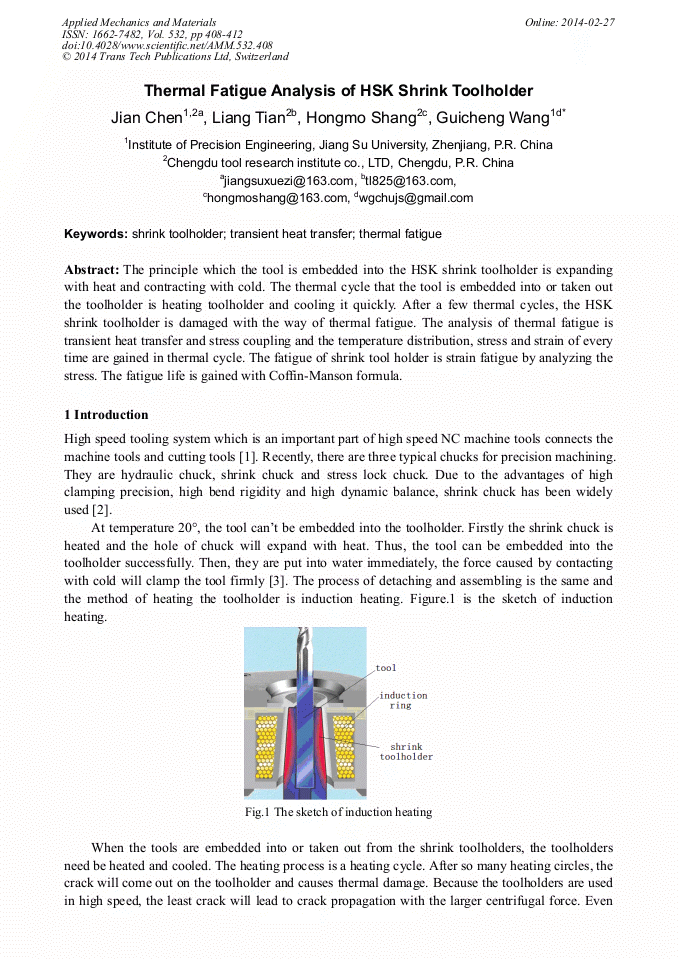

The principle which the tool is embedded into the HSK shrink toolholder is expanding with heat and contracting with cold. The thermal cycle that the tool is embedded into or taken out the toolholder is heating toolholder and cooling it quickly. After a few thermal cycles, the HSK shrink toolholder is damaged with the way of thermal fatigue. The analysis of thermal fatigue is transient heat transfer and stress coupling and the temperature distributionstress and strain of every time are gained in thermal cycle. The fatigue of shrink tool holder is strain fatigue by analyzing the stress. The fatigue life is gained with Coffin-Manson formula.
