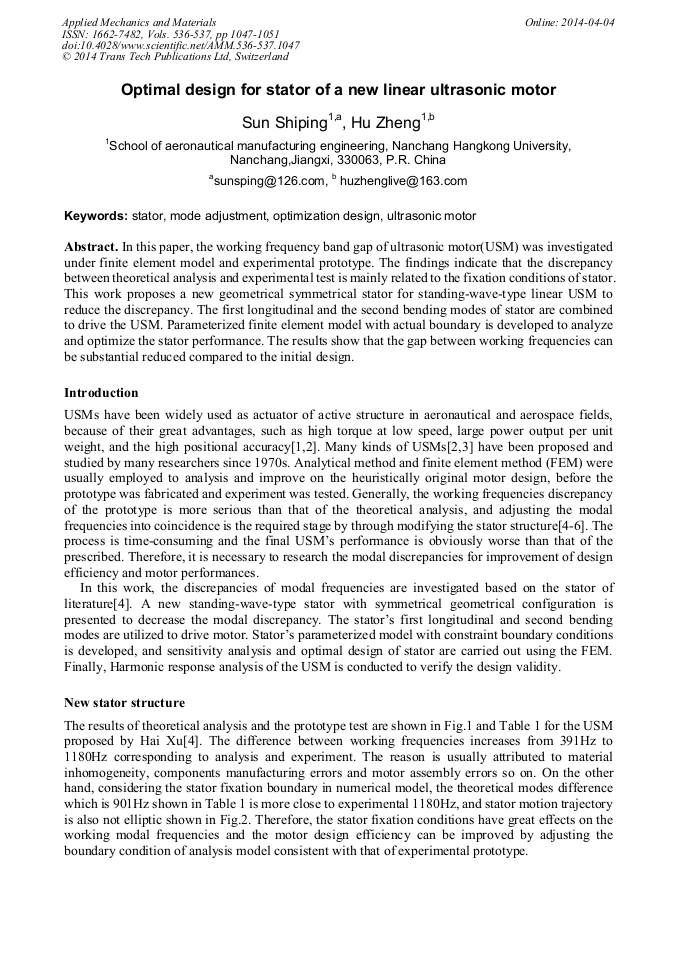

Optimal Design for Stator of a New Linear Ultrasonic Motor

Abstract:

In this paper, the working frequency band gap of ultrasonic motor (USM) was investigated under finite element model and experimental prototype. The findings indicate that the discrepancy between theoretical analysis and experimental test is mainly related to the fixation conditions of stator. This work proposes a new geometrical symmetrical stator for standing-wave-type linear USM to reduce the discrepancy. The first longitudinal and the second bending modes of stator are combined to drive the USM. Parameterized finite element model with actual boundary is developed to analyze and optimize the stator performance. The results show that the gap between working frequencies can be substantial reduced compared to the initial design.

• Periodical: Applied Mechanics and Materials (Volumes 536-537)
• Pages: 1047-1051
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.536-537.1047
• Online since: April 2014
• Authors: Shi Ping Sun*, Zheng Hu
• Keywords: Mode Adjustment, Optimization Design, Stator, Ultrasonic Motor

References

[1] K. Uchino: Smart Mater. Struct. Vol. 7(1998), pp.273-285.

[2] C. Zhao: Ultrasonic motor. (Science Press. Beijing, 2011).

[3] T. Hemsel, J. Wallaschek: Ultrasonics Vol. 38(2000), pp.37-40.

[4] H. Xu, C. Zhao: Journal of vibration and shock Vol. 26(2007), pp.100-102. (in Chinese).

[5] J.S. Rho, C.H. Lee, H.K. Jung: International Journal of Applied Electromagnetic and Mechanics Vol. 25 (2007), pp.699-704.

[6] Y. Shi, C. Zhao: Ultrasonics Vol. 51(2011), pp.397-404.

[7] R.J. Allemang, D.L. Brown: Proceedings of the 1st International Modal Analysis Conference, Orlando Florida, America (1982).
