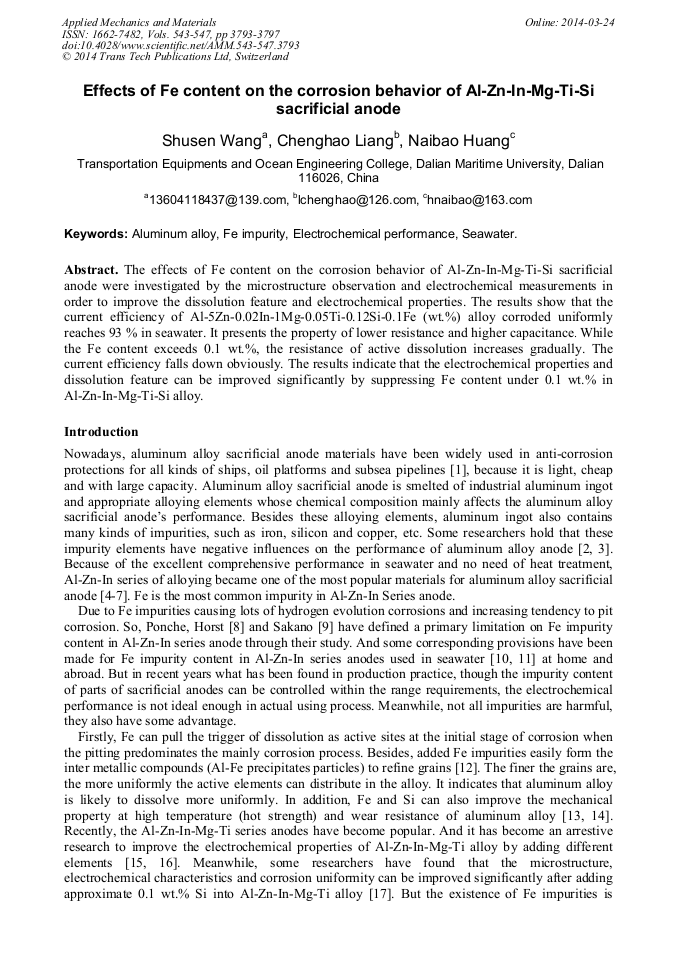

Effects of Fe Content on the Corrosion Behavior of Al-Zn-In-Mg-Ti-Si Sacrificial Anode

Abstract:

The effects of Fe content on the corrosion behavior of Al-Zn-In-Mg-Ti-Si sacrificial anode were investigated by the microstructure observation and electrochemical measurements in order to improve the dissolution feature and electrochemical properties. The results show that the current efficiency of Al-5Zn-0.02In-1Mg-0.05Ti-0.12Si-0.1Fe (wt.%) alloy corroded uniformly reaches 93 % in seawater. It presents the property of lower resistance and higher capacitance. While the Fe content exceeds 0.1 wt.%, the resistance of active dissolution increases gradually. The current efficiency falls down obviously. The results indicate that the electrochemical properties and dissolution feature can be improved significantly by suppressing Fe content under 0.1 wt.% in Al-Zn-In-Mg-Ti-Si alloy.

• Periodical: Applied Mechanics and Materials (Volumes 543-547)
• Pages: 3793-3797
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.543-547.3793
• Online since: March 2014
• Authors: Shu Sen Wang*, Cheng Hao Liang, Nai Bao Huang
• Keywords: Aluminium Alloy, Electrochemical Performance, Fe Impurity, Seawater

References

[1] J. Xu and W. Yao, Current distribution in reinforced concrete cathodic protection system with conductive mortar overlay anode, Constr. Build. Mater. 23 (2009) 2220-2226.

DOI: 10.1016/j.conbuildmat.2008.12.002

[2] J.C. Norris, J.D. Scantlebury, M.R. Alexander, C.J. Blomfield and R.F. Crundwell, Quantitative analysis of indium and iron at the surface of a commercial Al-Zn-In sacrificial anode, Surf. Int. Anal. 30 (2000) 170-175.

DOI: 10.1002/1096-9918(200008)30:1<170::aid-sia733>3.0.co;2-w

[3] A.R. Despic, R.M. Stevanovic and A.M. Vorkapice, A new method of obtaining electrochemically active aluminum, in 35th ISE Meeting, CA, University of Berkely, 1984, pp. A2-19.

[4] S.M.A. Shibli, V.S. Gireesh and S. George, Surface catalysis based on ruthenium dioxide for effective activation of aluminum sacrificial anodes, Corros. Sci. 46 (2004) 819-830.

DOI: 10.1016/s0010-938x(03)00038-6

[5] A.G. Munoz, S.B. Saidman and J.B. Bessone, Corrosion of an Al-Zn-In alloy in chloride media, Corros. Sci. 44 (2002) 2171-2182.

DOI: 10.1016/s0010-938x(02)00042-2

[6] I. Gurrappa, Cathodic protection of cooling water systems and selection of appropriate materials, J. Mater. Process. Tech. 166 (2005) 256-267.

DOI: 10.1016/j.jmatprotec.2004.09.074

[7] J.B. Bessone, D.O. Flamini, Comprehensive model for the activation mechanism of Al-Zn alloys produced by indium, Corros. Sci. 47 (2005) 95-105.

DOI: 10.1016/j.corsci.2004.05.002

[8] B.M. Ponchel and R. Horst, Performance of Al-Zn-Sn alloy anodes in seawater service, Mater. Prot. 7 (1968) 38-41.

[9] T. Sakano, K. Toda and M. Hanada, Tests on the effects of indium for high performance aluminum anodes, Mater. Prot. 5 (1966) 45-50.

[10] GB/T 4948-2002, Sacrificial Anode of Al-Zn-In series alloy, China Standard Press, Beijing, (2002).

[11] Det Norske Veritas, Cathodic Protection Desigh, Norway, RP-B401, 2010, section 11 and 12.

[12] X.C. Li, Aluminum alloy material organization and metallographic mapping, BeiJing, (2010).

[13] G.S. Fu, J.X. Kang, The study on the effects and silicon in commerical purity aluminium, Special Casting & Nonferrous Alloys, 1 (1999) 29-32.

[14] K. Li, L. Ma, Y.G. Yan, J.H. Wu and G.Z. Chen, Study of low voltage sacrificial anode materials, J. Mater. Prot. 4 (2010) 95-97.

[15] W. Xiong, G.T. Qi, X.P. Guo, Z.L. Lu, The effect of tellurium on the Al-Zn-In anod, Electrochem. Soc. 158 (2011) 48-54.

[16] J.L. Ma, J.B. Wen, The effects of lanthanum on microstructure and electrochemical properties of Al-Zn-In based sacrificial anode alloys, Corros. Sci. 51 (2009) 2115-2119.

DOI: 10.1016/j.corsci.2009.05.039

[17] J. Wen, J. He, X. Lu, Influence of silicon on the corrosion behaviour of Al-Zn-In-Mg-Ti sacrificial anode, Corros. Sci. 53 (2011) 3861-3865.

DOI: 10.1016/j.corsci.2011.07.039

[18] T.T. Zhao, W. Ran, G.T. Qi, Analysis of Loss in Current Efficiency of Aluminum Alloy Sacrificial Anode in Aqueous Sodium Chloride, J. Mater. Prot. 40 (2007) 58-60.

[19] Y.L. Zhu, Y.N. Zhan, G.T. Qi, B. Liu, Effect of heat treatment on electrochemical performance of aluminium alloy sacrificial anode, The Chinese Journal of Nonferrous Metals, 16 (2006) 1300-1305.

[20] C.B. Breslin, W.M. Carroll, The electrochemical behaviour of aluminium activated by gallium in aqueous electrolytes, Corros. Sci. 33 (1992) 1735-1746.

DOI: 10.1016/0010-938x(92)90005-n

[21] F. P. Ijsseling, General Guidelines for Cormsion Testing of Materials for Marine APPlieations. Br, J. Corros. J. 24 (1989) 55-78.

[22] S. B. Saidman, S. G. Garcia and J. B. Bessone, Electrochemical behaviour of Al-In Alloys in chloride solutions, J. J. Appl. Electrochem. 25 (1995) 252-258.

DOI: 10.1007/bf00262964
