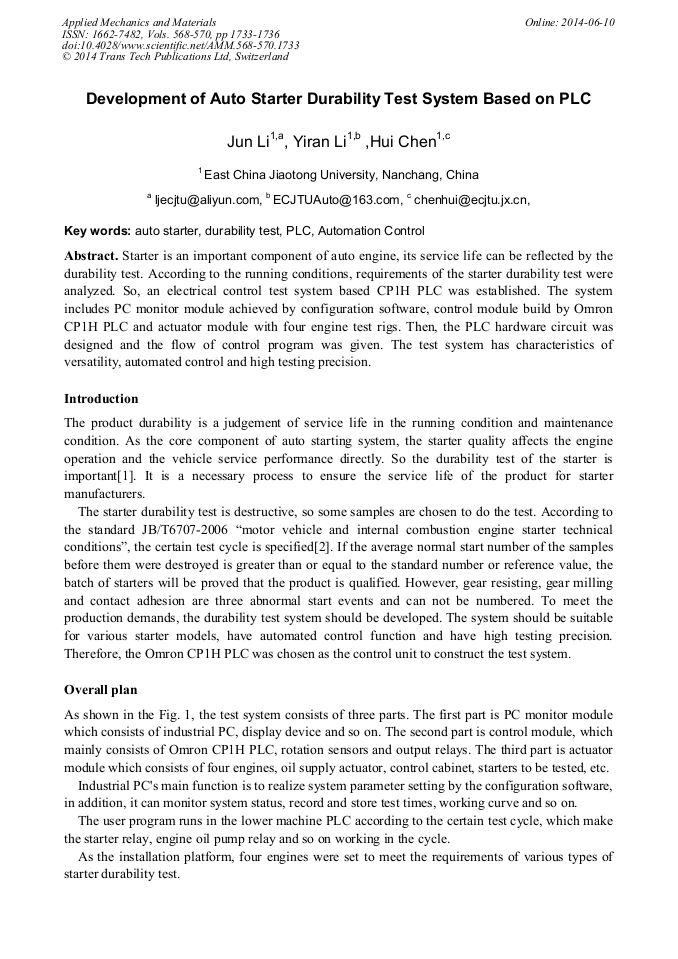

Development of Auto Starter Durability Test System Based on PLC

Abstract:

Starter is an important component of auto engine, its service life can be reflected by the durability test. According to the running conditions, requirements of the starter durability test were analyzed. So, an electrical control test system based CP1H PLC was established. The system includes PC monitor module achieved by configuration software, control module build by Omron CP1H PLC and actuator module with four engine test rigs. Then, the PLC hardware circuit was designed and the flow of control program was given. The test system has characteristics of versatility, automated control and high testing precision.

• Periodical: Applied Mechanics and Materials (Volumes 568-570)
• Pages: 1733-1736
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.568-570.1733
• Online since: June 2014
• Authors: Jun Li*, Yi Ran Li, Hui Chen
• Keywords: Auto Starter, Automation Control, Durability Test, PLC

References

[1] Zongfa Zhang: Auto starter performance test system design. Master Degree Thesis of Northeastern University. (2010). In Chinese.

[2] Industry standard of China: JB/T6707-2006 Vehicle and the Internal Combustion Engine Starter Technical Conditions,. (2006). In Chinese.

[3] Omron Company. Omron SYSMAC CP Series CP1H CPU Unit Programming Manual. 2012. 6.

[4] Rirong Yang: Journal of Jingmen Technical College. Vol. 23, No. 6 (2008), pp.31-33. In Chinese.

[5] Yang Liu, Hong Qu, Xiangbing Wang, etc.: Journal of Wuhan Electric Power Technical College. Vol. 7, No. 2 (2009), pp.47-49. In Chinese.
