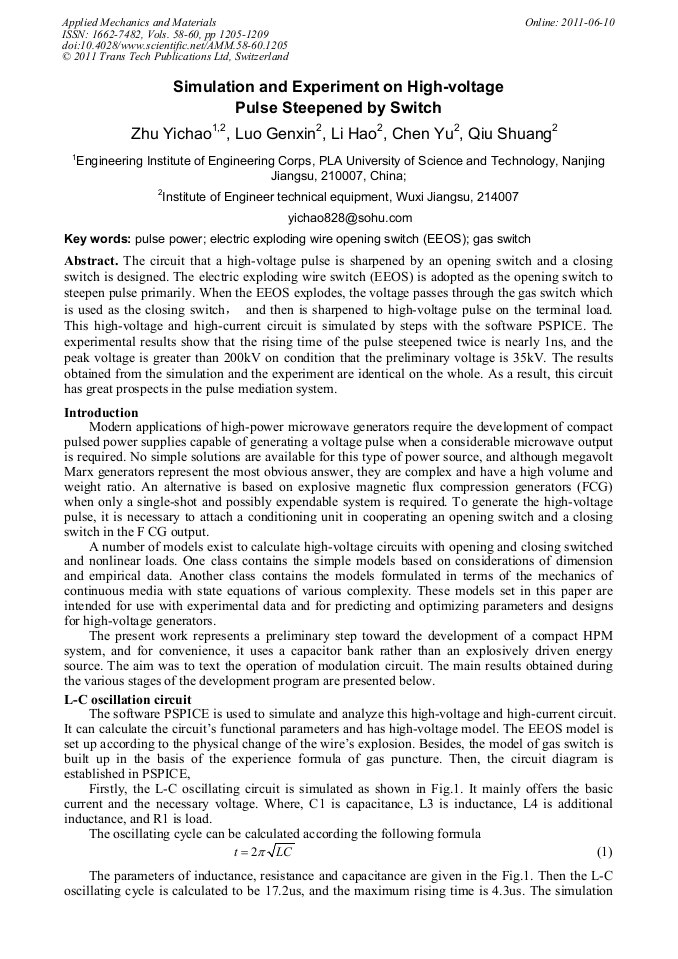

Simulation and Experiment on High-Voltage Pulse Steepened by Switch

Abstract:

The circuit that a high-voltage pulse is sharpened by an opening switch and a closing switch is designed. The electric exploding wire switch (EEOS) is adopted as the opening switch to steepen pulse primarily. When the EEOS explodes, the voltage passes through the gas switch which is used as the closing switch， and then is sharpened to high-voltage pulse on the terminal load. This high-voltage and high-current circuit is simulated by steps with the software PSPICE. The experimental results show that the rising time of the pulse steepened twice is nearly 1ns, and the peak voltage is greater than 200kV on condition that the preliminary voltage is 35kV. The results obtained from the simulation and the experiment are identical on the whole. As a result, this circuit has great prospects in the pulse mediation system.

• Periodical: Applied Mechanics and Materials (Volumes 58-60)
• Pages: 1205-1209
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.58-60.1205
• Online since: June 2011
• Authors: Yi Chao Zhu, Gen Xin Luo, Li Hao, Yu Chen, Shuang Qiu
• Keywords: Electric Exploding Wire Opening Switch (EEOS), Gas Switch, Pulse Power

References

[1] V. P. Kovalev, V. S. Diyankov, A. I. Kormilitsin, and B. N. Lavrentjev, High-voltage many-pulses genetator with inductive energy store and fuse, in Proc. IEEE 11th Int. Pulsed Power Conf., Baltimore, MD, 1997, pp.1213-1216.

DOI: 10.1109/ppc.1997.674565

[2] B. M. Novac, I. R. Smith, M. C. Enache, and H. R. Stewardson, 2-D modeling of inductively coupled helical flux-compression generators FLUXAR systems, Laser Part Beams, vol. 15, no. 3, pp.397-412.

DOI: 10.1017/s026303460001096x

[3] R. E. Reinovsky, I. R. Lindemuth, J. H. Goforth, R. S. Caird, and C. M. Fowler, High-performance, high-current fuses for flux-compression generator driven inductive store power conditioning applications, in Megagauss Fields and Pulsed Power Systems, V. M. Titov and G. A Shvetsov, eds. New York: Nova, 1990, pp.453-464.

DOI: 10.2172/378770

[4] H. R. Stewardson, B. M. Novac, and I. R. Smith, fast exploding-foil switch techniques for capacitor bank and flux compressor output conditioning, J. Phys. D. Appl. Phys., vol. 28, no. 12, pp.2619-2630, Dec. (1995).

DOI: 10.1088/0022-3727/28/12/034

[5] J. Luo, B. M. Novac, I. R. Smith, and J. Brown, fast and accurate two-dimensional modeling of high-current, high-voltage air-cored transformers, J. Phys. D. Phys., vol. 38, no. 21, pp.955-963, Mar. (2005).

DOI: 10.1088/0022-3727/38/6/028

[6] R. D. Shah, R. J. Cliffe, B. M. Novac, I. R. Smith, and P. Senior, An ultrafast electro-optic probe for 500 kV pulsed voltage measurement, Meas. Sci. Technol., vol. 13, no. 2, pp.226-228, Feb. (2002).

DOI: 10.1088/0957-0233/13/2/314

[7] P. Appelgren. M. Akyuz, M. Elfsberg, A. Larsson, and S. E. Nyholm, Description of a charger and Marx generator system including initial experiments and numerical simulations, in Proc. 2nd Eur. Pulsed-power Symp., Hamburg, Germany, 2004, pp.110-114.

DOI: 10.1109/ppc.2005.300559

[8] T. Hurtig, C. Nylander, P. Appelgren, M. Elfsberb, A. Larsson, and S. E. Nyholm, Initial results from experiments with a reflex triode powered by a Marx generator, in Proc. IEEE 15th Int. Pulsed Power Conf., Monterey, CA, (2005).

DOI: 10.1109/ppc.2005.300559

[9] M. I. Yalandin, Y. G. Shpak, and V. P. Tarakanov, Experimental observation of modulation modes of powerful microwave pulses produced by a 5-nanosecongd width Ka-band backward wave oscillator, in Dig. Tech. Papers Pulsed Power Plasma Sci. Conf., Las Vegas, NV, 2001, pp.544-547.

DOI: 10.1109/ppps.2001.1002153

[10] S. D. Korovin, S. K. Lyubutin, G. A. Mesyats, V. V. Rostov, S.N. Rukin, B.G. Slovikovsky, M. R. Umaskulov, K. A. Sharypov, V. G. Shpak, S. A. Shunailov, and M. I. Yalandin, Generation of 10-GHz subnanosecond microwave pulses in the mode of high peak-And high average power, Tech. Phys. Lett., vol. 30, no. 17, pp.23-32, (2004).

DOI: 10.1134/1.1804575

[11] G. A. Mesyats, S. D. Korovin, V. V. Rostov, V. G. Shpak, and M. I. Yalandin, The RADAN series of compact pulsed power generators and their applications, Proc. IEEE, vol. 92, no. 7, pp.1166-1179, July. (2004).

DOI: 10.1109/jproc.2004.829005

[12] D. M. Grishin, V. P. Gubanov, S. D. Korovin, S. K. Lyubutin, G. A. Mesyats, A. V. Nikiforov, V. V. Rostov, S. N. Rukin, B. G. Slovikovsky, M. R. Ulmaskulov, K. A. Sharypov, V. G. Shpak, S. A. Shunailov, and M. I. Yalandin, High power subnanosecond 38-GHz pulses generated at repetition rate of up to 3. 5 kHz, Pisma, ZhTF, vol. 28, no. 19, pp.24-31, (2002).

DOI: 10.1134/1.1519013

[13] A. A. Eltchaninov, S. D. Korovin, G. A. Mesyats, I. V. Pegel, V. V. Rostov, V. G. Shpak, and M. I. Yalandin, Review of studies of superradiative microwave generation on X-band and Ka-band relativistic BWO, IEEE Trans. Plasma Sci., vol. 32, no. 3, pp.1093-1099, (2004).

DOI: 10.1109/tps.2004.828802
