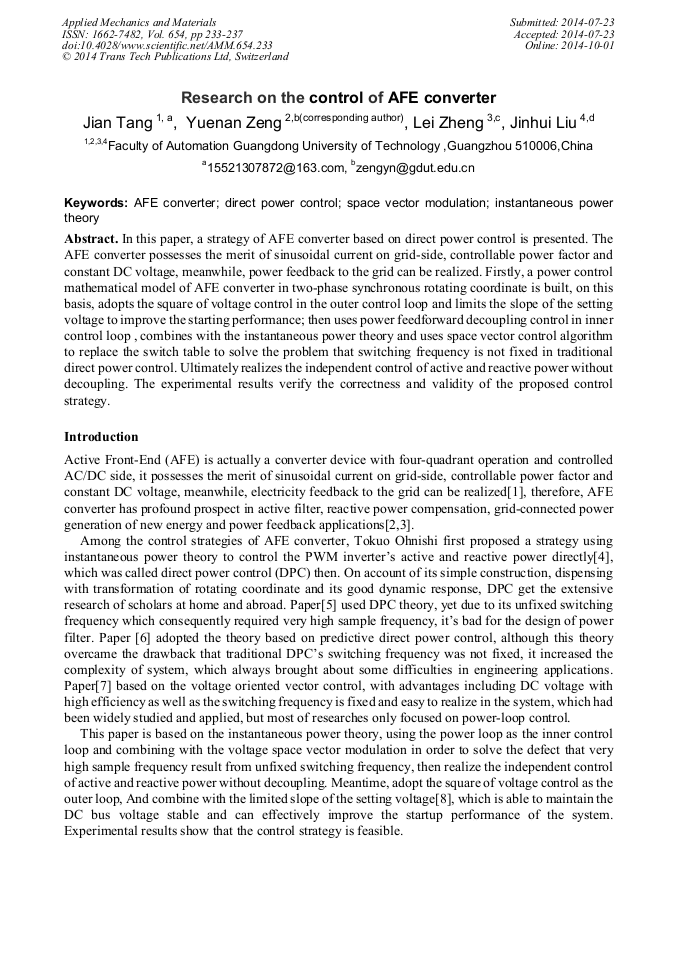

Research on the Control of AFE Converter

Abstract:

In this paper, a strategy of AFE converter based on direct power control is presented. The AFE converter possesses the merit of sinusoidal current on grid-side, controllable power factor and constant DC voltage, meanwhile, power feedback to the grid can be realized. Firstly, a power control mathematical model of AFE converter in two-phase synchronous rotating coordinate is built, on this basis, adopts the square of voltage control in the outer control loop and limits the slope of the setting voltage to improve the starting performance; then uses power feedforward decoupling control in inner control loop , combines with the instantaneous power theory and uses space vector control algorithm to replace the switch table to solve the problem that switching frequency is not fixed in traditional direct power control. Ultimately realizes the independent control of active and reactive power without decoupling. The experimental results verify the correctness and validity of the proposed control strategy.

• Periodical: Applied Mechanics and Materials (Volume 654)
• Pages: 233-237
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.654.233
• Online since: October 2014
• Authors: Jian Tang, Yue Nan Zeng*, Lei Zheng, Jin Hui Liu
• Keywords: AFE Converter, Direct Power Control, Instantaneous Power Theory, Space Vector Modulation

References

[1] Quevedo, D. E, et al, Model Predictive Control of an AFE Rectifier With Dynamic References[J]. Power Electronics, IEEE Transactions on, 2012. 27(7): pp.3128-3136.

DOI: 10.1109/tpel.2011.2179672

[2] Yongsug, S, G. Yuran and R. Dohwan, A Comparative Study on Control Algorithm for Active Front-End Rectifier of Large Motor Drives Under Unbalanced Input[J]. Industry Applications, IEEE Transactions on, 2011. 47(3): pp.1419-1431.

DOI: 10.1109/tia.2011.2126015

[3] Bolognani, S, et al. Efficient conditioning of energy in AFE-based Distributed Generation units. in Control Applications (CCA), 2010 IEEE International Conference on, 2010. Yokohama.

DOI: 10.1109/cca.2010.5611174

[4] Tokuo Ohnishi. Three phase PWM　converter/inverter by means of instantaneous active　and reactive power control　[C]. Proceedings of IEEE Annual Conference of the Industrial Electronics Society, 1991: pp.819-824.

DOI: 10.1109/iecon.1991.239183

[5] Xingwu Yang, Jianguo Jiang. Predictive direct power control for three-phase voltage source PWM rectifiers[J]. Proceedings of the CSEE, 2011, 31(3): pp.34-39, In Chinese.

[6] Cortes, P, et al, Direct Power Control of an AFE Using Predictive Control. Power Electronics[J], IEEE Transactions on, 2008. 23(5): pp.2516-2523.

DOI: 10.1109/tpel.2008.2002065

[7] Bouafia A, Gaubert J P, Krim F. Predictive direct power control of three-phase pulse width modulation (PWM) rectifier using space-vector modulation (SVM)[J]. IEEE Transactions on Power Electronics, 2010, 25(1): pp.228-236.

DOI: 10.1109/tpel.2009.2028731

[8] Han Wang, Jianwen Zhang, Xu Cai. An Improved Control Method of the Dynamic Ability for PWM Rectifier[J]. Proceedings of the CSEE, 2012, 32: pp.194-202, In Chinese.

[9] Zixin Li, Yaohua Li, Ping Wang, et a1. Novel quasi direct power control method for PWM rectifier in stationary frame[J]. Proceedings of the CSEE, 2010, 30(9): pp.47-52, In Chinese.
