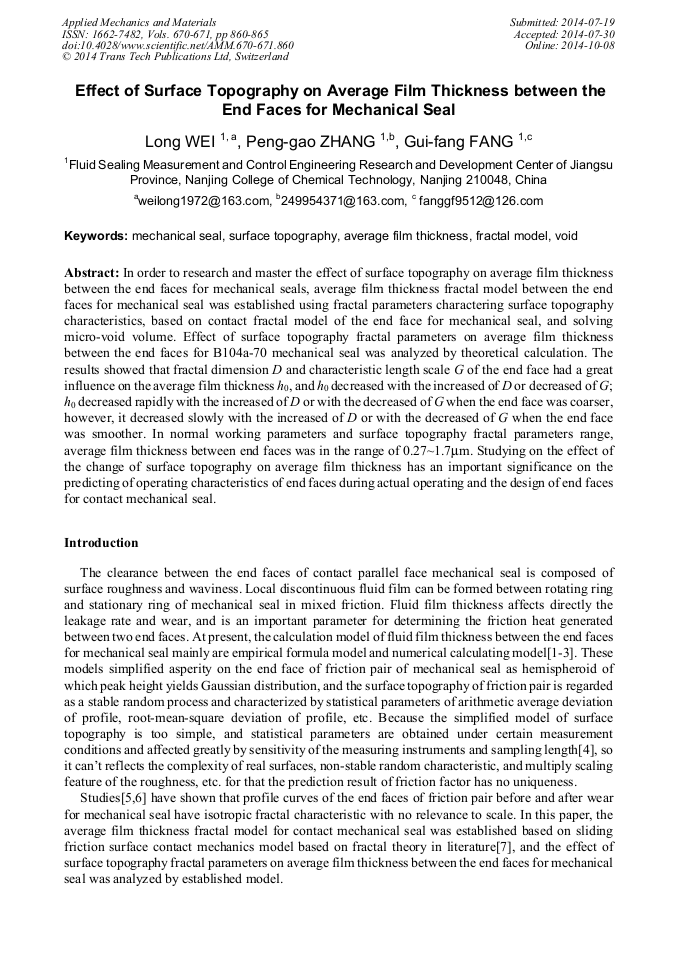

Effect of Surface Topography on Average Film Thickness between the End Faces for Mechanical Seal

Abstract:

In order to research and master the effect of surface topography on average film thickness between the end faces for mechanical seals, average film thickness fractal model between the end faces for mechanical seal was established using fractal parameters charactering surface topography characteristics, based on contact fractal model of the end face for mechanical seal, and solving micro-void volume. Effect of surface topography fractal parameters on average film thickness between the end faces for B104a-70 mechanical seal was analyzed by theoretical calculation. The results showed that fractal dimension D and characteristic length scale G of the end face had a great influence on the average film thickness h₀, and h₀ decreased with the increased of D or decreased of G; h₀ decreased rapidly with the increased of D or with the decreased of G when the end face was coarser, however, it decreased slowly with the increased of D or with the decreased of G when the end face was smoother. In normal working parameters and surface topography fractal parameters range, average film thickness between end faces was in the range of 0.27~1.7μm. Studying on the effect of the change of surface topography on average film thickness has an important significance on the predicting of operating characteristics of end faces during actual operating and the design of end faces for contact mechanical seal.

• Periodical: Applied Mechanics and Materials (Volumes 670-671)
• Pages: 860-865
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.670-671.860
• Online since: October 2014
• Authors: Long Wei, Peng Gao Zhang, Gui Fang Fang
• Keywords: Average Film Thickness, Fractal Model, Mechanical Seal, Surface Topography, Void

References

[1] S. Xiong, R. F. Salant, A dynamic model of a contacting mechanical seal for down-hole tools, ASME Journal of Tribology. 125 (2003) 391-402.

DOI: 10.1115/1.1501085

[2] L. Wei, B.Q. Gu, J.J. Sun, Friction mechanism and friction state of end faces of mechanical seals, Lubrication Engineering. 33 (2008) 38-41. （In Chinese）.

[3] L. Wei, X.Z. Chang, P.G. Zhang, Progress of study on leakage models of contacting mechanical seal end faces, Fluid Machinery. 40 (2012) 36-40. （In Chinese）.

[4] A. Majumdar, B. Bhushan, Role of fractal geometry in roughness characterization and contact mechanics of surfaces, ASME Journal of Tribology. 112 (1990) 205-216.

DOI: 10.1115/1.2920243

[5] L. Wei, X.Z. Chang, P.G. Zhang, Fractal characterization of changing of surface topography of the end face of soft ring in running-in procedure for mechanical seal, China surface engineering. 24(2011) 78-82. （In Chinese）.

[6] L. Wei, B.Q. Gu, P.G. Zhang, Contact characterizations of end faces in mechanical seals running-in, CIESC Journal. 63 (2012) 3202-3207. （In Chinese）.

[7] L. Wei, Q.H. Liu, P.G. Zhang, Sliding friction surface contact mechanics model based on fractal theory, Journal of Mechanical Engineering. 48 (2012) 106-113. （In Chinese）.

DOI: 10.3901/jme.2012.12.106

[8] G.F. Fang, P.G. Zhang, L. Wei, Effect of surface topography on contact property of the end face for mechanical seal, Applied Mechanics and Materials. 419 (2013) 292-298.

DOI: 10.4028/www.scientific.net/amm.419.292

[9] L. Wei, B.Q. Gu, Q.H. Liu, Correction of contact fractal model for friction faces of mechanical seals, CIESC Journal. 64 (2013) 1723-1729. （In Chinese）.
