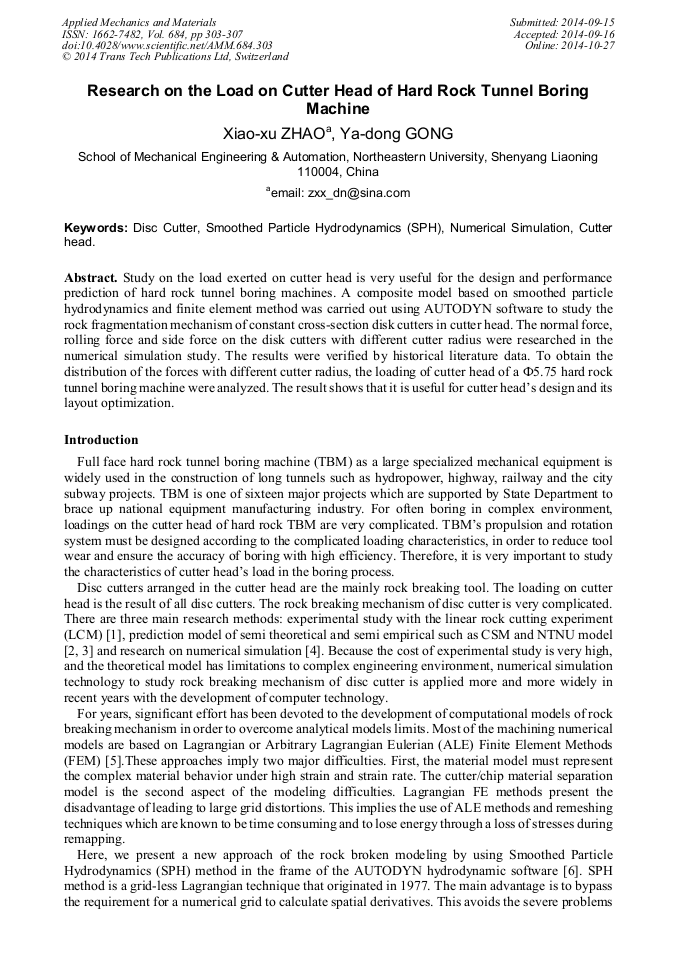

Research on the Load on Cutter Head of Hard Rock Tunnel Boring Machine

Abstract:

Study on the load exerted on cutter head is very useful for the design and performance prediction of hard rock tunnel boring machines. A composite model based on smoothed particle hydrodynamics and finite element method was carried out using AUTODYN software to study the rock fragmentation mechanism of constant cross-section disk cutters in cutter head. The normal force, rolling force and side force on the disk cutters with different cutter radius were researched in the numerical simulation study. The results were verified by historical literature data. To obtain the distribution of the forces with different cutter radius, the loading of cutter head of a Ф5.75 hard rock tunnel boring machine were analyzed. The result shows that it is useful for cutter head’s design and its layout optimization.

• Periodical: Applied Mechanics and Materials (Volume 684)
• Pages: 303-307
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.684.303
• Online since: October 2014
• Authors: Xiao Xu Zhao, Ya Dong Gong
• Keywords: Cutter Head, Disc Cutter, Numerical Simulation, Smoothed Particle Hydrodynamic (SPH)

References

[1] Chang S H, Choi S W, Bae G J, Performance prediction of TBM disc cutting on granitic rock by the linear cutting test, Tunnelling and Underground Space Technology, vol. 21, pp.271-278, March, (2006).

DOI: 10.1016/j.tust.2005.12.131

[2] Rostami J, Study of pressure distribution within the crushed zone in the contact area between rock and disc cutters, " International Journal of Rock Mechanics and Mining Sciences, vol. 57, pp.172-186, (2013).

DOI: 10.1016/j.ijrmms.2012.07.031

[3] Bruland, A., Hard rock tunnel boring, Doctoral Thesis, Norwegian University of Science and Technology, Trondheim, Norway, (1998).

[4] Cho J W, Jeon S, Yu S H, et al. Optimum spacing of TBM disc cutters: A numerical simulation using the three-dimensional dynamic fracturing method, Tunnelling and Underground Space Technology, vo. l25, pp.230-244, March, (2010).

DOI: 10.1016/j.tust.2009.11.007

[5] Chen Jun, Gong Yadong, Li Wei, Liu Yueming, Rock breakage mechanism analysis for cutter of TBM based on digital mockup, China Mechanical Engineering, vol. 24, pp.1847-1853, (2013).

[6] Chiaia B, Fracture mechanisms induced in a brittle material by a hard cutting indenter, International Journal of Solids and structures, vol. 38, pp.7747-7768, (2001).

DOI: 10.1016/s0020-7683(01)00117-2

[7] Das R, Cleary P W, Effect of rock shapes on brittle fracture using Smoothed Particle Hydrodynamics, Theoretical and Applied Fracture Mechanics, vol. 53, pp.47-60, January, (2010).

DOI: 10.1016/j.tafmec.2009.12.004

[8] Hayhurst C J, Clegg R A, Livingstone I H, et al., The Application of SPH techniques in AUTODYN-2DTM to Ballistic Impact Problems, 16th International Symposium on Ballistics. (1996).

[9] Gertsch R, Gertsch L, Rostami J, Disc cutting tests in Colorado Red Granite: Implications for TBM performance prediction, International Journal of rock mechanics and mining sciences, vol. 44, pp.238-246, February, (2007).

DOI: 10.1016/j.ijrmms.2006.07.007
