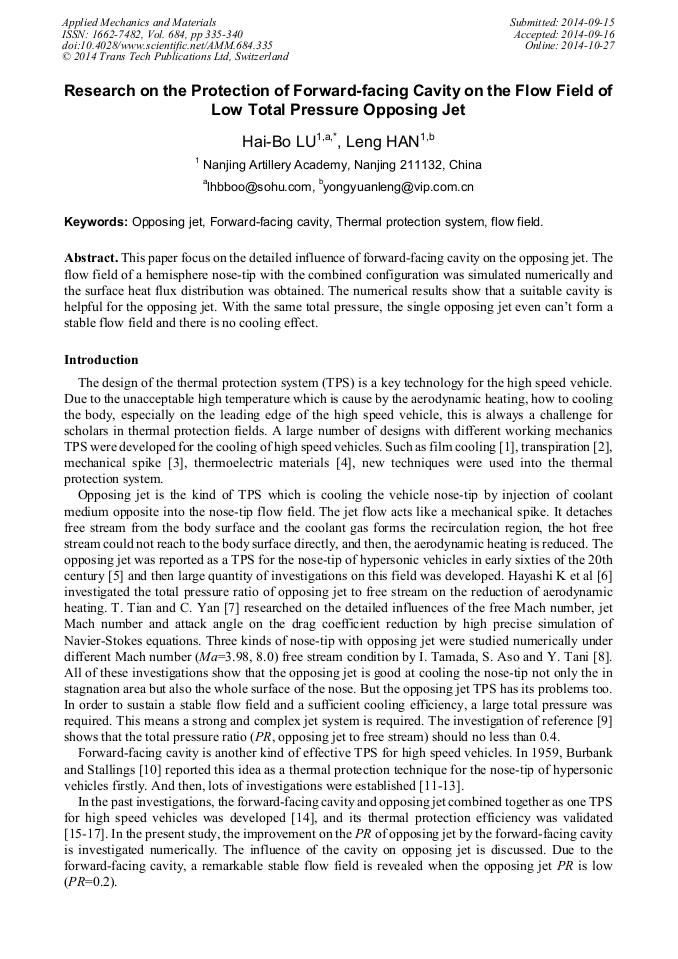

Research on the Protection of Forward-Facing Cavity on the Flow Field of Low Total Pressure Opposing Jet

Article Preview

Abstract:

This paper focus on the detailed influence of forward-facing cavity on the opposing jet. The flow field of a hemisphere nose-tip with the combined configuration was simulated numerically and the surface heat flux distribution was obtained. The numerical results show that a suitable cavity is helpful for the opposing jet. With the same total pressure, the single opposing jet even can’t form a stable flow field and there is no cooling effect.
