Design of an Energy Harvesting Rectenna for Low-Power Wireless Sensor

Abstract:

This paper presents the design of a compact 2.45 GHz microstrip rectenna for wireless sensors’ power supply. In energy harvesting system, the ambient RF energy can be collected by the rectenna and converted to direct current, therefore, it can be applied to the power supply of low-power wireless sensor. Voltage doubling rectifier circuit and T-type microstrip impedance matching network are applied to this rectenna to increase the output voltage and the rectification efficiency. The antenna is fabricatied by using double PCB board (FR4), and it is optimized by ADS to achieve the best performance. The measurement results show that the rectifier can reach the highest conversion efficiency of 78% when the load resistance is 320 Ω and the input power is 18 dBm. It also greatly improves rectenna’s conversion efficiency at lower input power when the input power is-20 dBm, which has great practical value for supplying low power consumption sensors.

You might also be interested in these eBooks

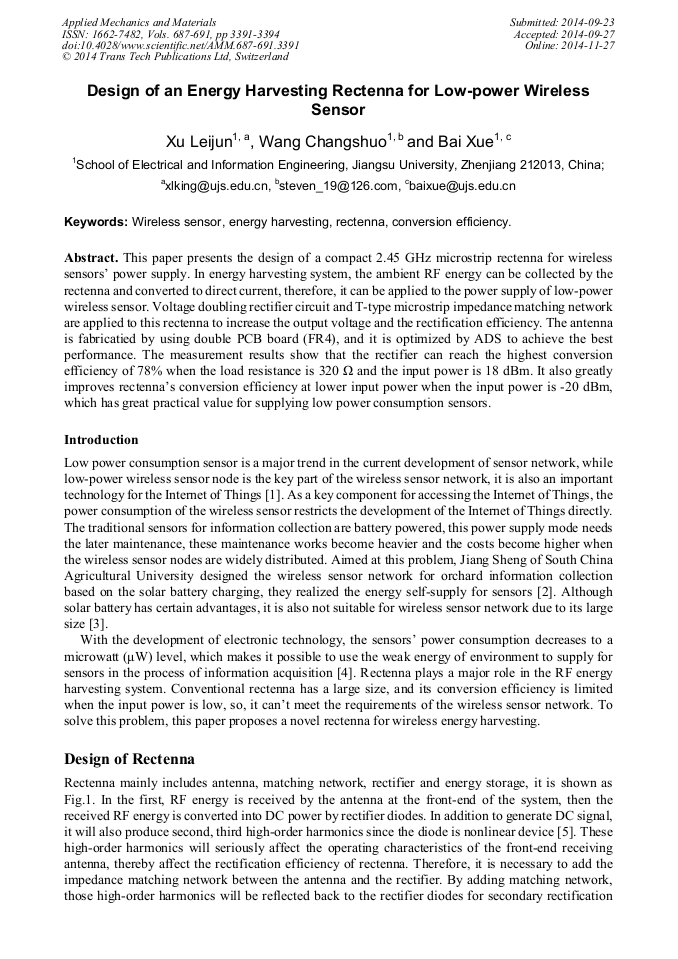

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 687-691)

Pages:

3391-3394

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.687-691.3391

Citation:

Cite this paper

Online since:

November 2014

Authors:

Lei Jun Xu*, Chang Shuo Wang, Xue Bai

Keywords:

Conversion Efficiency, Energy Harvesting, Rectenna, Wireless Sensor

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Z. H. Qian, Y. J. Wang. Internet of Things-oriented Wireless Sensor Networks Review, J. Journal of Electronics & Information Technology, 35 (2013) 216-227.

DOI: 10.3724/sp.j.1146.2012.00876

Google Scholar

[2] S. Jiang, W. X. Wang, D. Z. Sun, et al. Design of energy self-sufficient wireless sensor network node for orchard information acquisition, J. Transactions of the Chinese Society of Agricultural Engineering, (2012) 153-158.

Google Scholar

[3] X. Z. Yang, S. M. Li. High-efficiency Rectenna Design Based on Wireless Sensor Network, J. Computer Engineering. 36 (2010) 106-112.

Google Scholar

[4] Y. Q. Zhang, F. Zhang, Shakhsheer Y, et al. A Batteryless 19µW MICS/ISM-Band Energy Harvesting Body Sensor Node SoC for ExG Applications, J. Solid-State Circuits, 48 (2013) 199-213.

DOI: 10.1109/jssc.2012.2221217

Google Scholar

[5] S. Ji, X. J. Tian. Design of micro-strip rectenna for 2. 45GHz, J. Electronic Design Engineering. 21 (2013) 145-151.

Google Scholar
