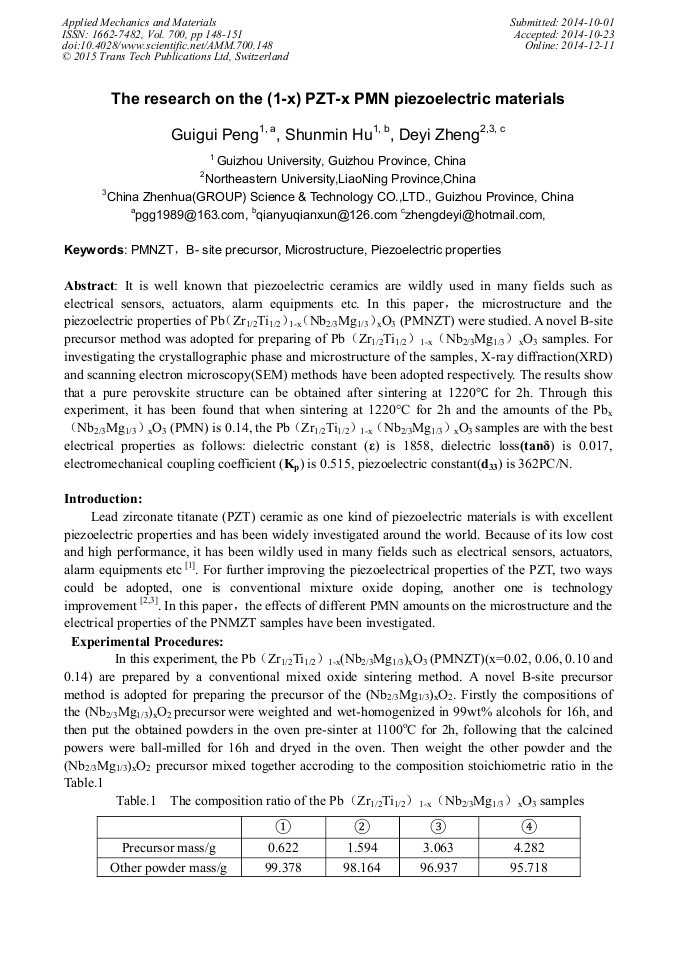

The Research on the (1-x) PZT-x PMN Piezoelectric Materials

Abstract:

It is well known that piezoelectric ceramics are wildly used in many fields such as electrical sensors, actuators, alarm equipments etc. In this paper，the microstructure and the piezoelectric properties of Pb（Zr1/2Ti1/2）1-x（Nb2/3Mg1/3）xO3 (PMNZT) were studied. A novel B-site precursor method was adopted for preparing of Pb（Zr1/2Ti1/2）1-x（Nb2/3Mg1/3）xO3 samples. For investigating the crystallographic phase and microstructure of the samples, X-ray diffraction(XRD) and scanning electron microscopy(SEM) methods have been adopted respectively. The results show that a pure perovskite structure can be obtained after sintering at 1220°C for 2h. Through this experiment, it has been found that when sintering at 1220°C for 2h and the amounts of the Pbx（Nb2/3Mg1/3）xO3 (PMN) is 0.14, the Pb（Zr1/2Ti1/2）1-x（Nb2/3Mg1/3）xO3 samples are with the best electrical properties as follows: dielectric constant (ε) is 1858, dielectric loss(tanδ) is 0.017, electromechanical coupling coefficient (Kp) is 0.515, piezoelectric constant(d33) is 362PC/N

• Periodical: Applied Mechanics and Materials (Volume 700)
• Pages: 148-151
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.700.148
• Online since: December 2014
• Authors: Gui Gui Peng*, Shun Min Hu, De Yi Zheng
• Keywords: B-Site Precursor, Microstructure, Piezoelectric Properties, PMNZT

References

[1] Xiaojuan Li, Quanlu Li, Miaoxia Xie et al. New developments and new applications of the Piezoelectric ceramics at home and abroad. Bulletin of the Chinese Ceramic Society，2006, 25（4）.

[2] A. Moulson, J. Herbert, in: Electroceramics: material, properties, applications, John Wiley & Sons Inc (2003).

[3] D. Zheng, J. Swingler, P. Weaver, in: Current Transients in Ferroelectric Ceramics under Conditions of High Humidity, Sensors & Actuators: A. Physical Vol. 151-1 (2010), p.106.

DOI: 10.1016/j.sna.2009.10.021

[4] D. Zheng, J. Swingler, P. Weaver, in: Voltage – Electrical Conduction Mechanisms in Piezoelectric Ceramics under Harsh Operating Conditions, Sensors & Actuators: A. Physical Vol. 167-1 (2011), p.19.

DOI: 10.1016/j.sna.2010.10.022

[5] C. L. Cheon, H. G. Lee, in: The piezoelectric properties and the stability of the resonant frequency in Mn–Cr Co-doped PSZT ceramics, Journal of Materials Science: Materials in Electronics Vol. 10-2 (1999), p.81.

[6] BOUTARFAIA A. Study of phase transition line of PZT ceramics by X-ray diffraction [J]. Ceram Inter, 1995 , 21(6) : 391-394.

DOI: 10.1016/0272-8842(95)94463-k

[7] Wang xiaohui et al. Journal of Functional materials [J], 1996, 27(3): 261.
