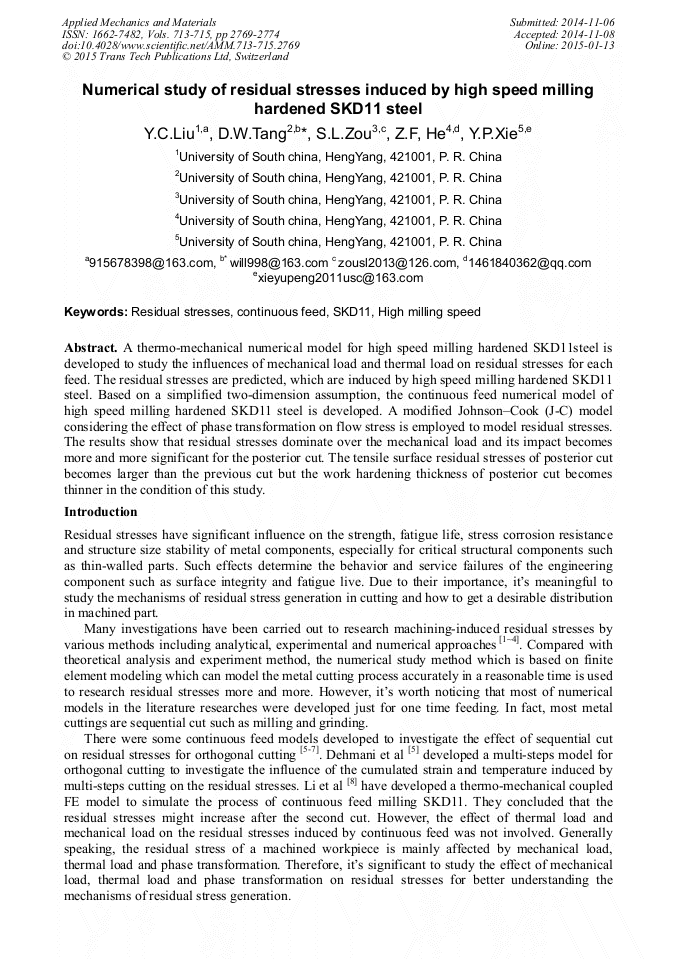

Numerical Study of Residual Stresses Induced by High Speed Milling Hardened SKD11 Steel

Abstract:

A thermo-mechanical numerical model for high speed milling hardened SKD11steel is developed to study the influences of mechanical load and thermal load on residual stresses for each feed. The residual stresses are predicted, which are induced by high speed milling hardened SKD11 steel. Based on a simplified two-dimension assumption, the continuous feed numerical model of high speed milling hardened SKD11 steel is developed. A modified Johnson–Cook (J-C) model considering the effect of phase transformation on flow stress is employed to model residual stresses. The results show that residual stresses dominate over the mechanical load and its impact becomes more and more significant for the posterior cut. The tensile surface residual stresses of posterior cut becomes larger than the previous cut but the work hardening thickness of posterior cut becomes thinner in the condition of this study.

• Periodical: Applied Mechanics and Materials (Volumes 713-715)
• Pages: 2769-2774
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.713-715.2769
• Online since: January 2015
• Authors: Y.C. Liu*, De Weng Tang, S.L. Zou, Z.F. He, Yu Peng Xie
• Keywords: Continuous Feed, High Milling Speed, Residual Stress, skd11

References

[1] Xiaoping. Yang, Richard. Liu C, A new stress-based model of friction behavior in machining and its significant impact on residual stresses computed by finite element method, International Journal of Mechanical Sciences, 42 (2002) 703-23.

DOI: 10.1016/s0020-7403(02)00008-5

[2] J.C. Outeiro, J.C. Pina, R. M'Saoubi, F. Pusavec, I.S. Jawahir, Analysis of residual stresses induced by dry turning of difficult - to - machine materials, CIRP Annals – Manufacturing Technology, 57 (2008) 77-80.

DOI: 10.1016/j.cirp.2008.03.076

[3] D. Umbrello, J.C. Outeiro, R. M'Saoubi, A. D Jayal., I. S. Jawahir, A numerical model incorporating the microstructure alteration for predicting residual stresses in hard machining of AISI 52100 steel, CIRP Annals – Manufacturing Technology, 59 (2010).

DOI: 10.1016/j.cirp.2010.03.061

[4] Jiann-Cherng. Su, Keith A. Young, Kong Ma et al, Modeling of residual stresses in milling, International Journal of Advanced Manufacturing Technology, 65 (2013) 717-733.

[5] C.R. Liu, Y.B. Guo, Finite element analysis of the effect of sequential cuts and tool-chip friction on residual stresses in a machined layer, International Journal of Mechanical Sciences, 42 (2000) 1069 – 86.

DOI: 10.1016/s0020-7403(99)00042-9

[6] J.C. Outeiro, D. Umbrello, R. M'Saoubi, Experimental and numerical modelling of the residual stresses induced in orthogonal cutting of AISI 316L steel, International Journal of Machine Tools & Manufacture, 46 (2006) 1786 – 94.

DOI: 10.1016/j.ijmachtools.2005.11.013

[7] H. Dehmani, F. Salvatore, H. Hamdi, Numerical study of residual stress induced by multi-steps orthogonal cutting, Procedia the International Academy for Production Engineering, 8 (2013) 299-304.

DOI: 10.1016/j.procir.2013.06.106

[8] J. L. Li, L. L. Jing, M. Chen, An FEM study on residual stresses induced by high-speed end-milling of hardened steel SKD11, Journal of Materials Processing Technology, 209 (2009) 4515-4520.

DOI: 10.1016/j.jmatprotec.2008.10.042

[9] D.W. Tang, C.Y. Wang, Y.N. Hu, Y.X. Song, Finite – Element Simulation of Conventional and High-Speed Peripheral Milling of Hardened Mold Steel, Metallurgical and Materials Transactions A, 40 (2009) 3245-57.

DOI: 10.1007/s11661-009-9983-1

[10] D.W. Tang, C.Y. Wang, Y.N. Hu, Y.X. Song, Constitutive equation for hardened SKD11 steel at high temperature and high strain rate using the SHPB technique, Fourth International Conference on Experimental Mechanics, 7522 (2010) 75226B-1.

DOI: 10.1117/12.851262

[11] Xiao Wang, Shubin Lu, Chuanyu Gao, Friction analysis and finite element simulation of high-speed metal cutting, Lubication Engineering, 01 (2007) 129-131.

[12] Dewen Tang, Chengyong Wang, Yingning Hu, Yuexian Song, Finite Element Simulation of Chip Formation during High-Speed Peripheral Milling of Hardened Mold Steel, Key Engineering Materials, 443 (2010) 274-78.

DOI: 10.4028/www.scientific.net/kem.443.274

[13] DEFORM2D, User Manual V 8. 1, Scientific Forming Technologies Corporation, Columbus, OH, USA, (2003).

[14] Zone-Ching Lin, Yau-Yi Lin, C. R. Liu, Effect of thermal load and mechanical load on the residual stress of a machined workpiece, International Journal of Mechanical Sciences, 33(4) (1991) 263-278.

DOI: 10.1016/0020-7403(91)90040-a

[15] K.C. Ee, O.W. Dillon Jr., I.S. Jawahir, Finite element modeling of residual stresses in machining induced by cutting using a tool with finite edge radius, International Journal of Mechanical Sciences, 47 (2005) 1611-1628.

DOI: 10.1016/j.ijmecsci.2005.06.001
