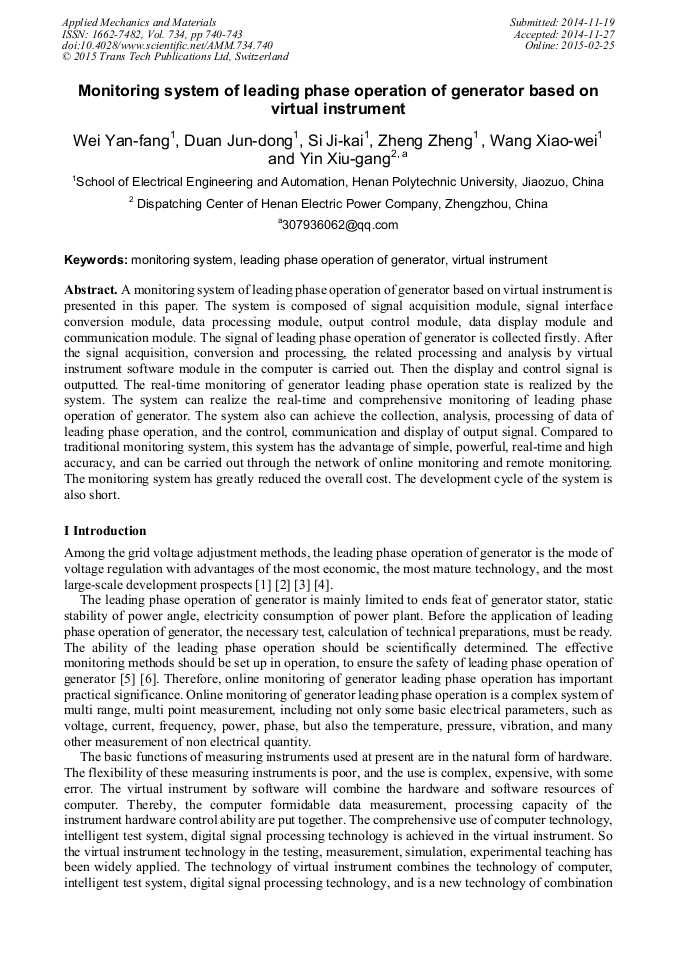

Monitoring System of Leading Phase Operation of Generator Based on Virtual Instrument

Abstract:

A monitoring system of leading phase operation of generator based on virtual instrument is presented in this paper. The system is composed of signal acquisition module, signal interface conversion module, data processing module, output control module, data display module and communication module. The signal of leading phase operation of generator is collected firstly. After the signal acquisition, conversion and processing, the related processing and analysis by virtual instrument software module in the computer is carried out. Then the display and control signal is outputted. The real-time monitoring of generator leading phase operation state is realized by the system. The system can realize the real-time and comprehensive monitoring of leading phase operation of generator. The system also can achieve the collection, analysis, processing of data of leading phase operation, and the control, communication and display of output signal. Compared to traditional monitoring system, this system has the advantage of simple, powerful, real-time and high accuracy, and can be carried out through the network of online monitoring and remote monitoring. The monitoring system has greatly reduced the overall cost. The development cycle of the system is also short.

• Periodical: Applied Mechanics and Materials (Volume 734)
• Pages: 740-743
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.734.740
• Online since: February 2015
• Authors: Yan Fang Wei, Jun Dong Duan, Ji Kai Si, Zheng Zheng, Xiao Wei Wang, Xiu Gang Yin*
• Keywords: Leading Phase Operation of Generator, Monitoring System, Virtual Instrument

References

[1] J.Y. Shi, Y.S. Shi, X.M. Zhao, et al: The new method of determining the capability of leading phase of generator and realizing the on-line monitoring. Proceedings of the CSEE, Vol. 26, No. 11(2006), pp.139-143.

[2] Y. F Wei, Z.N. Wei, Y.Q. Zhang, et al: Progress and development trend on leading phase of generator. Power System Protection and Control, Vol. 40, No. 9(2012), pp.146-154.

[3] X.Y. Lv, Z.J. Bi, J. Zheng, et al: Leading phase operation and voltage regulation of synchronous generators. Applied Mechanics and Materials, Vol. 380-384(2013), pp.3003-3007.

DOI: 10.4028/www.scientific.net/amm.380-384.3003

[4] X.Y. Lv, Z.J. Bi, J. Zheng, et al: Discussion of several issues of leading phase operation of multi-generators. Journal of Hohai University(Natural Sciences), Vol. 40, No. 5(2012), pp.590-596.

[5] C.L. Wang, H.H. Wang, G. Xu: System voltage regulation of power grid based on synchronous generator's leading phase operation. 2010 China International Conference on Electricity Distribution, CICED (2010).

[6] M. Xue, H.P. Zheng, S.Y. Song, et al: The effects of generator in leading phase operation on the system voltage. Applied Mechanics and Materials, Vol. 488(2014), pp.896-900.

DOI: 10.4028/www.scientific.net/amm.488-489.896

[7] C.L. Wang, H.H. Wang: Review of synchronous generator leading-phase operation. Electric Power Automation Equipment, Vol. 32, No. 11(2012), pp.131-135.

[8] C.L. Wang, H.H. Wang, C.M. Xiang, et al: Generator leading phase ability model based on RBF neural network. Transactions of China Electrotechnical Society, Vol. 27, No. 1(2012), pp.124-129.

[9] C.L. Wang, H.H. Wang, G. Xu: Modeling of generator leading phase ability based on back propagation neural network. Power System Technology, Vol. 35, No. 11(2011), pp.136-140.
