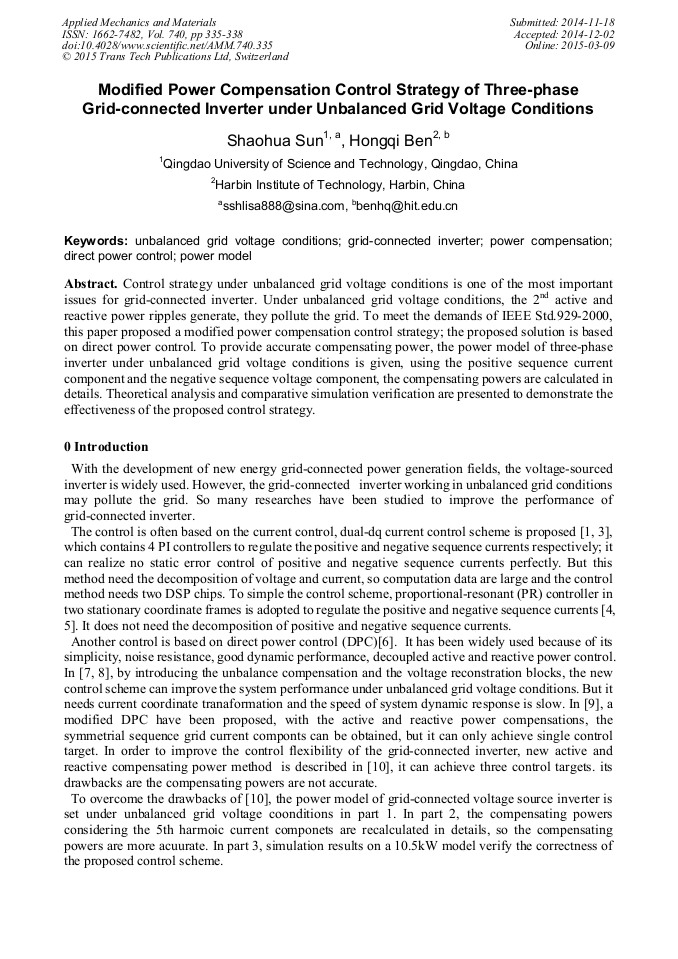

Modified Power Compensation Control Strategy of Three-Phase Grid-Connected Inverter under Unbalanced Grid Voltage Conditions

Abstract:

Control strategy under unbalanced grid voltage conditions is one of the most important issues for grid-connected inverter. Under unbalanced grid voltage conditions, the 2^nd active and reactive power ripples generate, they pollute the grid. To meet the demands of IEEE Std.929-2000, this paper proposed a modified power compensation control strategy; the proposed solution is based on direct power control. To provide accurate compensating power, the power model of three-phase inverter under unbalanced grid voltage conditions is given, using the positive sequence current component and the negative sequence voltage component, the compensating powers are calculated in details. Theoretical analysis and comparative simulation verification are presented to demonstrate the effectiveness of the proposed control strategy.

• Periodical: Applied Mechanics and Materials (Volume 740)
• Pages: 335-338
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.740.335
• Online since: March 2015
• Authors: Shao Hua Sun*, Hong Qi Ben
• Keywords: Direct Power Control, Grid-Connected Inverter, Power Compensation, Power Model, Unbalanced Grid Voltage Conditions

References

[1] Rioual P, Pouliguen H, Louis J. Regulation of a PWM rectifier in the unbalanced network state using a generalized model. IEEE Transactions on Power Electronics, 1996, 11(3): 495-502.

DOI: 10.1109/63.491644

[2] Hong-seok song and Kwanghee Nam. Dual current control scheme for PWM converter under unbalanced input voltage conditions. IEEE Trans. and Electronics, 1999, 46(5): 953-959.

DOI: 10.1109/41.793344

[3] Yin B, Oruganti R, Panda S K, et al. An output power control strategy for a three-phase PWM rectifier under supply conditions. IEEE Transactions on Industrial Electronics, 2008, 55(5): 2140-2151.

DOI: 10.1109/tie.2008.918643

[4] Li Z X, Li Y H, Wang P, et al. control of three-phase boost-type PWM rectifier in stationary frame under unbalanced input voltage. IEEE Transactions on Industrial Electronics, 2010, 25(10): 2521-2530.

DOI: 10.1109/tpel.2010.2049030

[5] Hu Jiabing, He Yikang, Wang Hongsheng, et al. coordinated control of grid and rotor-side converters of doubly fed induction generator under unbalanced network voltage conditions. Proceedings of the CSEE. 2010, 30(9): 97-104(in Chinese).

DOI: 10.1109/supergen.2009.5348139

[6] Wang Jiuhe, Li Huade. A new direct power control strategy for three phase boost type PWM rectifier. Proceedings of the CSEE, 2005, 25(16): 47-52(in Chinese).

[7] Hadian-Amrei S R, Iranmanesh H. novel direct power control for compensation voltage unbalance and load functions in PWM rectifier. ACSE Journal, 2006, 6 (4): 39-45.

[8] Hadian-Amrei S R, Xu Dianguo, Lang Yongqiang. A New direct power control for PWM rectifier. Proceedings of the CSEE, 2007, 27(25): 78-84(in Chinese).

[9] Shang, L., D., Hu, J. Predictive direct power control of grid-connected voltage-sourced converters under unbalanced grid voltage conditions. Int. Conf. on Electrical Machines and Systems, IECMS'09, Tokyo, Japan, 2009: 1-5.

DOI: 10.1109/icems.2009.5382833

[10] Shang, L., D., Hu, J. sliding-mode-based direct power control of grid-connected voltage-sourced inverters under unbalanced grid voltage conditions. IET Power Electron, 2011, 4(5): 570-579.

DOI: 10.1049/iet-pel.2010.0160
